Secondary/Configurable Control Component Views

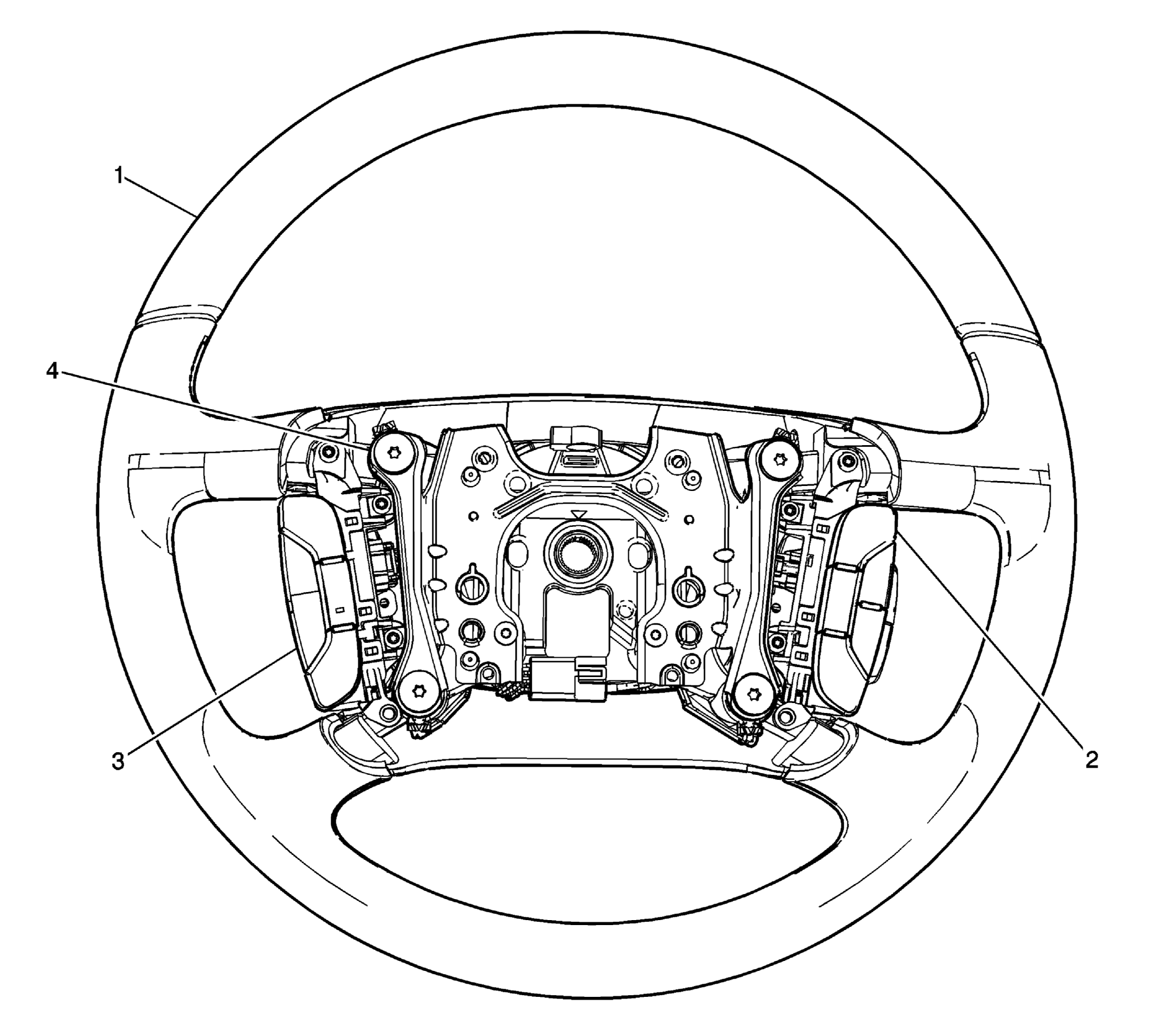

Fig 1: Identifying Steering Wheel Components
GM1653125Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel
2 Steering Wheel Controls - Right
3 Steering Wheel Control - Left
4 Horn Switch
