Communication Interface Module Battery Replacement

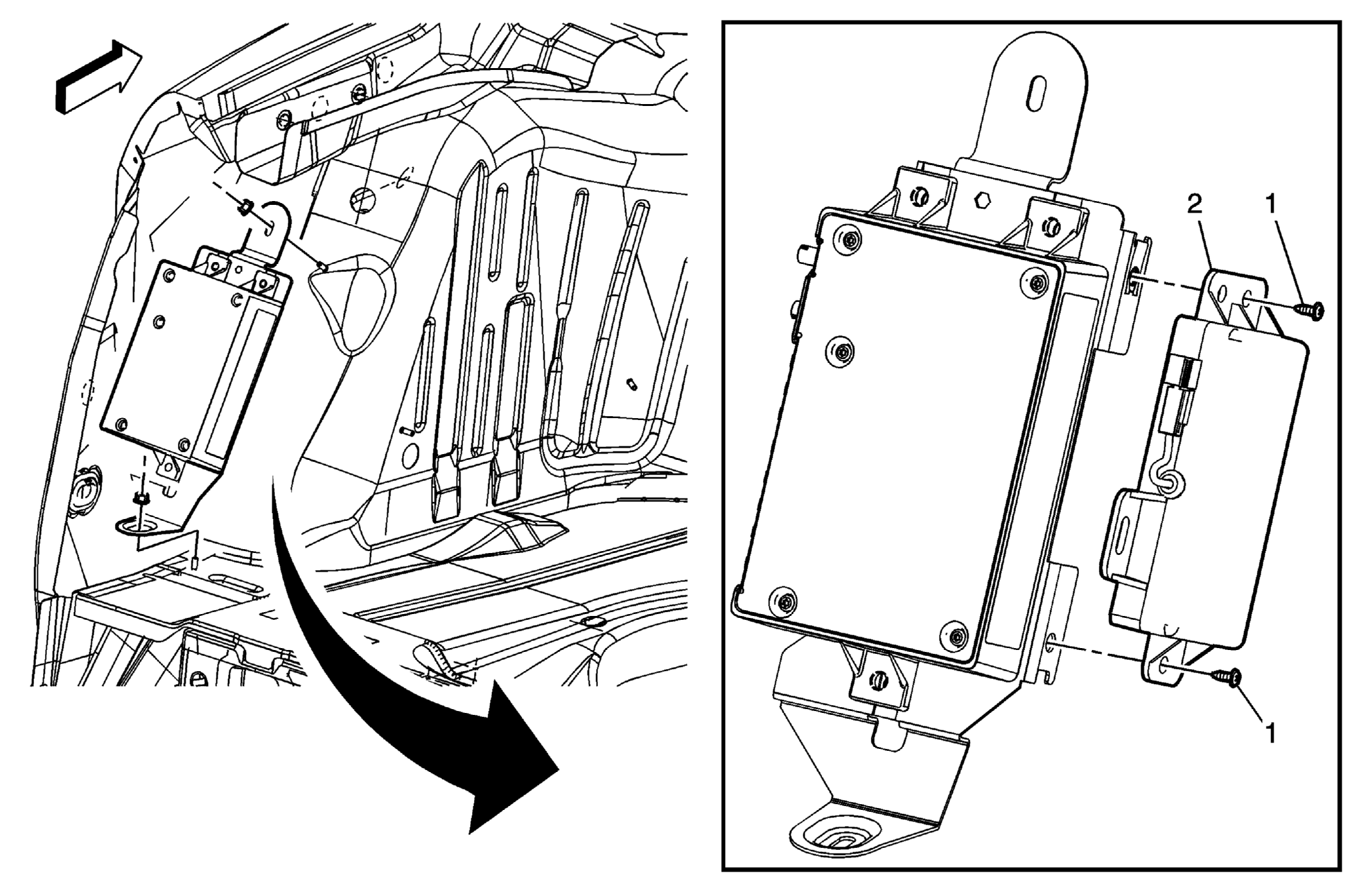

Fig 1: Exploded View Of Communication Interface Module Battery

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
IMPORTANT: The vehicle communication interface module (VCIM) has a specific set of unique numbers that tie the module to each vehicle. These numbers, the 10-digit station identification and the 11-digit electronic serial number, are used by the National Cellular Network and OnStar® to identify the specific vehicle. Because these numbers are tied to the vehicle identification number of the vehicle, you must never exchange these parts with those of another vehicle. IMPORTANT: After replacing the vehicle communication interface module, you must reconfigure the OnStar® system. Failure to reconfigure the system will result in an additional customer visit for repair. In addition, pressing and holding the white dot button on the keypad will NOT reset this version of the OnStar® system. This action will cause a DTC to set. Preliminary Procedures Remove the left rear compartment trim. Refer to Rear Compartment Side Trim Replacement - Left Side . After receiver replacement, configure the OnStar® system. Refer to OnStar Reconfiguration . Program the communication interface module (OnStar®) after replacement. Refer to Control Module References .
1	Communication Interface Module Battery Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Communication Interface Module Battery

Callout

Component Name

IMPORTANT: The vehicle communication interface module (VCIM) has a specific set of unique numbers that tie the module to each vehicle. These numbers, the 10-digit station identification and the 11-digit electronic serial number, are used by the National Cellular Network and OnStar® to identify the specific vehicle. Because these numbers are tied to the vehicle identification number of the vehicle, you must never exchange these parts with those of another vehicle.

IMPORTANT: After replacing the vehicle communication interface module, you must reconfigure the OnStar® system. Failure to reconfigure the system will result in an additional customer visit for repair. In addition, pressing and holding the white dot button on the keypad will NOT reset this version of the OnStar® system. This action will cause a DTC to set.

Preliminary Procedures

Remove the left rear compartment trim. Refer to Rear Compartment Side Trim Replacement - Left Side .
After receiver replacement, configure the OnStar® system. Refer to OnStar Reconfiguration .
Program the communication interface module (OnStar®) after replacement. Refer to Control Module References .

Communication Interface Module Battery Screw (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 2.5 N.m (22 lb in)

Communication Interface Module Battery
