Entertainment/Communication Component Views

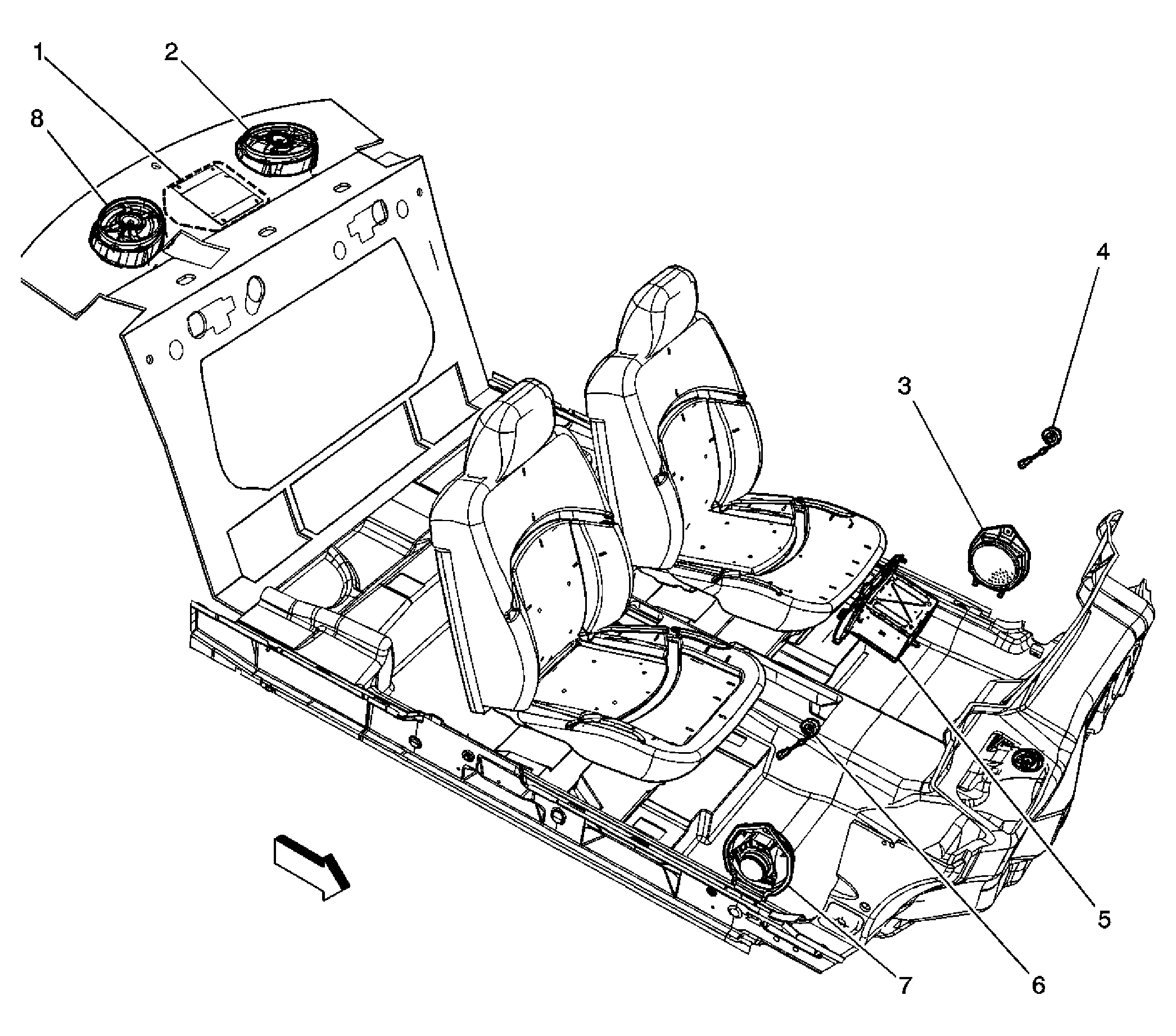

Fig 1: Radio and Speaker Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier (U87, UQ3)
2	Speaker - LR
3	Speaker - LF Door
4	Speaker - LF Tweeter (UQ3)
5	Radio
6	Speaker - RF Tweeter (UQ3)
7	Speaker - RF Door
8	Speaker - RR

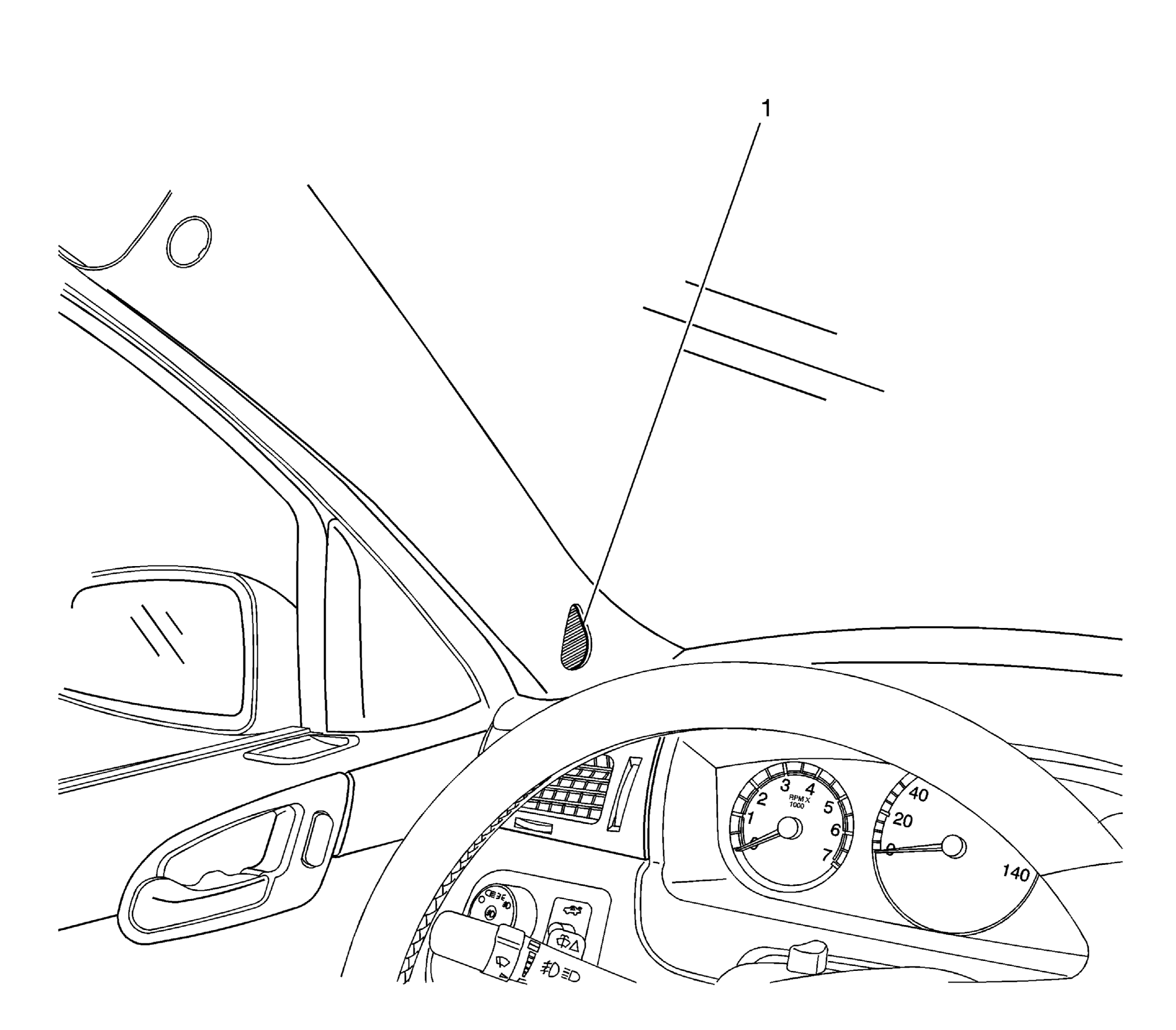

Fig 2: Base of Left A-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LF Tweeter (UQ3)

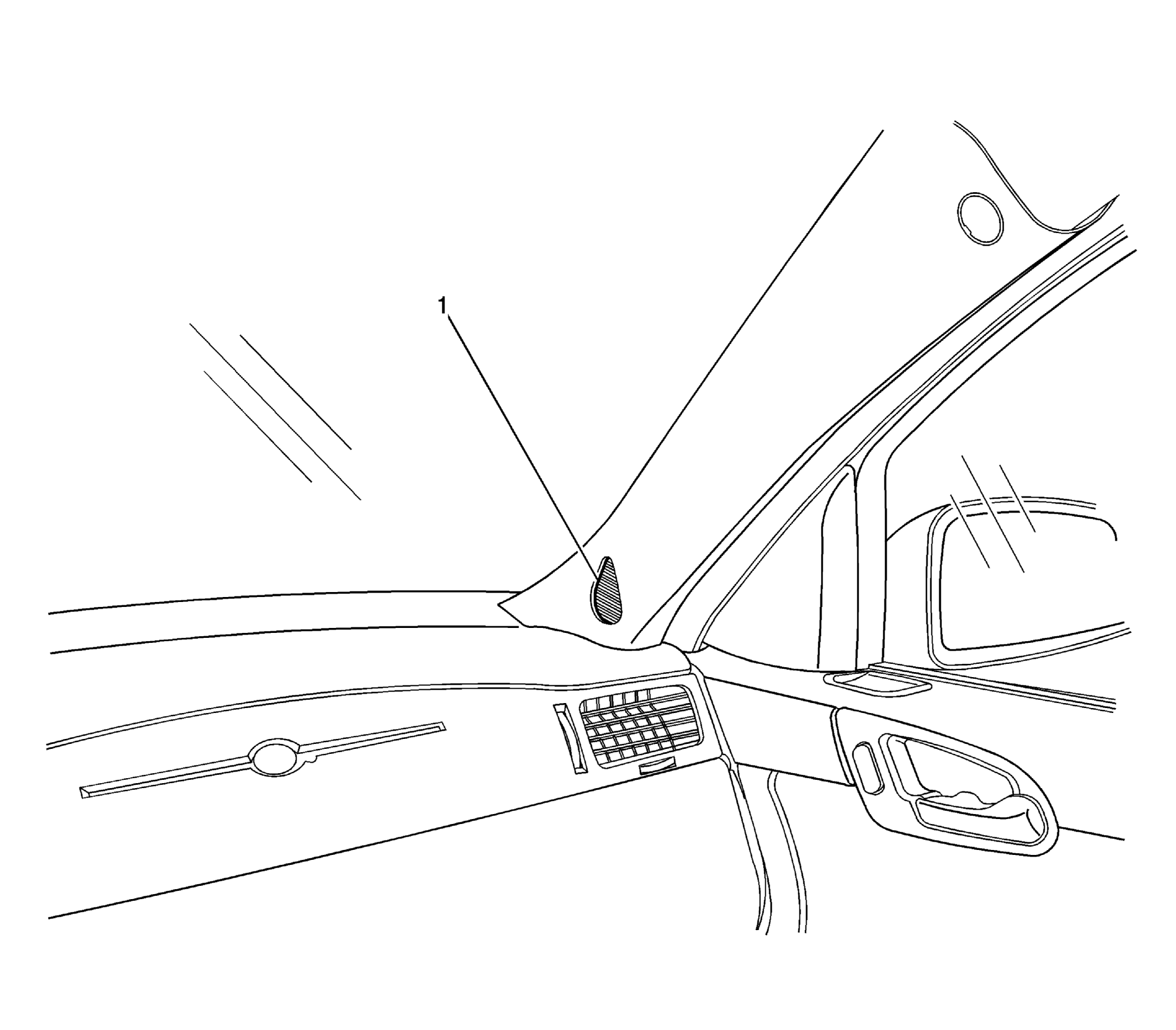

Fig 3: Base of the Right A-Pillar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Tweeter (UQ3)

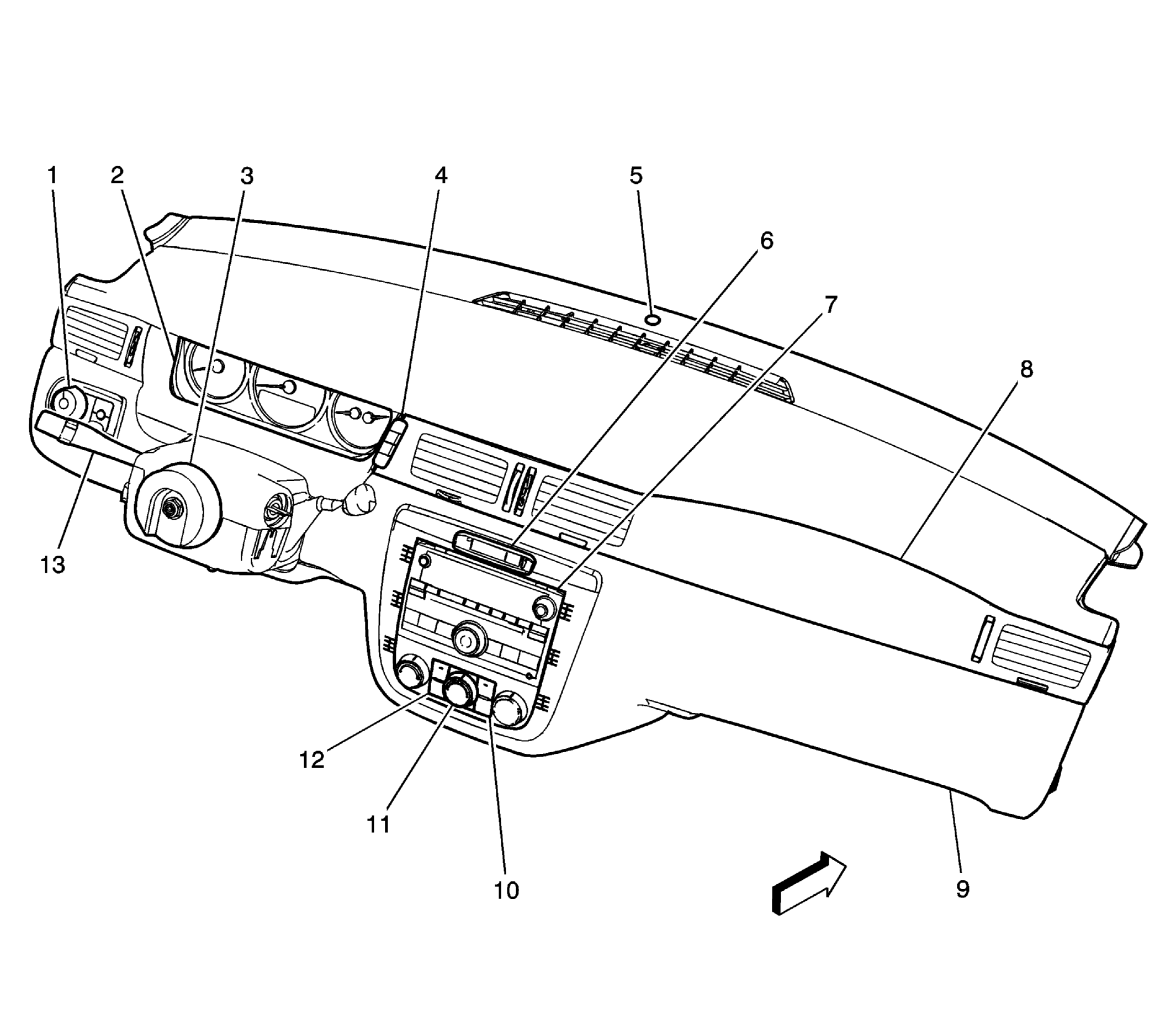

Fig 4: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Inflatable Restraint Steering Wheel Module Coil
4	Driver Information Center (DIC) Switch
5	Ambient Light Sensor
6	Inflatable Restraint Passenger Air Bag On/Off Indicator (Sedan w/o 9C1, 9C3)
7	Radio
8	Inflatable Restraint I/P Module
9	I/P Trim Panel
10	Heated Seat Switch - Passenger (KA1)
11	HVAC Control Module
12	Heated Seat Switch - Driver (KA1)
13	Turn Signal/Multifunction Switch

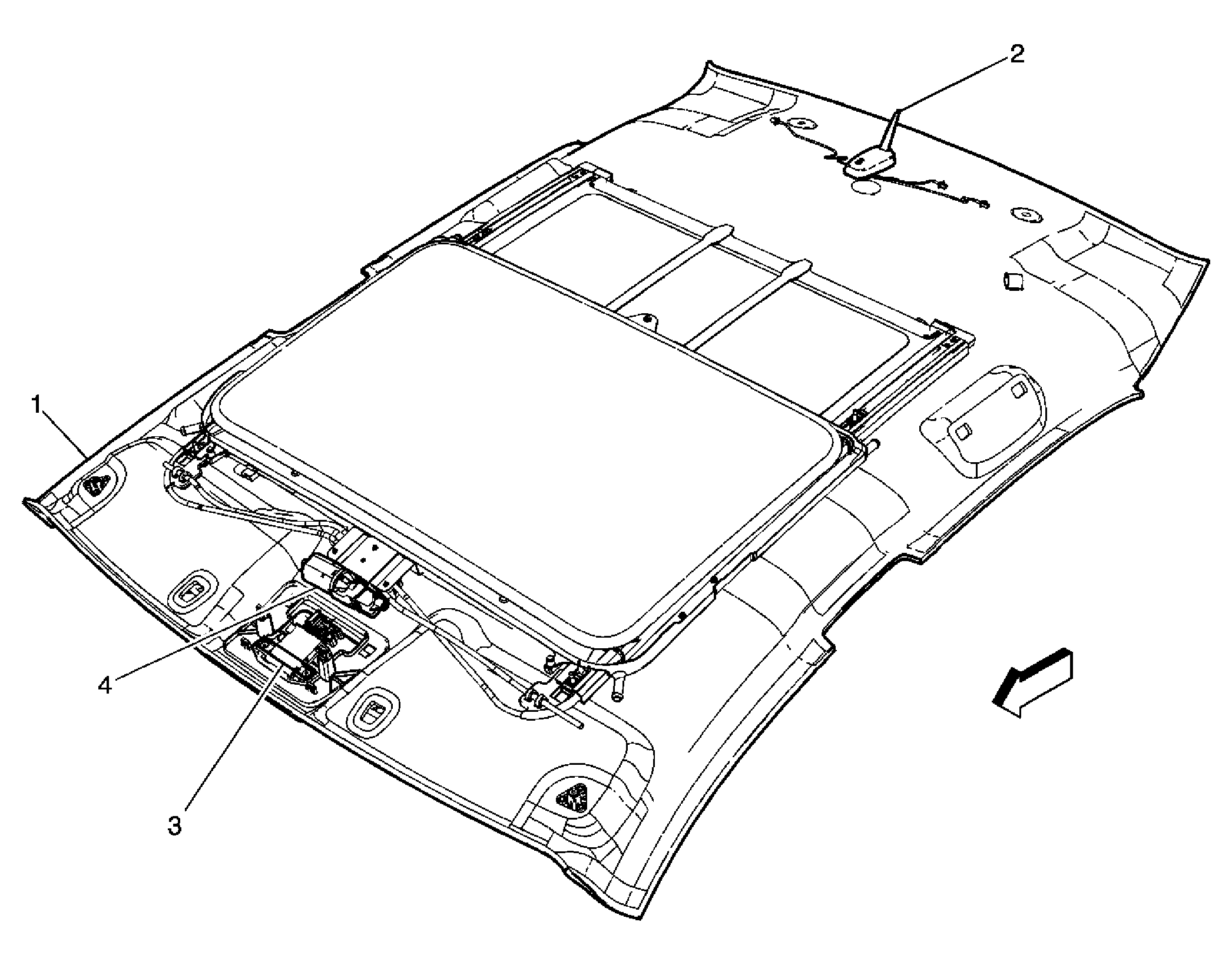

Fig 5: Headliner Components - Top View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	Cellular Navigation and Digital Radio Antenna (UE1, U2K)
3	Inflatable Restraint Passenger Air Bag On/Off Indicator (Coupe)
4	Sunroof Motor (CF5)

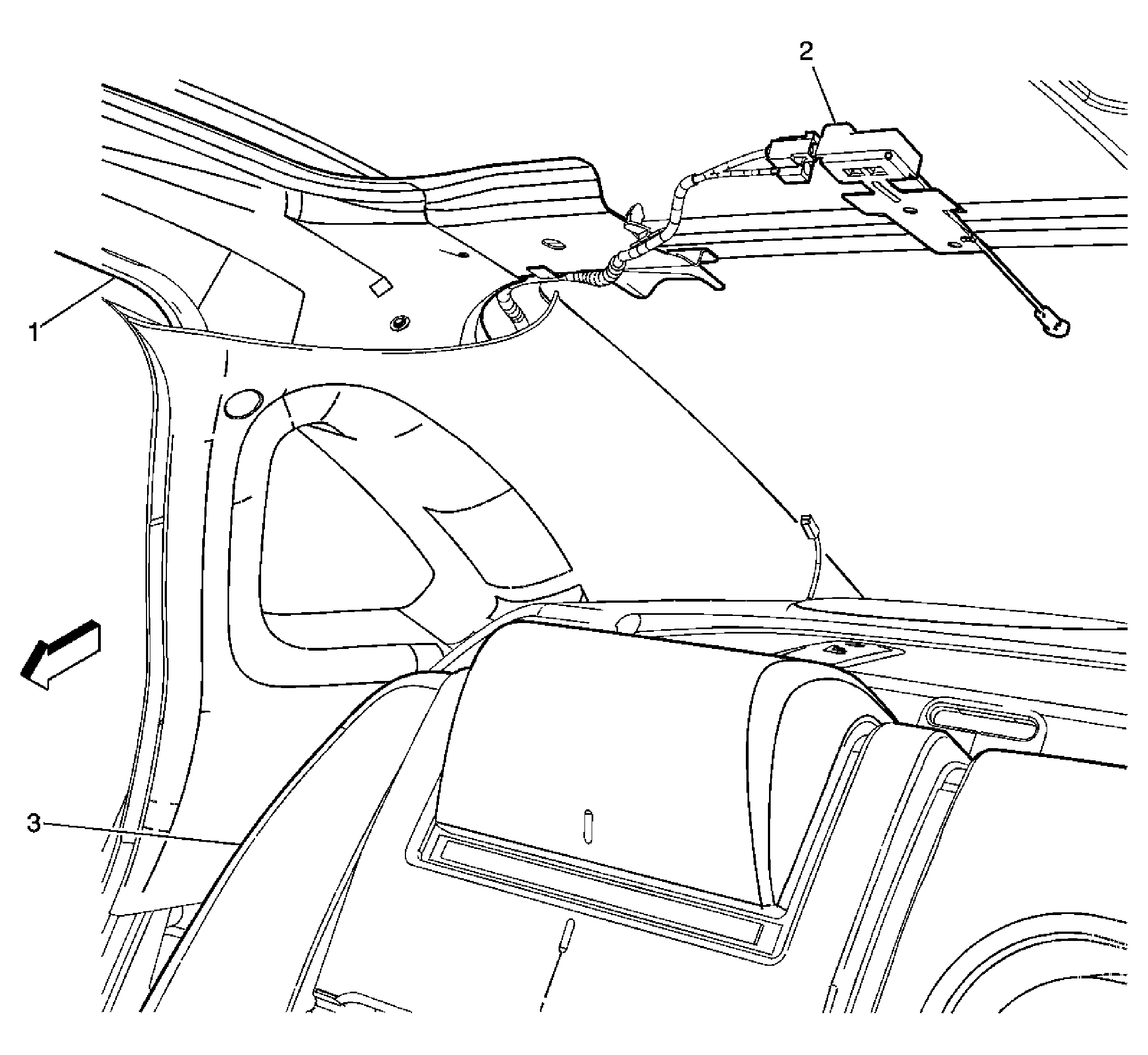

Fig 6: Above Rear Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Rear C-Pillar
2	Radio Antenna Module
3	Rear Seat

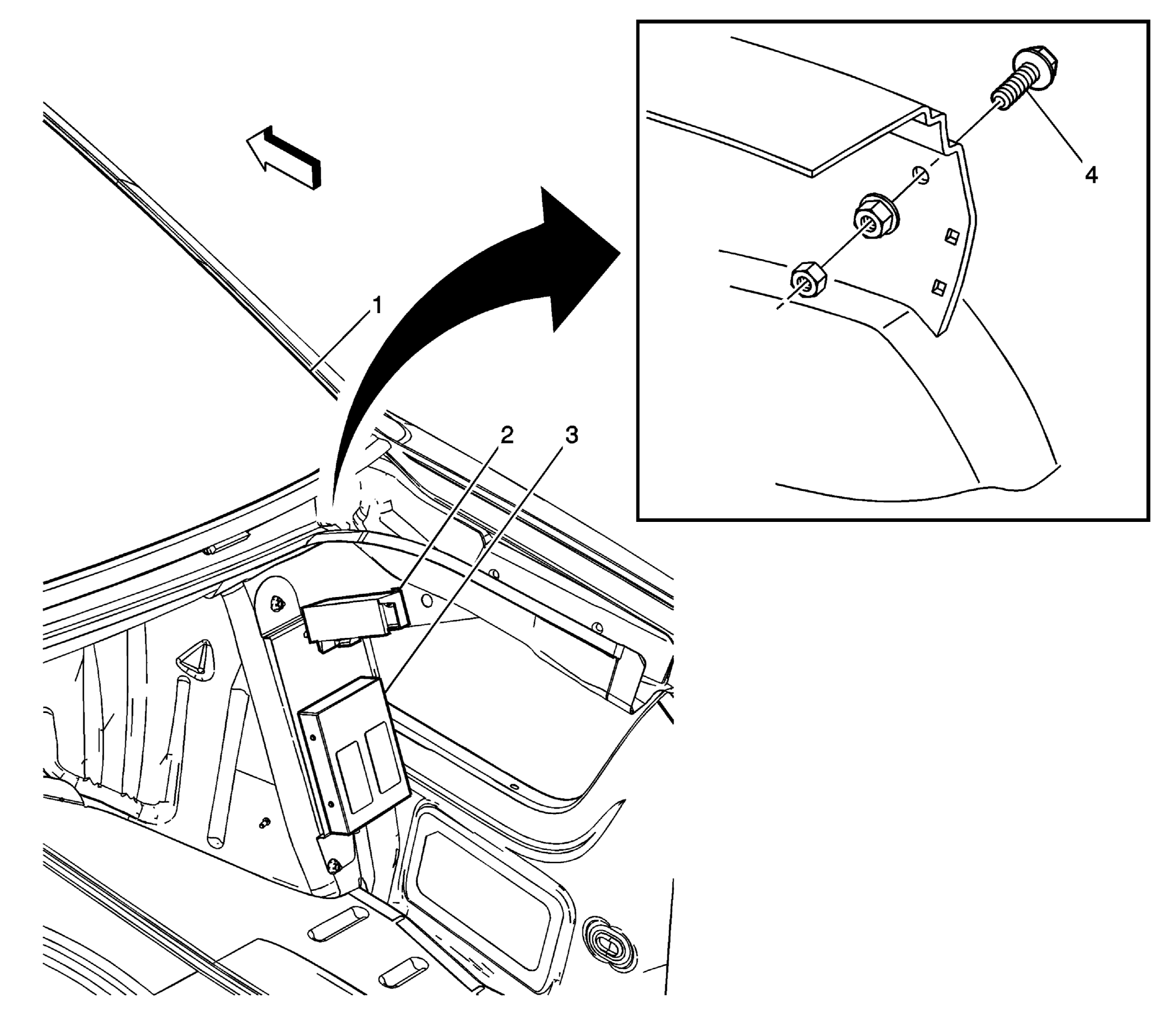

Fig 7: Right Side of the Luggage Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window
2	Junction Block - Rear (6J1)
3	Digital Radio Receiver (U2K)

Fig 8: Rear of Vehicle (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Radio Rear Window Antenna
3	Tail/Stop and Turn Signal Lamp - Right
4	Tail Lamp - Right
5	Backup Lamp - Right
6	License Lamp
7	Center High Mounted Stop Lamp (CHMSL)
8	Backup Lamp - Left
9	Tail Lamp - Left
10	Tail/Stop and Turn Signal Lamp - Left

Fig 9: Rear Of Vehicle (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	Radio Rear Window Antenna
3	Rear Window Defogger Grid
4	Tail Lamp - Right
5	Marker Lamp - RR
6	Tail/Stop and Turn Signal Lamp - Left
7	Backup Lamp - Right
8	License Lamp
9	Backup Lamp - Left
10	Tail/Stop and Turn Signal Lamp - Right
11	Marker Lamp - LR
12	Tail Lamp - Left

Fig 10: Left Side of Rear Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM) (UE1)
2	Backup Battery (UE1 Late Production)
3	Terminator Resistor (w/UE1)
