Ignition and Start Switch Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

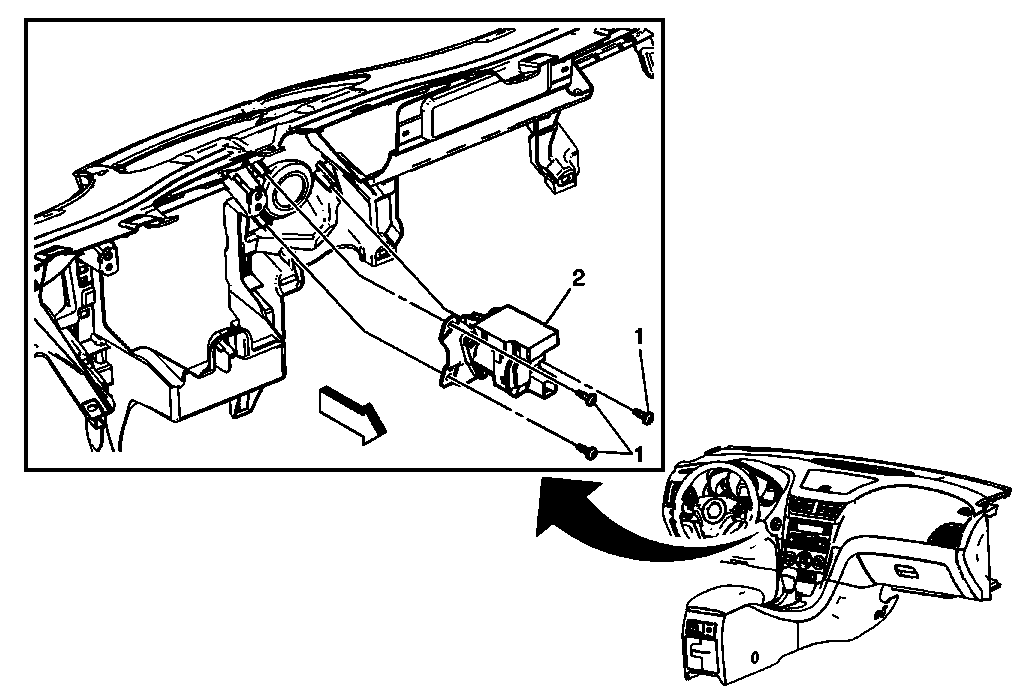

Fig 1: Replacing Ignition & Start Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the driver knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement . Remove the ignition switch lock cylinder. Refer to Ignition Switch Lock Cylinder Replacement .
1	Ignition and Start Switch Bolt/Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 5 N.m (44 lb in)
2	Ignition and Start Switch Procedure Disconnect the electrical connections. Disconnect the park lock cable from the ignition and start switch. Refer to Control Solenoid Valve and Transmission Control Module Assembly Cleaning or Park Lock Cable Replacement . Remove the theft deterrent control module. Refer to Theft Deterrent Module Replacement . Transfer the bracket if necessary.

Callout

Component Name

Preliminary Procedures

Remove the driver knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement .
Remove the ignition switch lock cylinder. Refer to Ignition Switch Lock Cylinder Replacement .

Ignition and Start Switch Bolt/Screw (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 5 N.m (44 lb in)

Ignition and Start Switch

Procedure

Disconnect the electrical connections.
Disconnect the park lock cable from the ignition and start switch. Refer to Control Solenoid Valve and Transmission Control Module Assembly Cleaning or Park Lock Cable Replacement .
Remove the theft deterrent control module. Refer to Theft Deterrent Module Replacement .
Transfer the bracket if necessary.
