Front Fender Liner Replacement

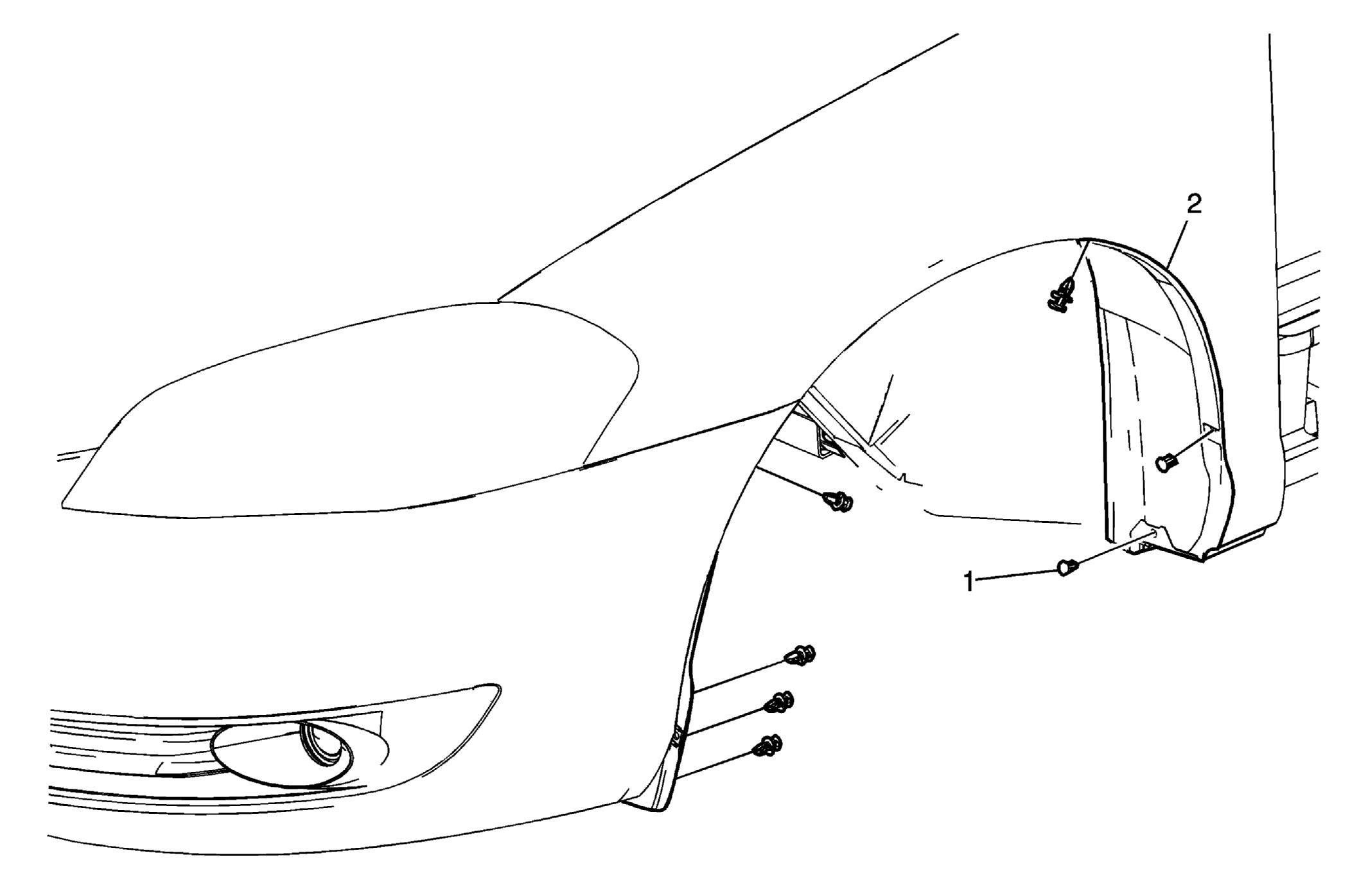

Fig 1: Replacing Front Fender Liner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheel. Refer to Tire and Wheel Removal and Installation .
1	Retainers, Front Fender Liner (Qty: 7)
2	Liner, Front Fender Liner

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Retainers, Front Fender Liner (Qty: 7)

Liner, Front Fender Liner
