Steering Wheel Secondary/Configurable Control Schematics

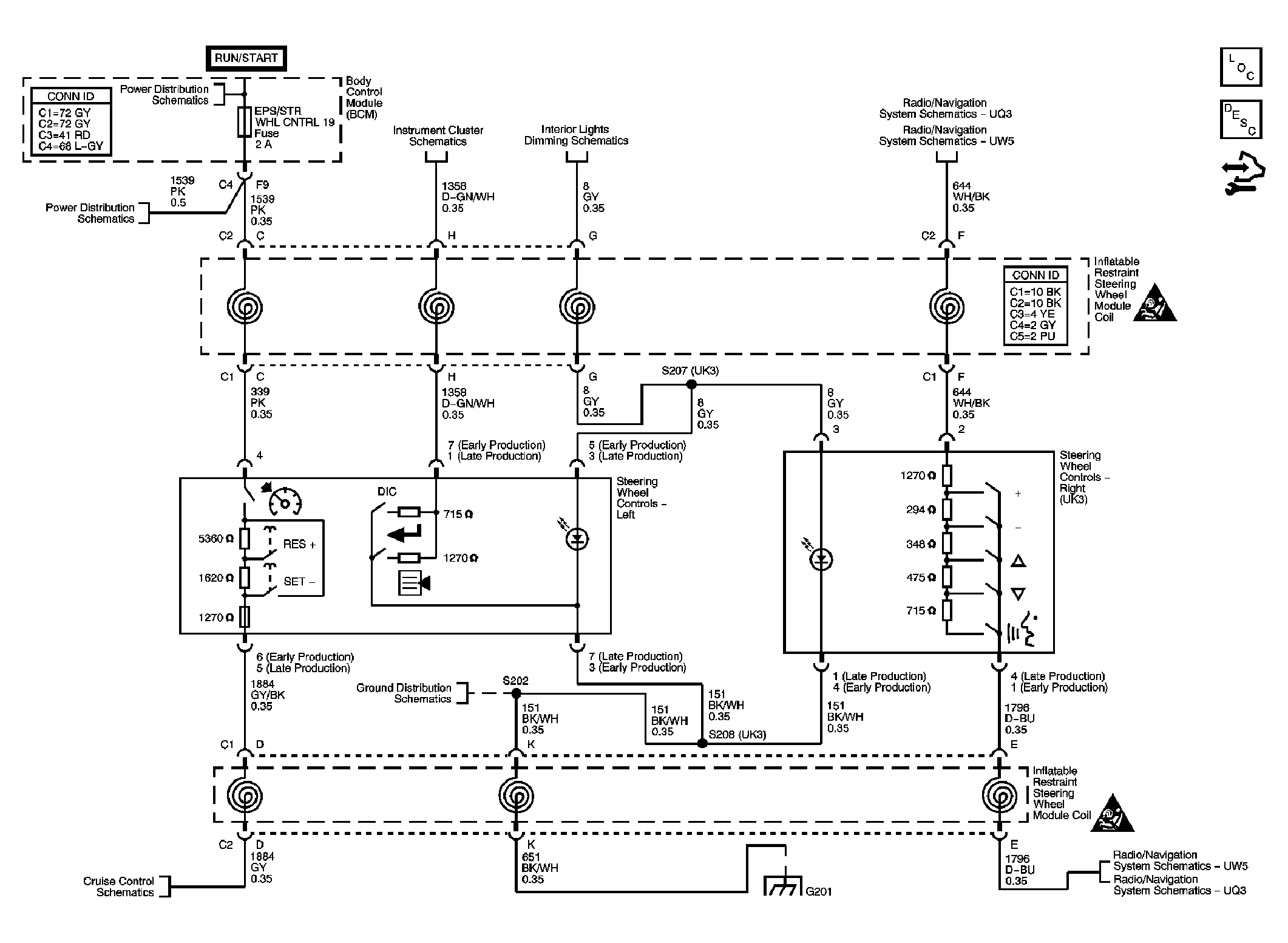

Fig 1: Steering Wheel Secondary/Configurable Control Schematic

GM1769503

Courtesy of GENERAL MOTORS CORP.
