Front Seat Belt Replacement

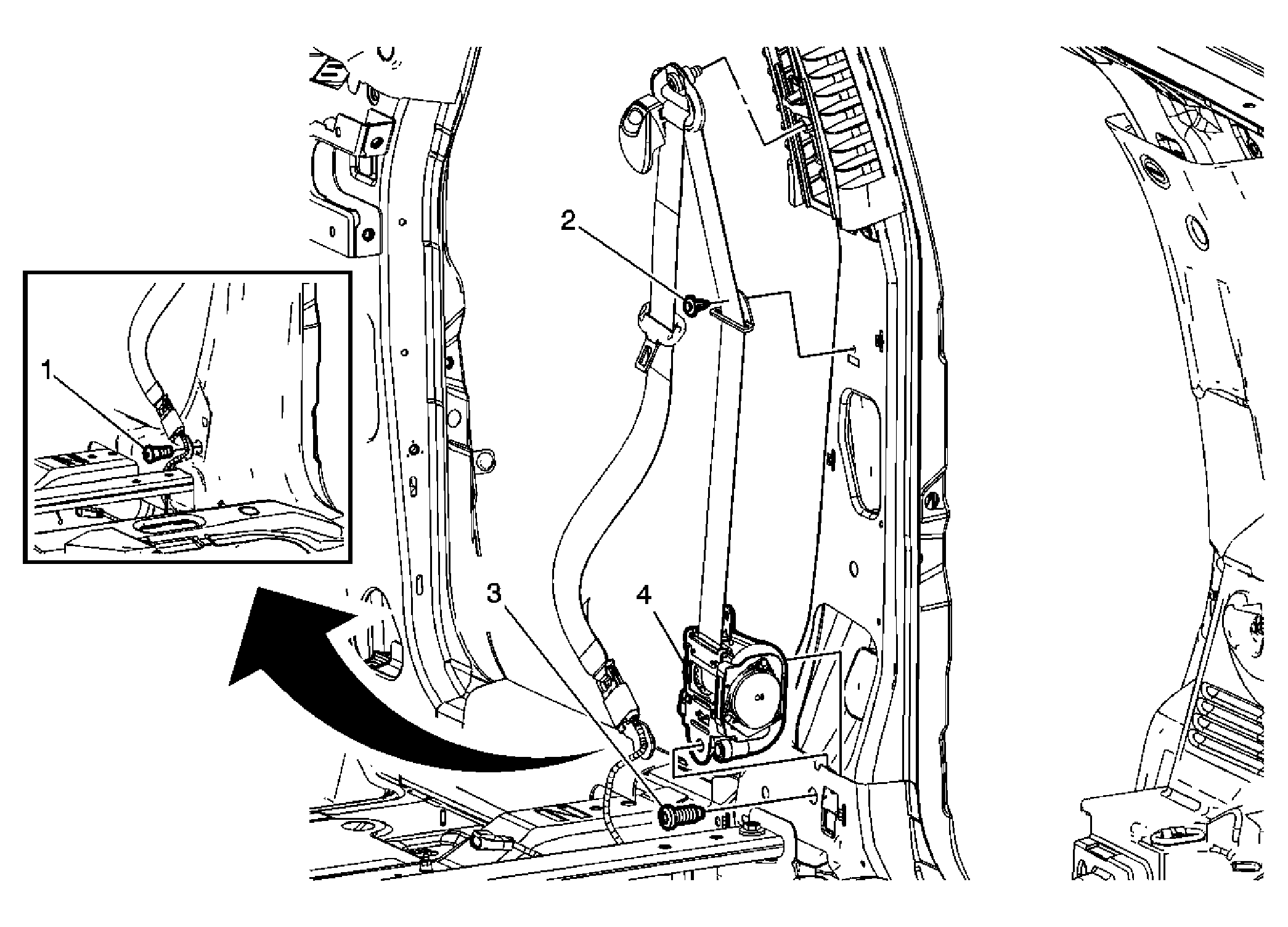

Fig 1: Seat Belt Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the seat belt height adjuster Cover. Refer to Seat Belt Height Adjuster Knob Replacement - Front . Remove the center pillar trim. Refer to Center Pillar Upper Trim Panel Replacement and Center Pillar Lower Trim Panel Replacement .
1	Front Seat Shoulder Belt Anchor Plate Bolt Tip: Disconnect the electrical connector. Tighten: 43 N.m (32 lb ft)
2	Shoulder Belt Guide Retainer
3	Front Seat Retractor Bolt Tighten: 43 N.m (32 lb ft)
4	Front Seat Belt Retractor
