Digital Radio Receiver Replacement

WARNING: This page is about a different car, the 2011 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

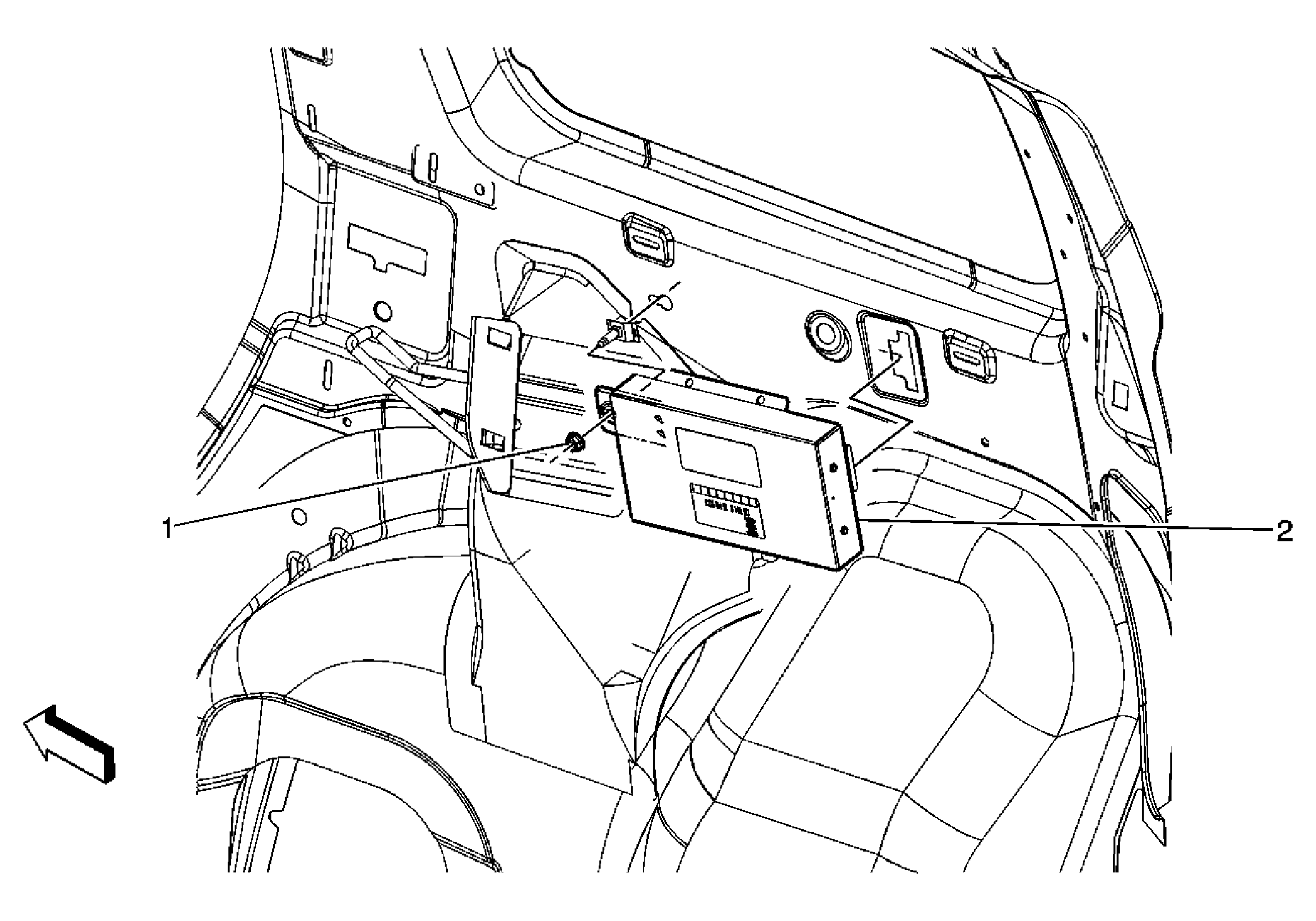

Fig 1: Digital Radio Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right rear quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement (With AXS) , Quarter Upper Trim Panel Replacement (Except AXS) .
1	Digital Radio Receiver Nut CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Digital Radio Receiver Assembly Procedure Disconnect the antenna cable. Disconnect the electrical connector. Reprogram the digital radio receiver after installation. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures
Remove the right rear quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement (With AXS) , Quarter Upper Trim Panel Replacement (Except AXS) .

Digital Radio Receiver Nut

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Digital Radio Receiver Assembly

Procedure

Disconnect the antenna cable.
Disconnect the electrical connector.
Reprogram the digital radio receiver after installation. Refer to Control Module References .
