Interior Lights Schematics

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

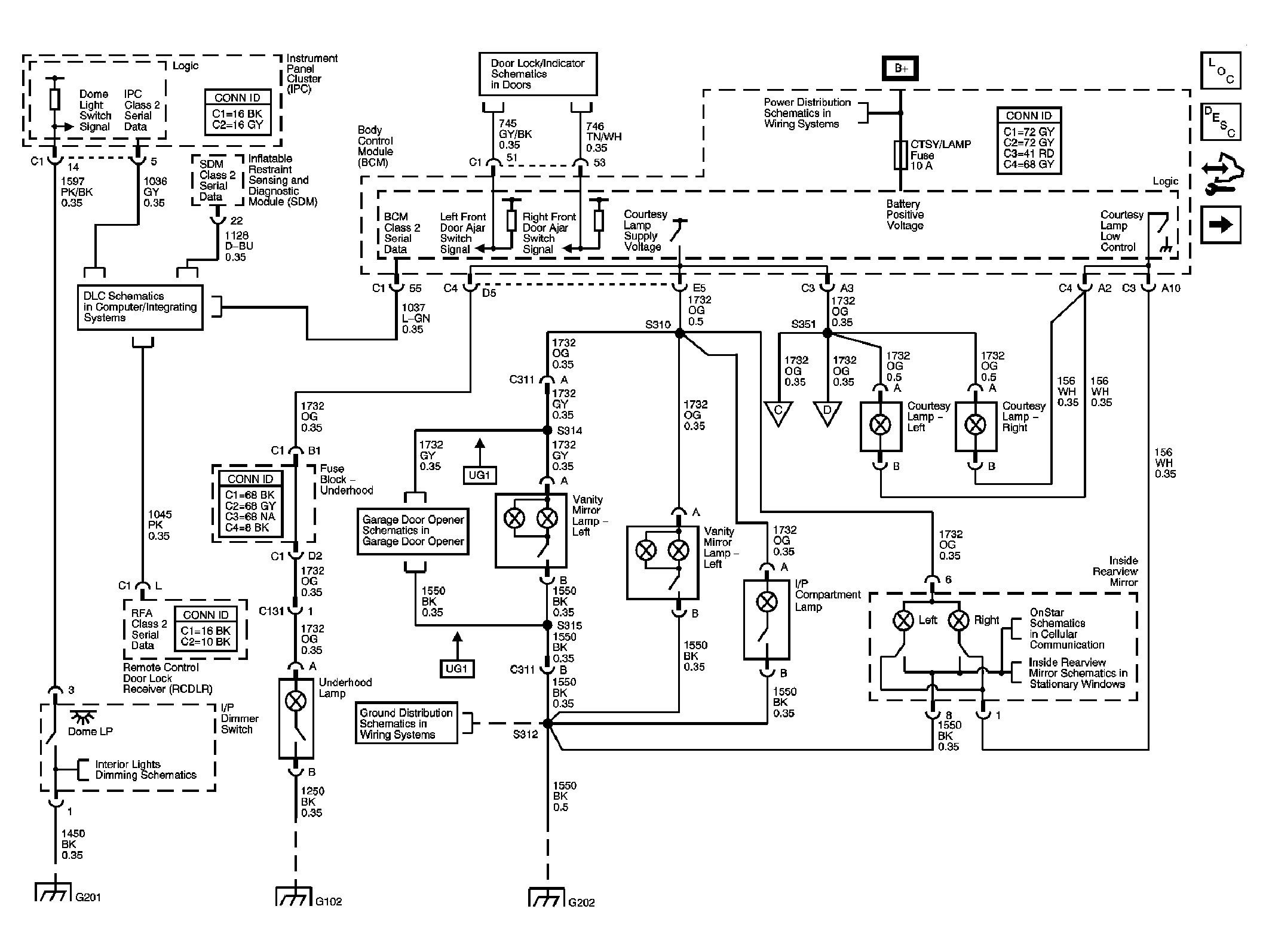

Fig 1: Passenger Compartment Lamp Schematic
GM1450929Courtesy of GENERAL MOTORS CORP.

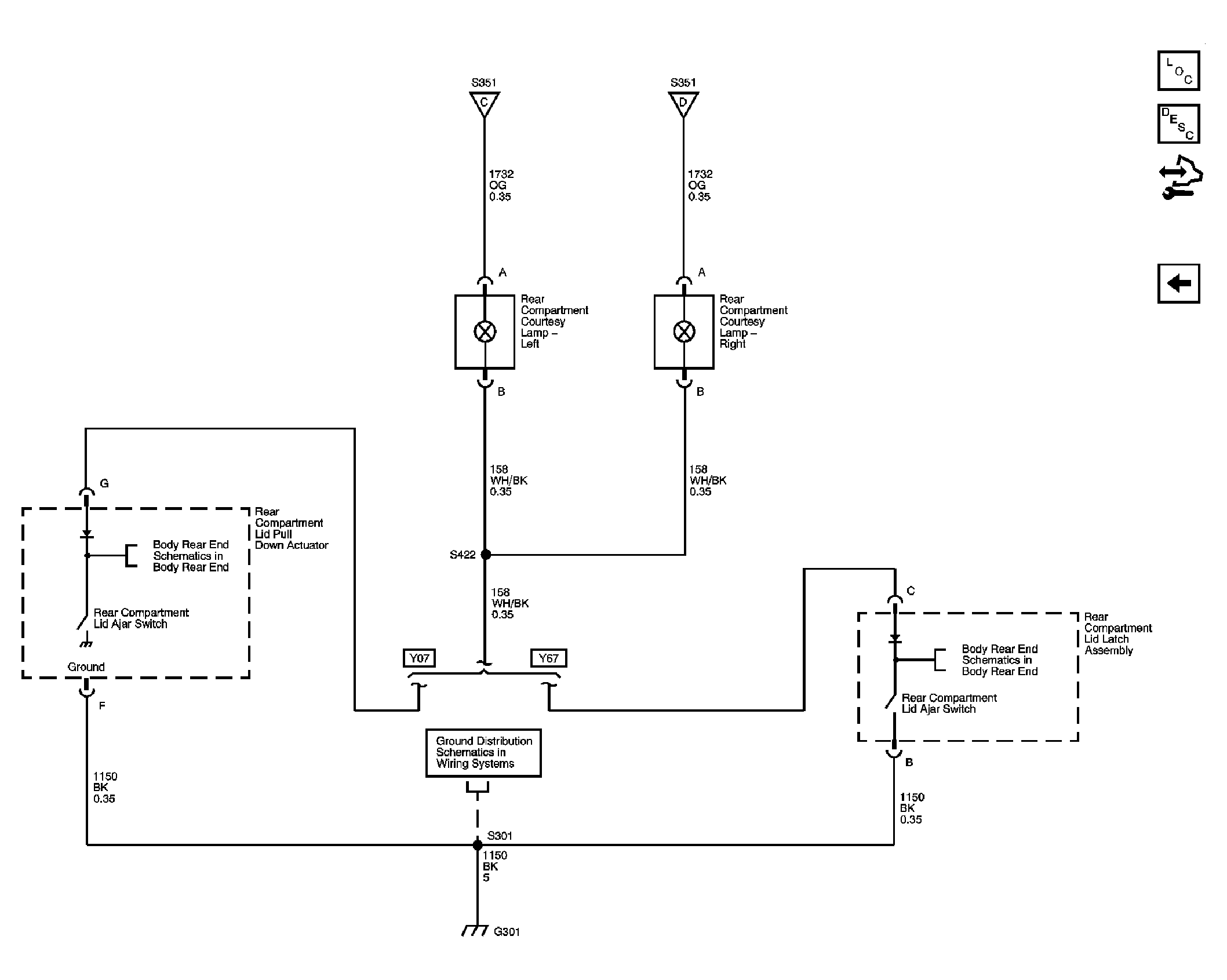

Fig 2: Rear Compartment Courtesy Lamp Schematic
GM1450930Courtesy of GENERAL MOTORS CORP.
