Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

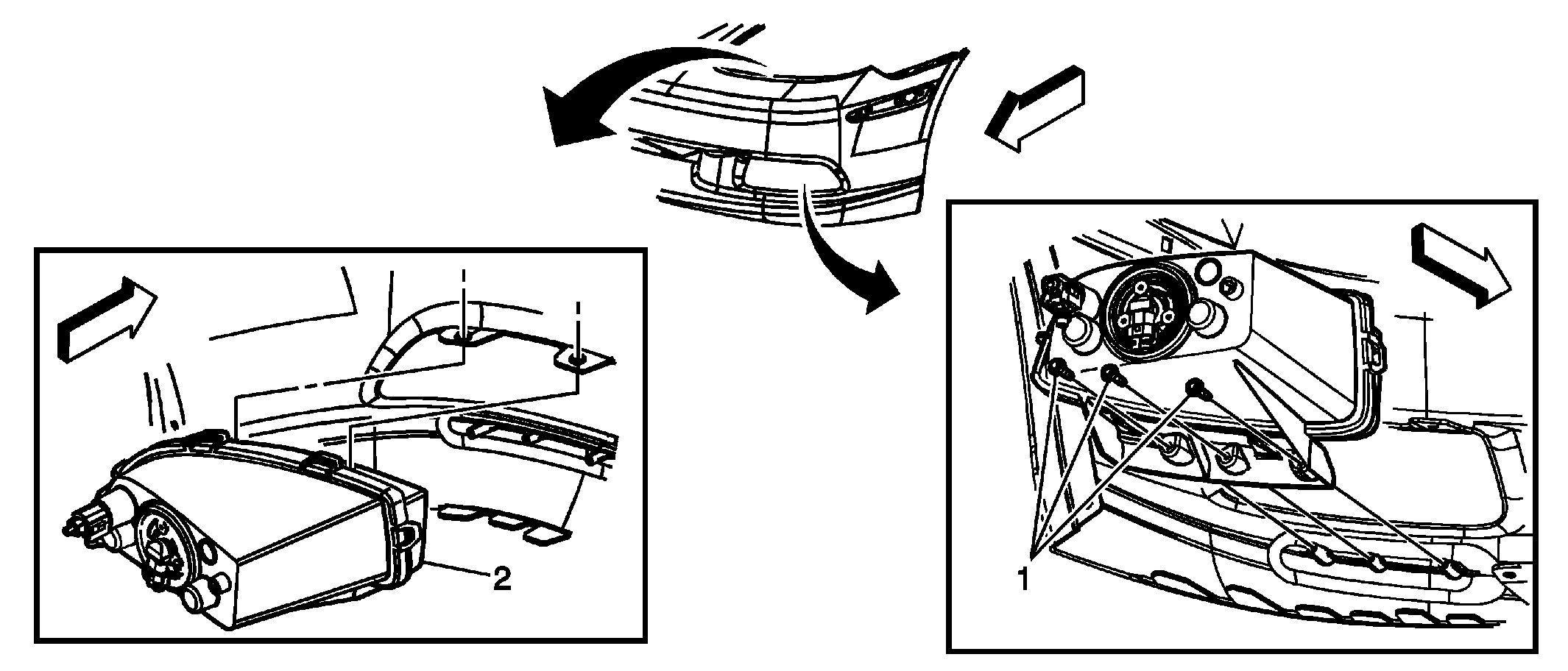

Fig 1: Front Fog Lamp & Mounting Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Disconnect the front fog lamp bulb socket electrical connectors.
1	Front Fog Lamp Mounting Screws (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 4 N.m (35 lb in)
2	Front Fog Lamp Tip: Lower the fog lamp in order to release the upper alignment pins from the tabs on the front fascia.

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Disconnect the front fog lamp bulb socket electrical connectors.

Front Fog Lamp Mounting Screws (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 4 N.m (35 lb in)

Front Fog Lamp
Tip: Lower the fog lamp in order to release the upper alignment pins from the tabs on the front fascia.
