Installation Procedure

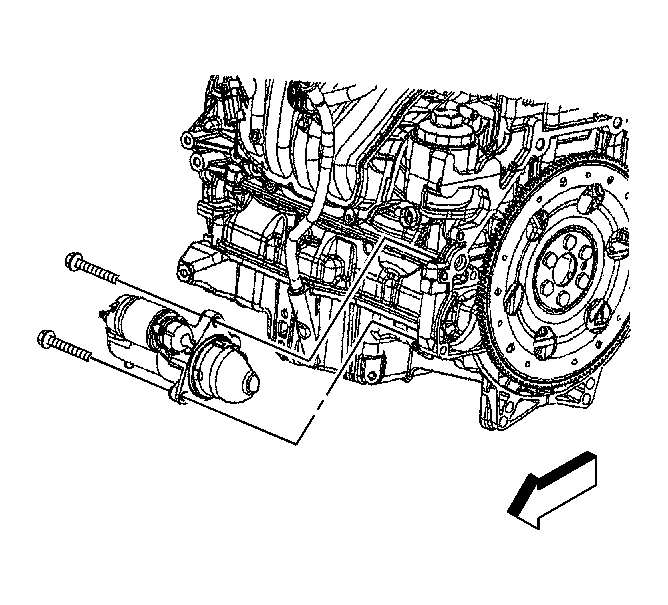

    Fig 1: Starter And Bolts
    GM1625600Courtesy of GENERAL MOTORS CORP.
  1. Position the starter to the engine.
    2. NOTE: Refer to Fastener Notice .
  2. Install the starter bolts.

    Tighten:  Tighten the bolts to 40 N.m (30 lb ft).

    3. Fig 2: Engine Harness
    GM1625472Courtesy of GENERAL MOTORS CORP.
  3. Install the engine harness terminal (5) to the starter solenoid.
  4. Install the starter solenoid "S" terminal nut (6).

    Tighten:  Tighten the nut to 3 N.m (27 lb in).

  5. Install the engine harness terminal (4) to the starter.
    6. Fig 3: Engine Harness
    GM1625468Courtesy of GENERAL MOTORS CORP.
  6. Install the positive/negative battery cable (3) terminal to the starter.
  7. Install the starter solenoid nut (4).

    Tighten:  Tighten the nut to 17 N.m (13 lb ft).

  8. Lower the vehicle.
  9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
