Installation Procedure

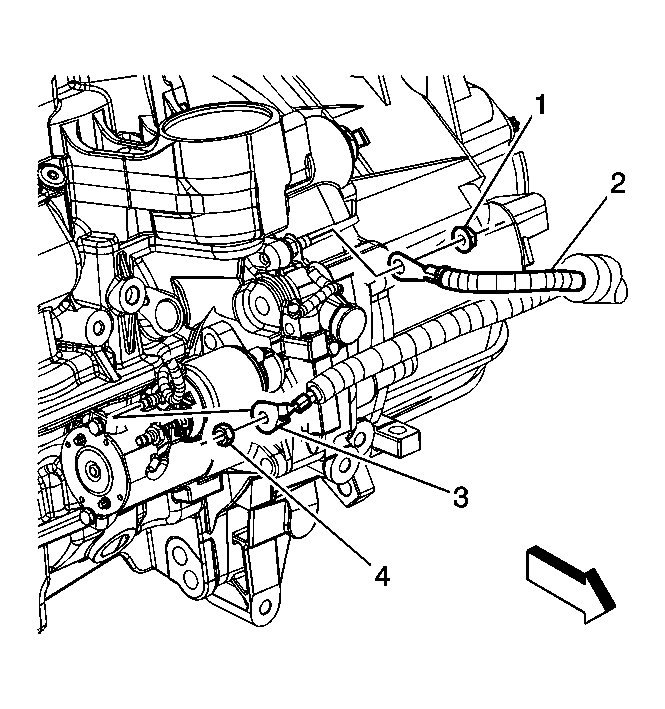

    Fig 1: Positive/Negative Battery Cable
    GM1625471Courtesy of GENERAL MOTORS CORP.
  1. If equipped with a manual transaxle, perform the following steps, install the positive/negative battery cable (3) to the starter.
    2. NOTE: Refer to Fastener Notice .
  2. Install the starter solenoid nut (4).

    Tighten:  Tighten the nut to 17 N.m (13 lb ft).

  3. Install the positive/negative cable ground terminal (2) to the transaxle stud.
  4. Install the positive/negative battery cable ground nut (1).

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

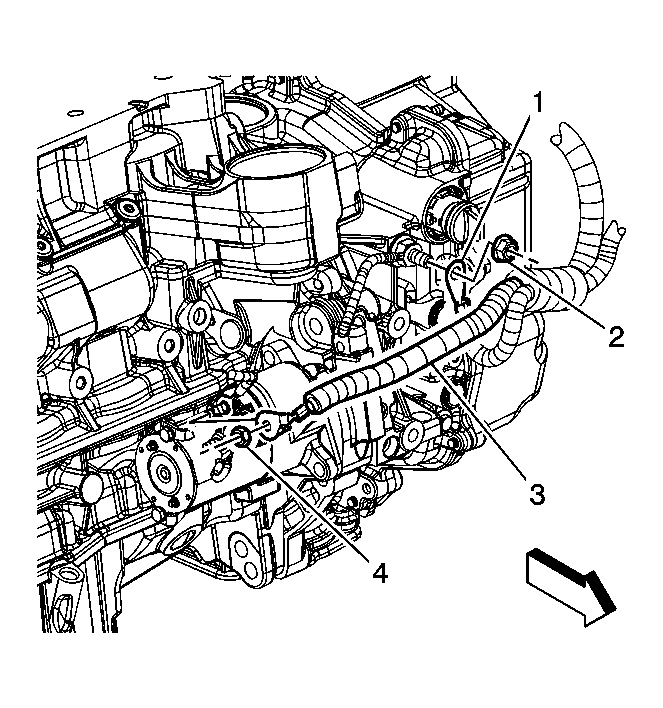

    5. Fig 2: Engine Harness
    GM1625468Courtesy of GENERAL MOTORS CORP.
  5. If equipped with a automatic transaxle, perform the following steps, install the positive/negative battery cable (3) to the starter.
  6. Install the starter solenoid nut (4).

    Tighten:  Tighten the nut to 17 N.m (13 lb ft).

  7. Install the positive/negative cable ground terminal (1) to the transaxle stud.
  8. Install the positive/negative battery cable ground nut (2).

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

  9. Lower the vehicle.
    10. Fig 3: Negative Battery Cable
    GM1631518Courtesy of GENERAL MOTORS CORP.
  10. Install the positive/negative battery cable clip (6) to the ECM/TCM bracket.
  11. Install the positive/negative ground terminal (4) to the tie bar stud.
  12. Install the positive/negative ground nut (3) to the tie bar stud.
  13. Install the positive/negative battery cable terminal (2) to the junction block terminal stud.
  14. Install the junction block terminal nut (1).

    Tighten:  Tighten the nut to 15 N.m (11 lb ft).

  15. Close the junction block terminal cover.
  16. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
