Window Systems Component Views

Fig 1: Driver Door Components

GM1651951

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror Motor - Driver
3	Door Lock Switch - Driver
4	Outside Rearview Mirror Switch
5	Speaker - LF Door
6	Window Motor - Driver
7	Inflatable Restraint Side Impact Sensor (SIS) Left (ASF)
8	Door Latch - Driver

Fig 2: Passenger Door Components

GM1651956

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Motor - Passenger
2	Door Frame
3	Door Latch - Passenger
4	Inflatable Restraint Side Impact Sensor (SIS) Right (ASF)
5	Speaker - RF Door
6	Window Motor - Passenger
7	Door Lock Switch - Passenger

Fig 3: LR Door Components

GM1651958

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Window Switch - LR (Except Panel Van)
3	Window Motor - LR (Except Panel Van)
4	Speaker - LR Door
5	Door Latch - LR (Except Panel Van), Rear Access Panel Latch - LR (Panel Van)

Fig 4: RR Door Components

GM1651940

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch - RR (Except Panel Van), Rear Access Panel Latch - RR (Panel Van)
3	Speaker - RR Door
4	Window Motor - RR (Except Panel Van)
5	Window Switch - RR (Except Panel Van)

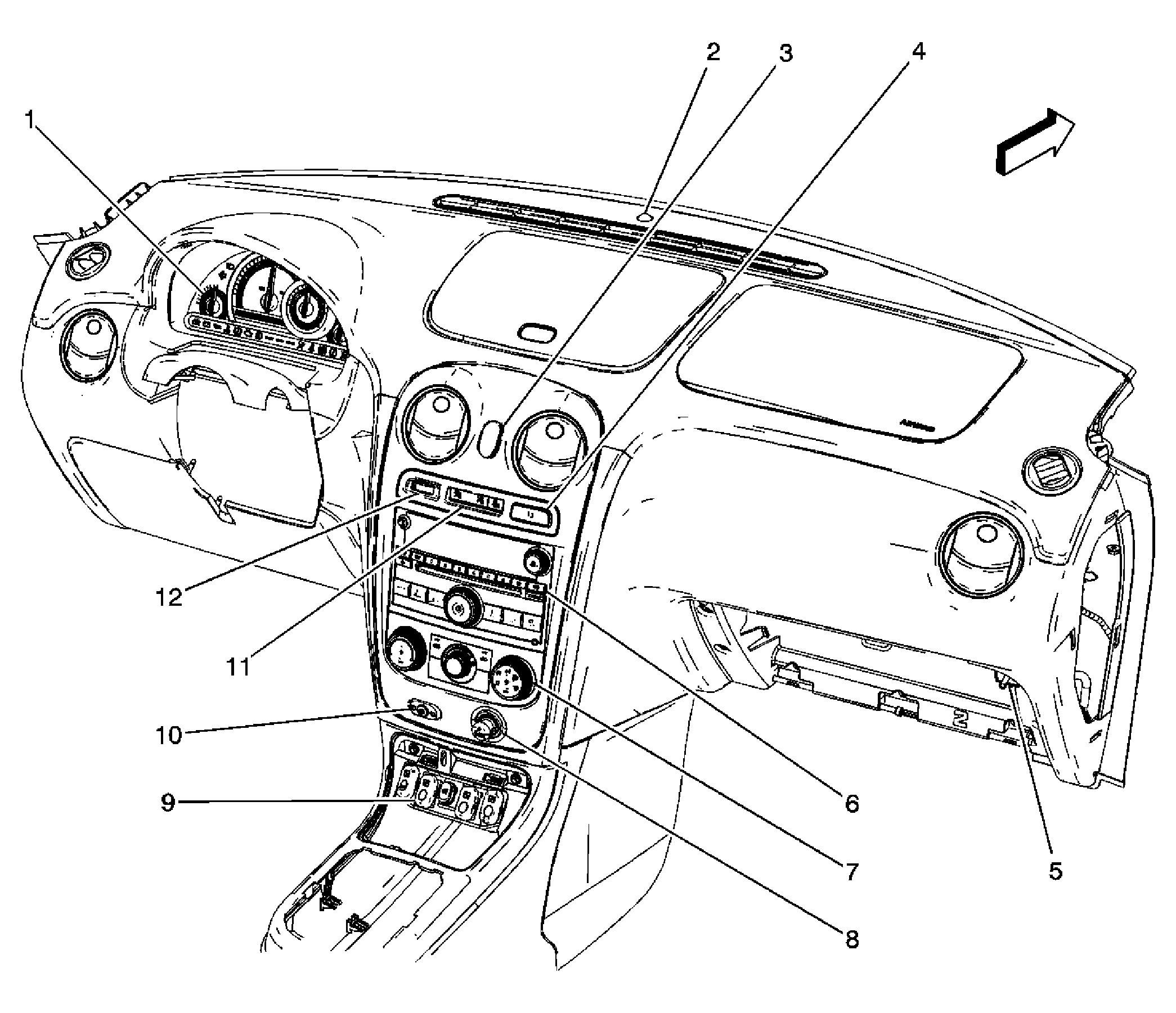

Fig 5: I/P Components

GM1652110

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Ambient Light Sensor
3	Hazard Switch
4	Fog Lamp Switch (T37)
5	I/P Compartment
6	Radio
7	HVAC Control Assembly
8	Cigar Lighter (DT4)/Power Outlet (w/o DT4)
9	Master Window Switch
10	Rear Wiper/Washer Switch
11	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
12	Instrument Panel (I/P) Dimmer Switch

Fig 6: Liftgate Components

GM1652104

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Door Latch - Liftgate
3	Rear Window Wiper Motor
