Installation Procedure

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

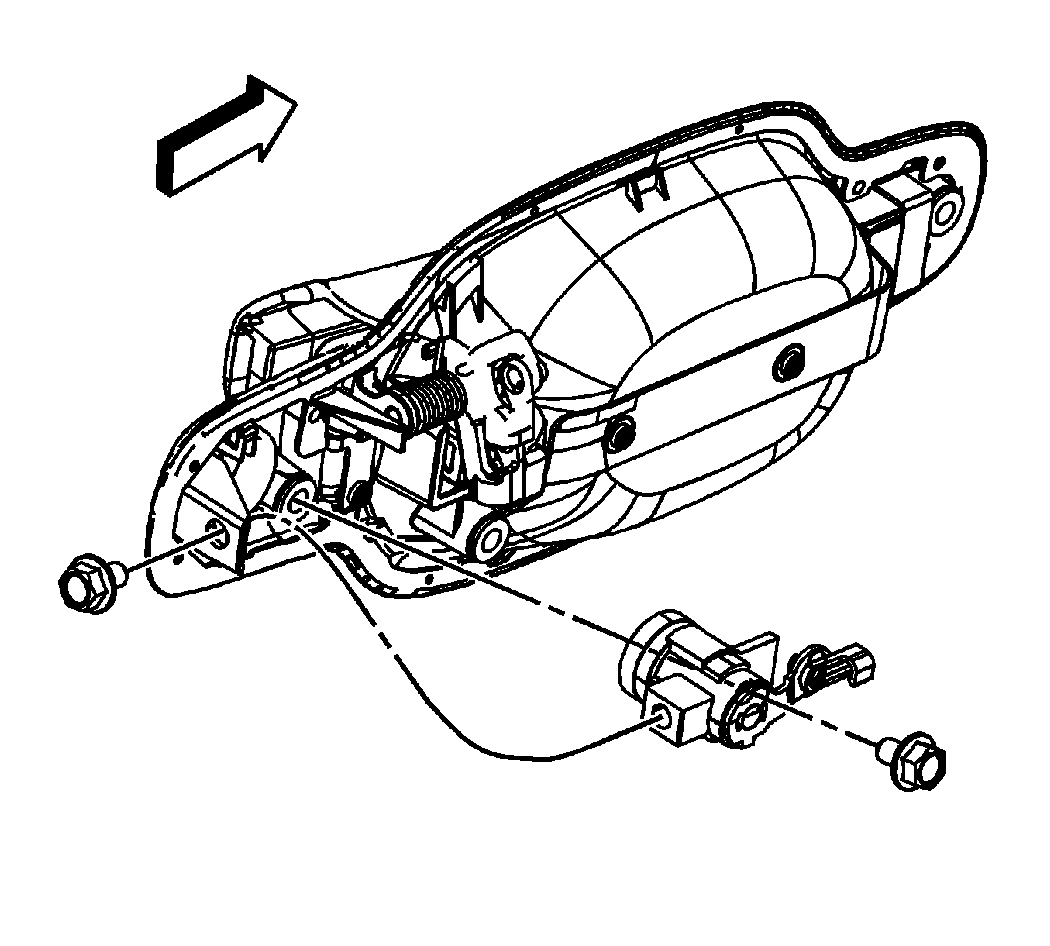

    Fig 1: View Of Door Lock Cylinder & Outside Door Handle
    GM1252419Courtesy of GENERAL MOTORS CORP.
  1. Install the lock cylinder to the front outside door handle.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the bolts retaining the lock cylinder to the outside door handle.

    Tighten:  Tighten the lock cylinder bolts to 9 N.m (80 lb in).

  3. Install the front outside door handle. Refer to Front Side Door Outside Handle Replacement .
  4. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement .
  5. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
