WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

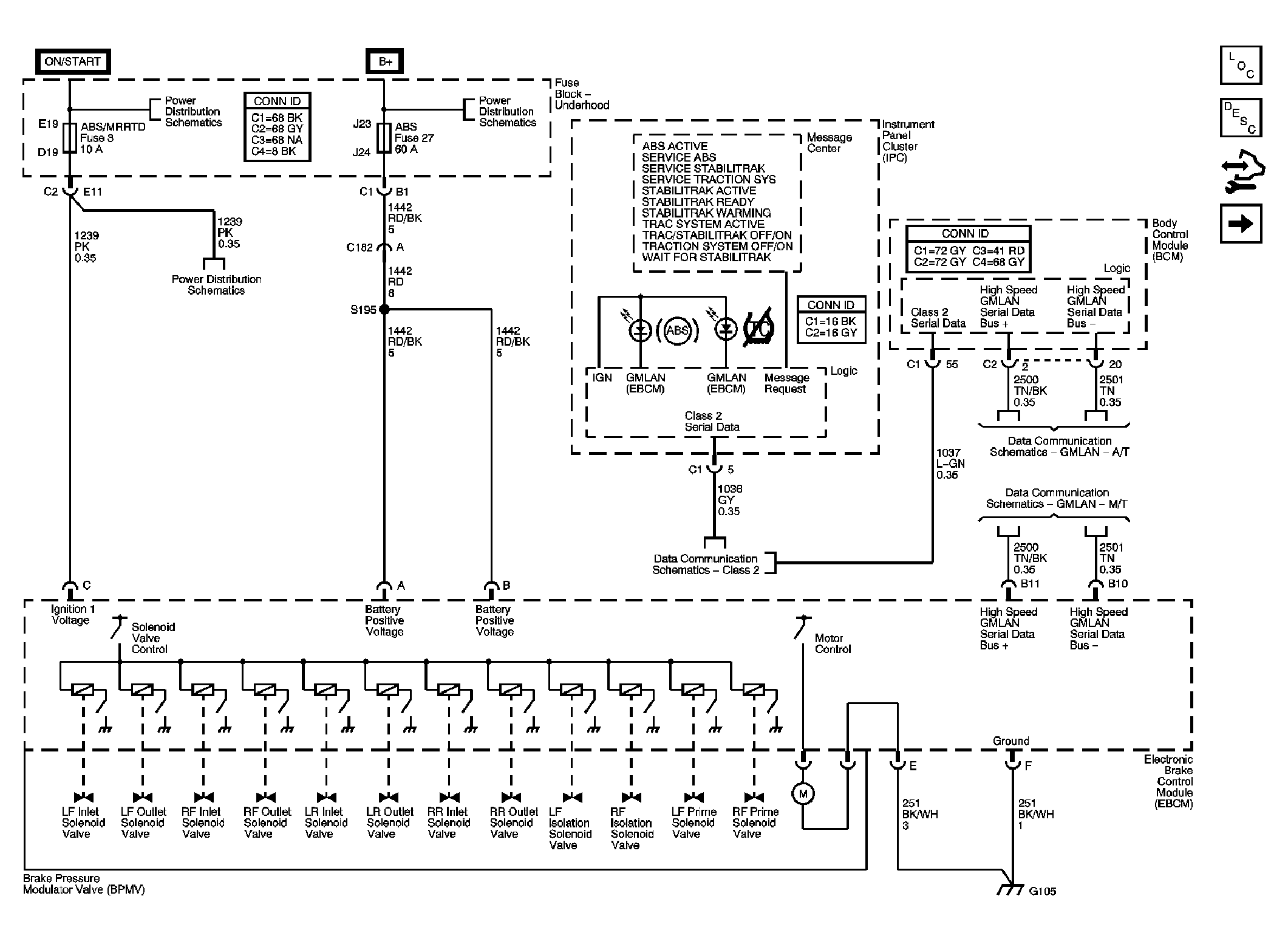

Fig 1: Ground, Indicators, Messages and Power Schematic
Courtesy of GENERAL MOTORS CORP.

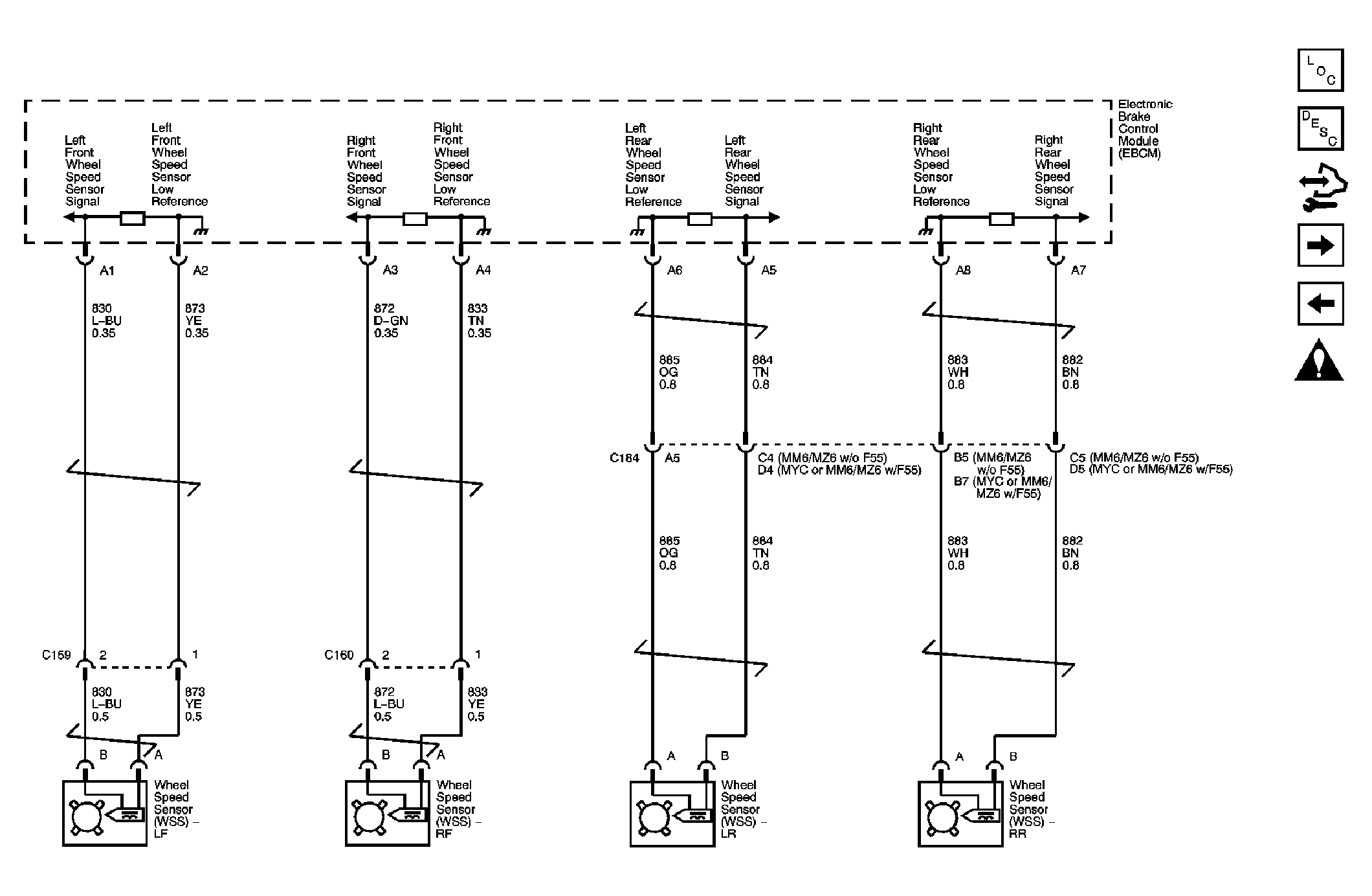

Fig 2: Wheel Speed Sensors Schematic
Courtesy of GENERAL MOTORS CORP.

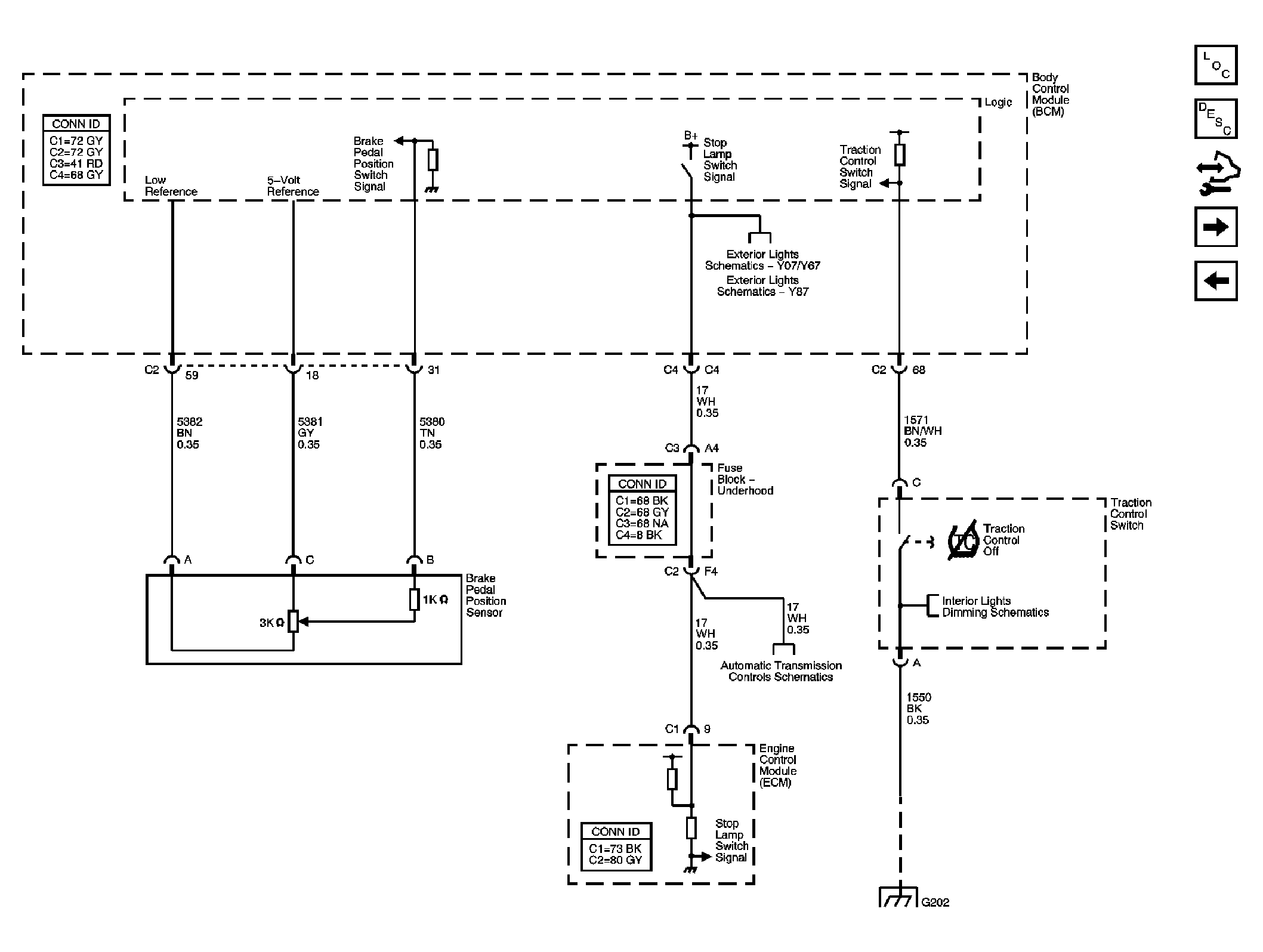

Fig 3: Brake Pedal Signal and Traction Control Switch Schematic
