Radio Front Speaker Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

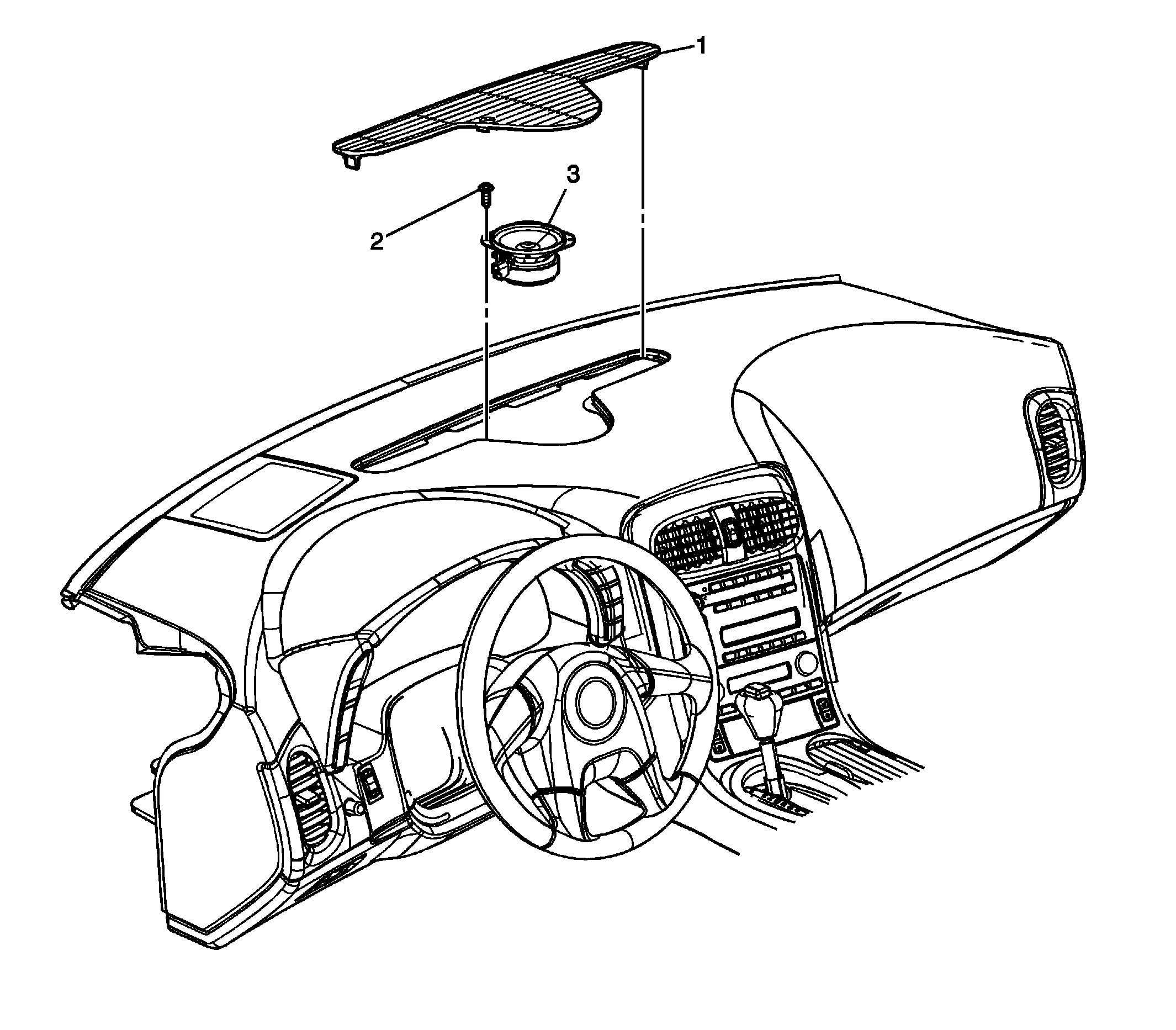

Fig 1: View Of Front Speaker Grille & Bolts
GM1494015Courtesy of GENERAL MOTORS CORP.
Radio Front Speaker Replacement

Callout Component Name
1 Defroster Grill
Refer to Defroster Grille Replacement .
2 Speaker Screws (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)

3 Speaker Assembly
