Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

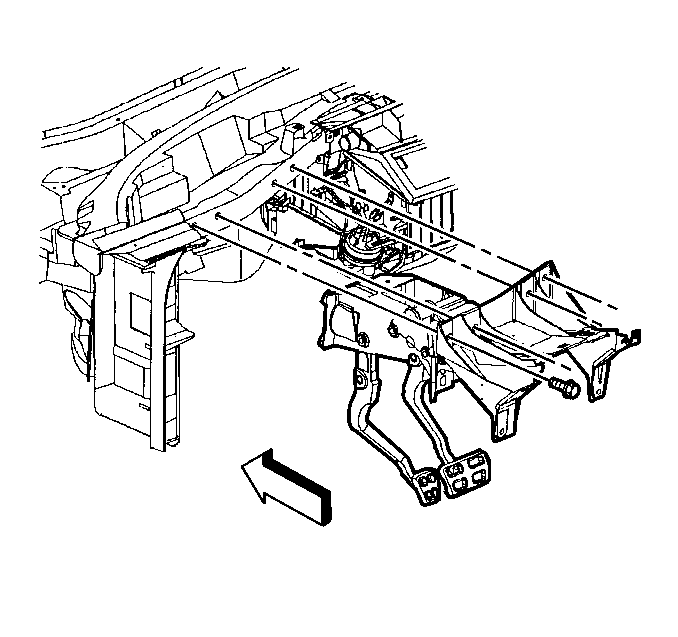

    Fig 1: View Of Steering Column Bracket, Bolts & I/P Upper Support Beam
    GM95663Courtesy of GENERAL MOTORS CORP.
  1. Install the steering column bracket into position as marked prior to removal.
  2. Install the bolts which secure the steering column bracket to the I/P upper support beam. Do NOT tighten the bolts.

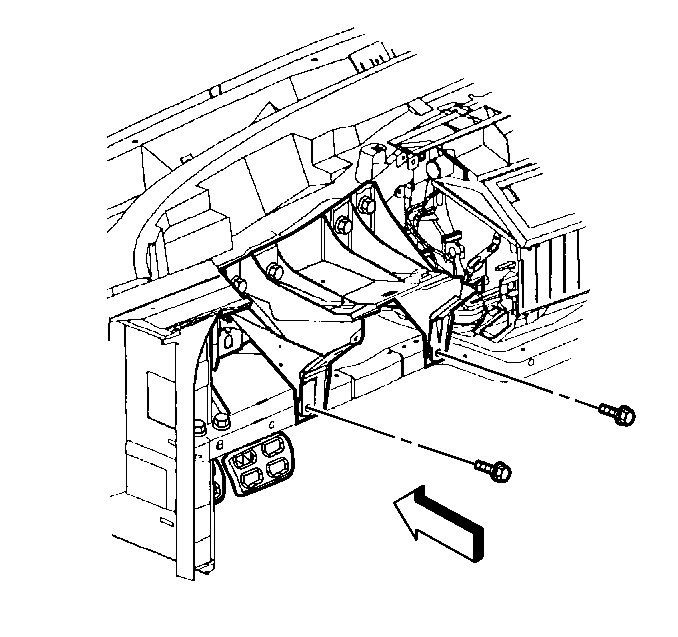

    3. Fig 2: View Of Steering Column Bracket & Bolts
    GM95665Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the bolts which secure the steering column bracket to the I/P lower support beam.

    Tighten:  Tighten both upper and locker bracket bolts to 10 N.m (89 lb in).

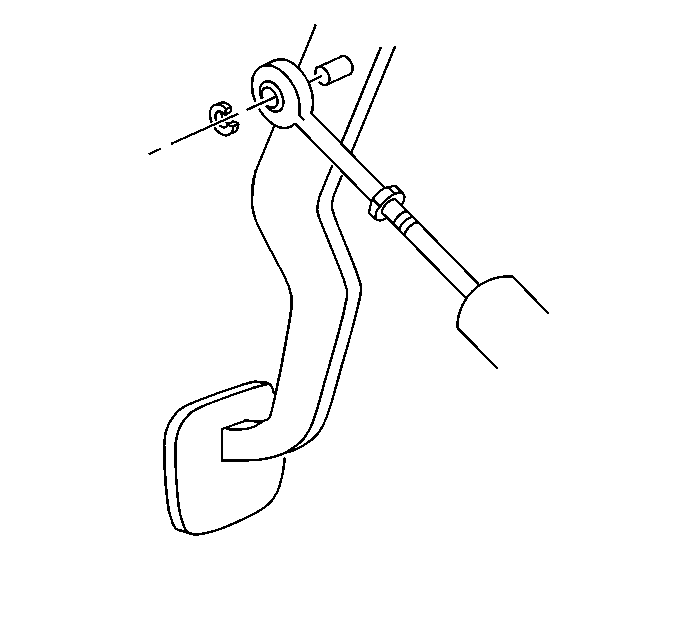

    4. Fig 3: View Of Master Cylinder Push Rod To Clutch Pedal
    GM71474Courtesy of GENERAL MOTORS CORP.
  4. Connect the master cylinder push rod to the clutch pedal.

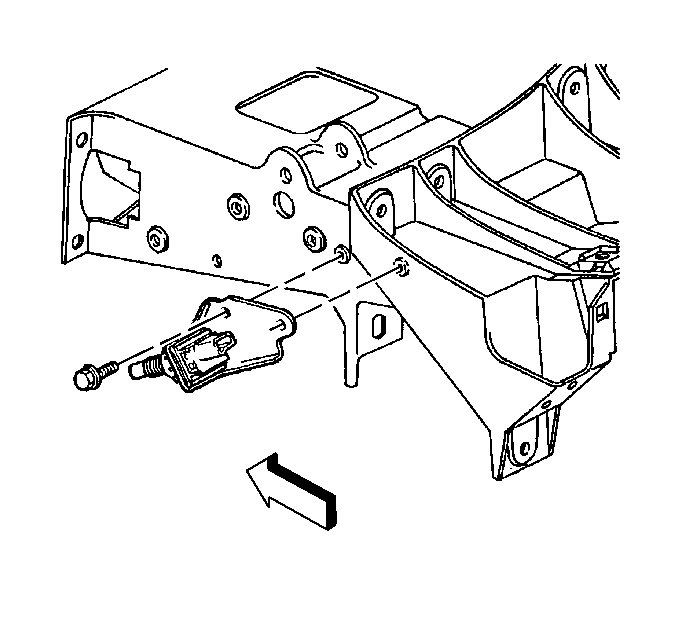

    5. Fig 4: View Of Cruise Control Release Switch, Bracket & Bolts
    GM71494Courtesy of GENERAL MOTORS CORP.
  5. Position the cruise control release switch and bracket to the steering column bracket.
  6. Install the bracket bolts to the cruise control release switch.

    Tighten:  Tighten the bracket bolts to 12 N.m (106 lb in).

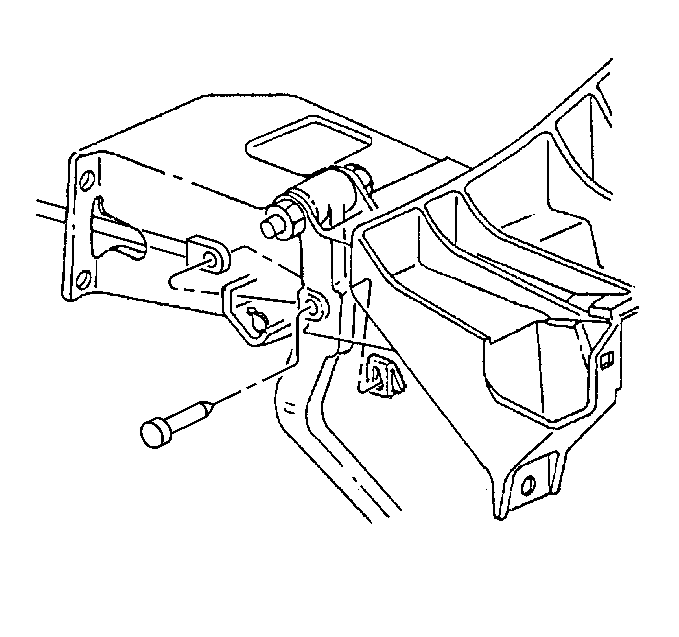

    7. Fig 5: View Of Brake Master Cylinder Push Rod
    GM174198Courtesy of GENERAL MOTORS CORP.
  7. Install the brake booster nuts.

    Tighten:  Tighten the nuts to 29 N.m (21 lb ft).

  8. Connect the master cylinder push rod to the brake pedal.
  9. Install the accelerator pedal assembly with the accelerator pedal position sensor.
  10. Install the left windshield side garnish molding. Refer to Windshield Side Garnish Molding Replacement .
  11. Install the steering column to the steering column bracket. Refer to Steering Column Replacement .
  12. Install the console. Refer to Console Replacement .
  13. Install the I/P assembly. Refer to Instrument Panel Assembly Replacement .
  14. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (6.0L) or Battery Negative Cable Disconnection and Connection (7.0L) .
  15. Enable the SIR system. Refer to SIR Disabling and Enabling .
