Console Compartment Door Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

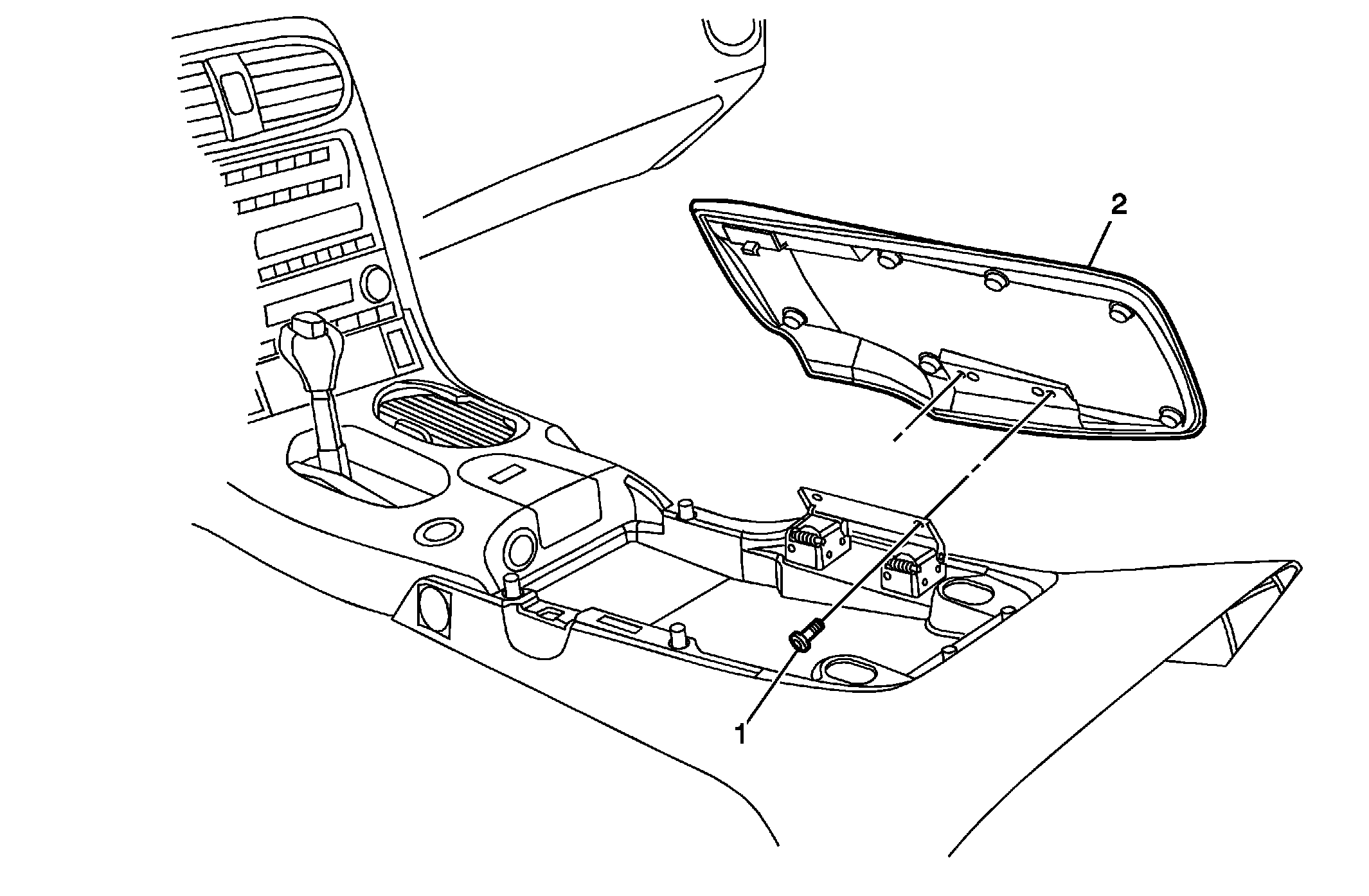

Fig 1: Console Compartment Door
GM1469883Courtesy of GENERAL MOTORS CORP.
Console Compartment Door Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Screws, Console Door (Qty: 4)

Tighten:  2 N.m (18 lb in)
2 Door Assembly, Floor Console
