Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

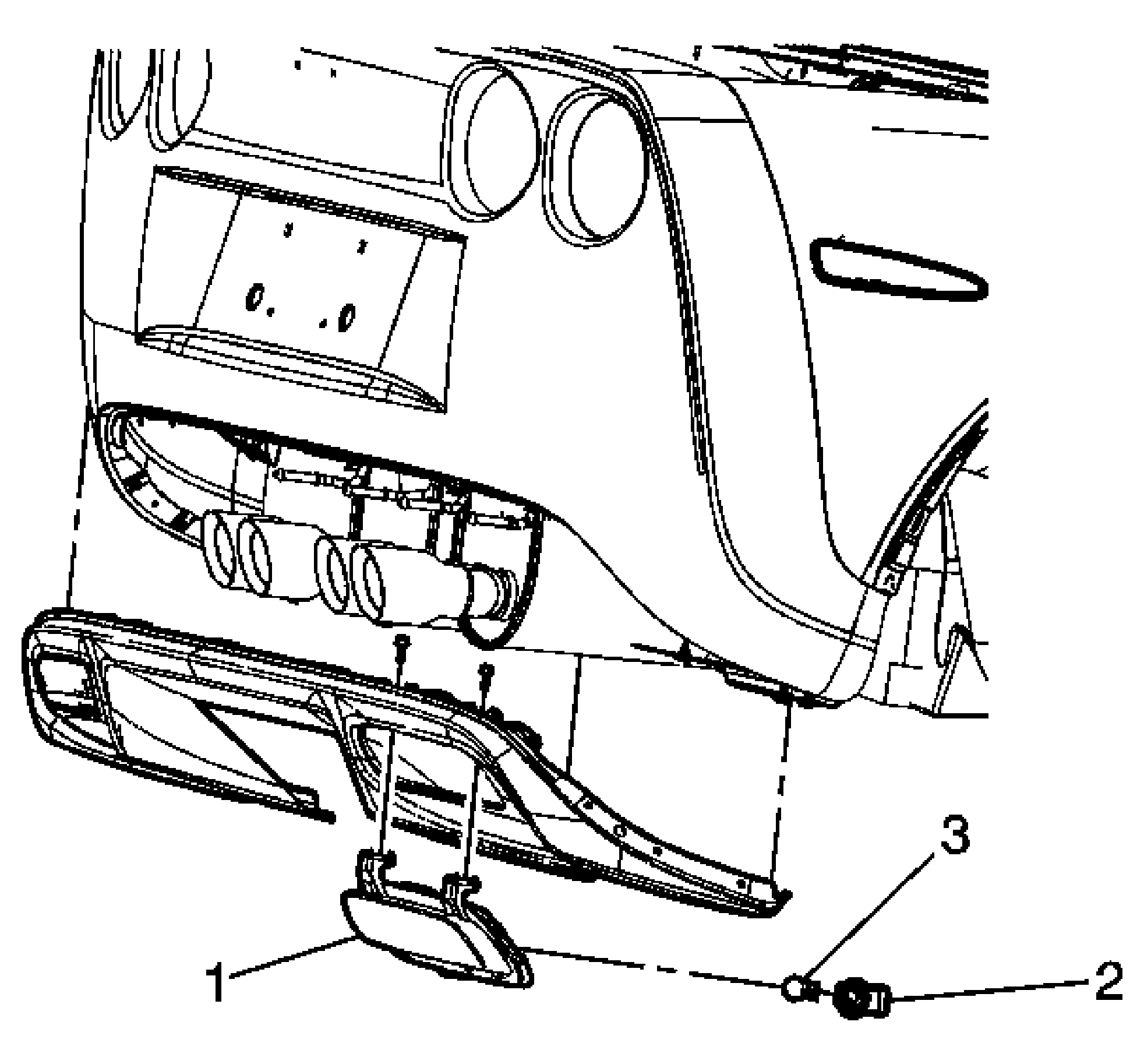

Fig 1: View Of Backup Lamp Bulb & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear fascia extension. Refer to Rear Bumper Fascia Extension Replacement .
1	Rear Back Up Lamp Assembly
2	Rear Back Up Lamp Socket Assembly Tip: Rotate the socket counter-clockwise in order to remove the socket from the lamp.
3	Rear Back Up Lamp Bulb
