Body Control System Schematics

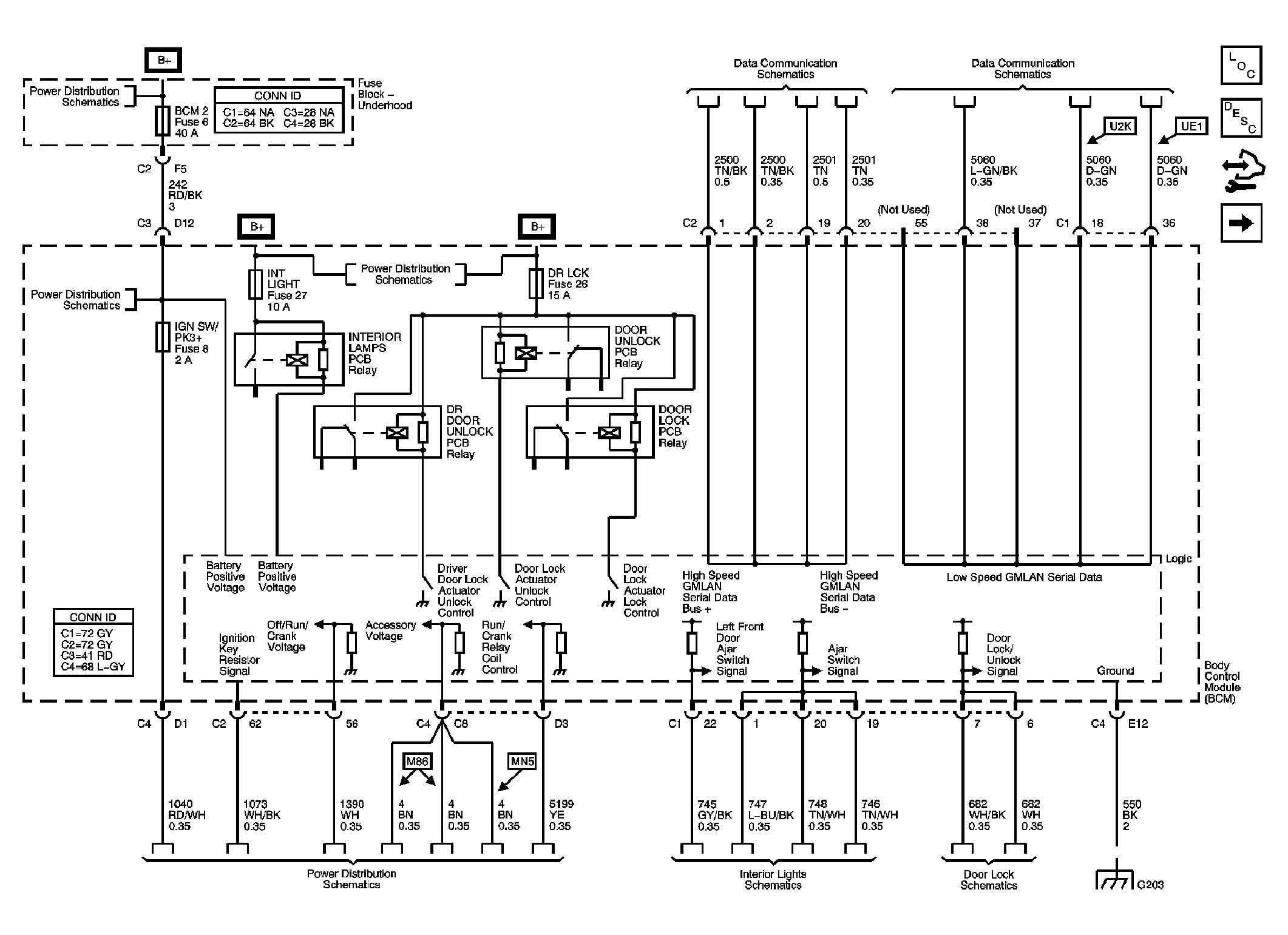

Fig 1: Door Lock Indicators, Power, Ground, Data Link, and Engine References
GM1769523Courtesy of GENERAL MOTORS CORP.

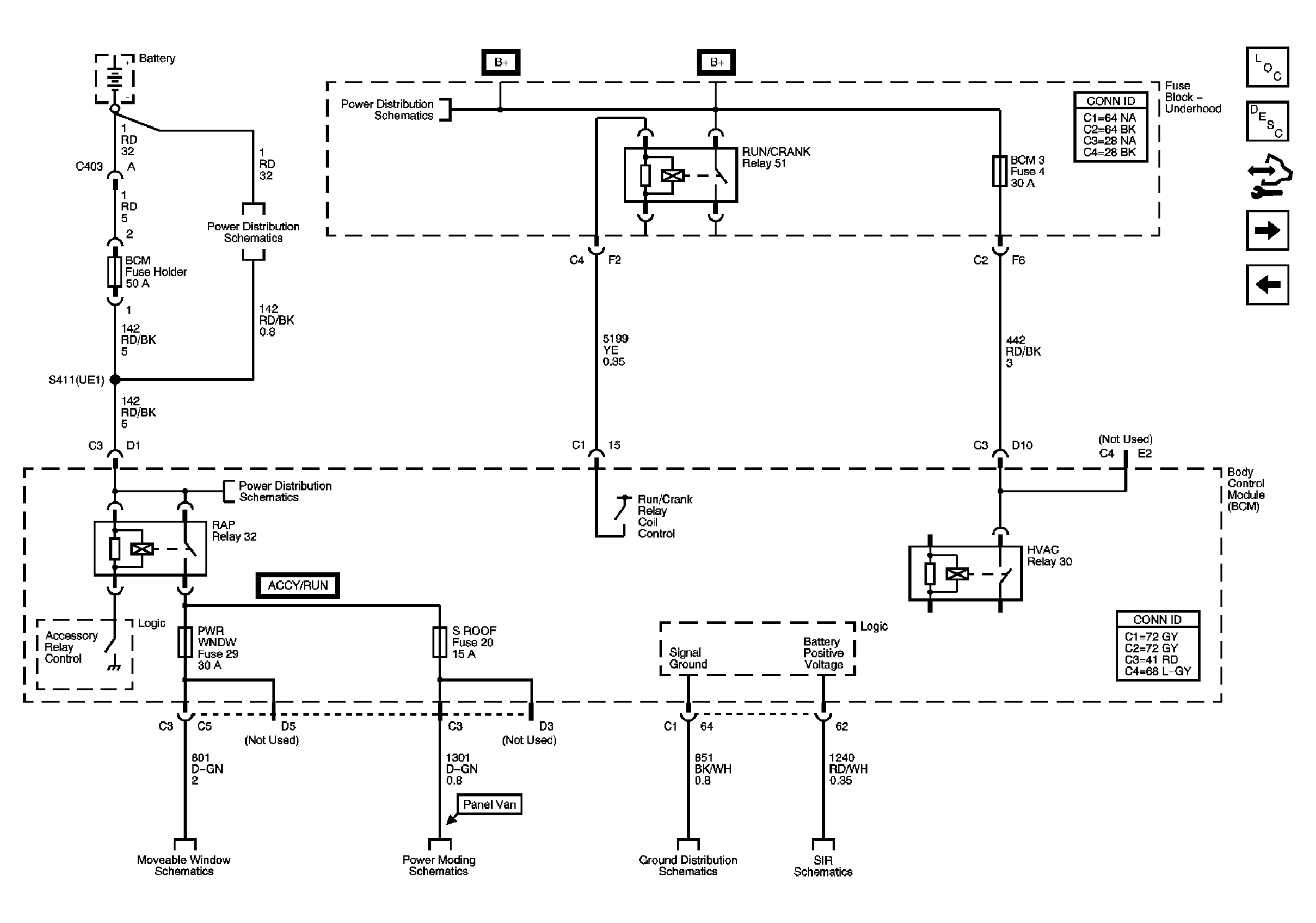

Fig 2: RUN/CRANK, RAP, HVAC Relays, BCM3, PWR WNDW, SROOF Fuses
GM1769534Courtesy of GENERAL MOTORS CORP.

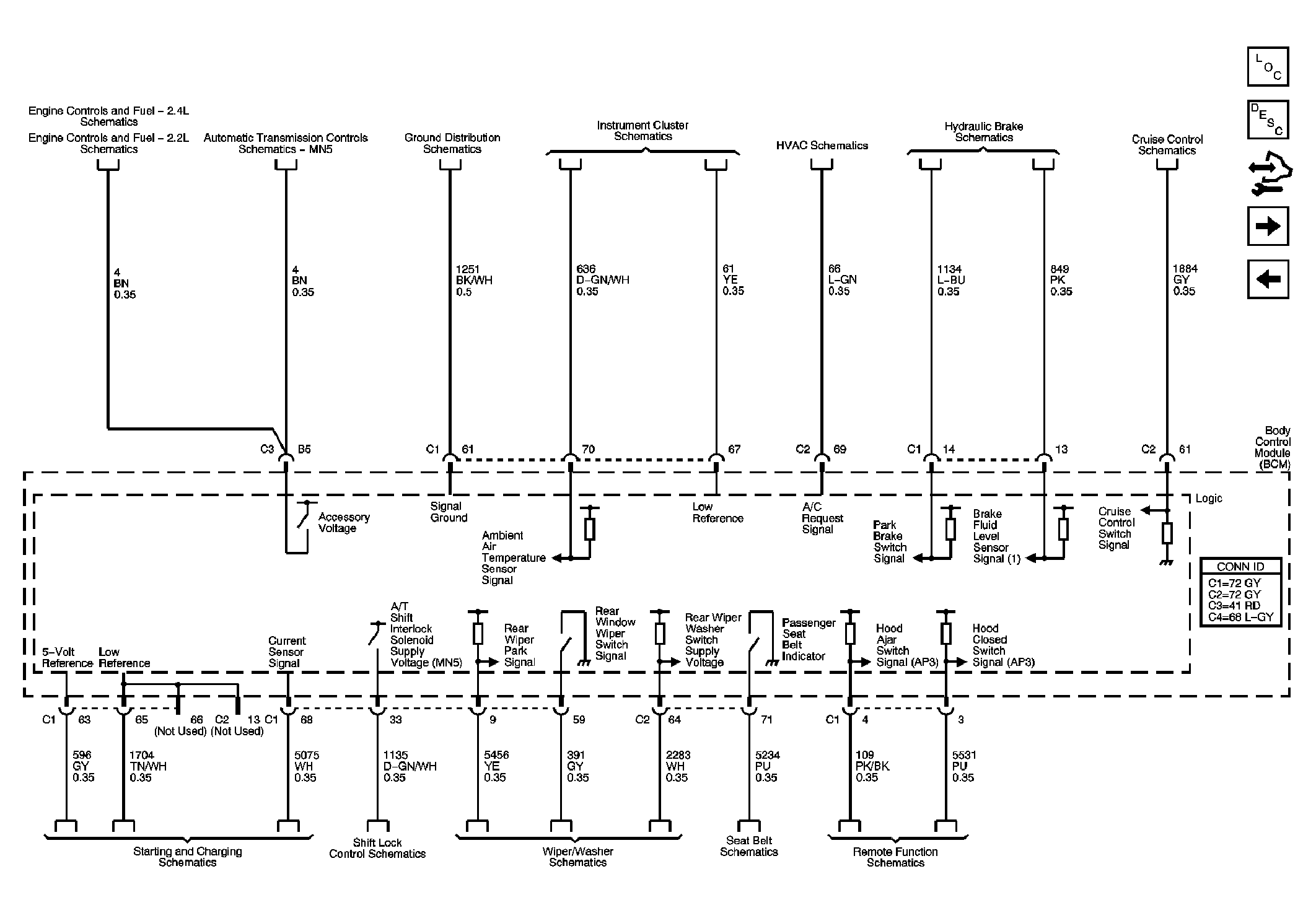

Fig 3: SIR, Shift Lock Control, ABS, Brake Warning, Cruise Control, Keyless Entry, Wiper/Washer, Engine Controls
GM1769536Courtesy of GENERAL MOTORS CORP.

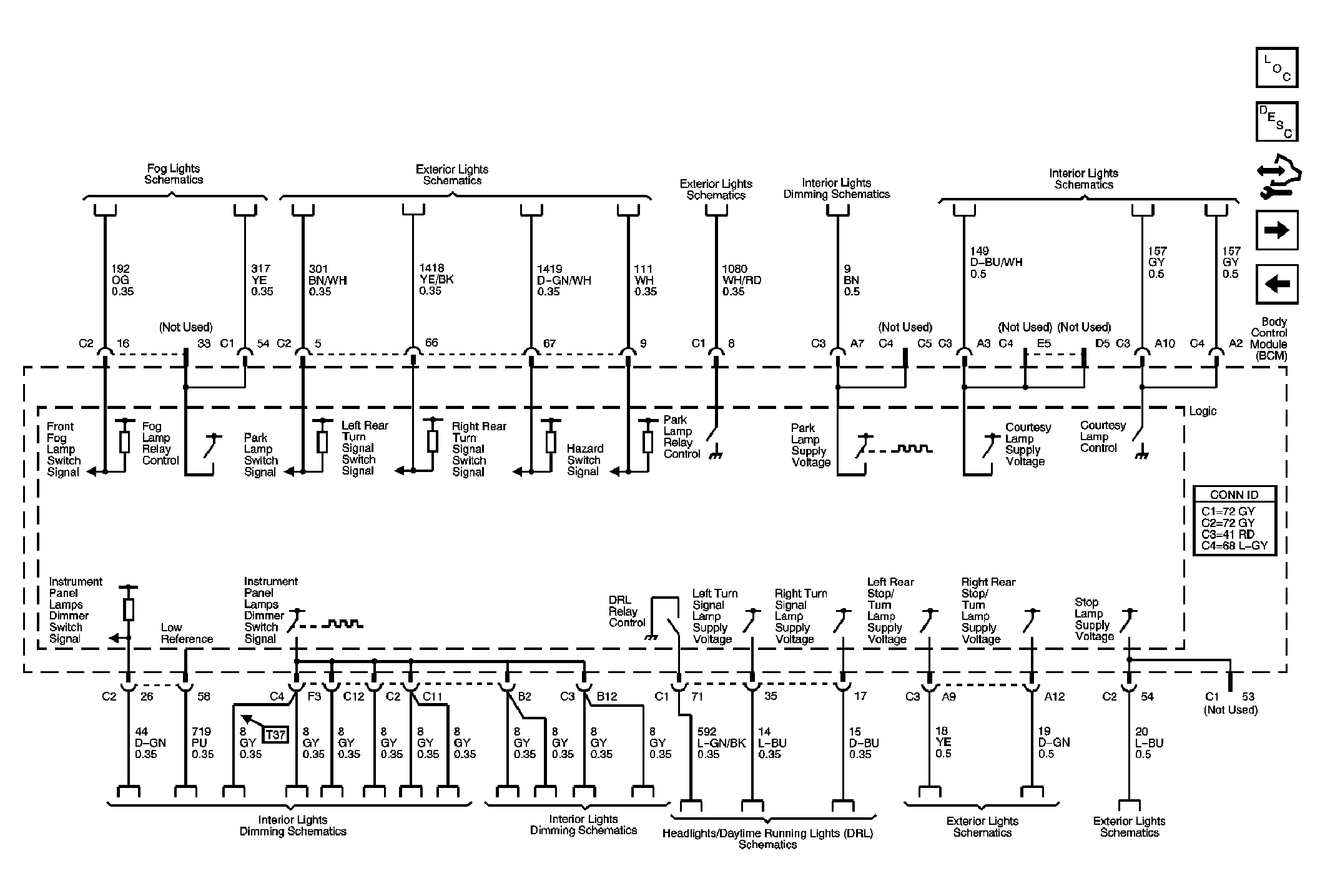

Fig 4: Lighting System References
GM1769540Courtesy of GENERAL MOTORS CORP.

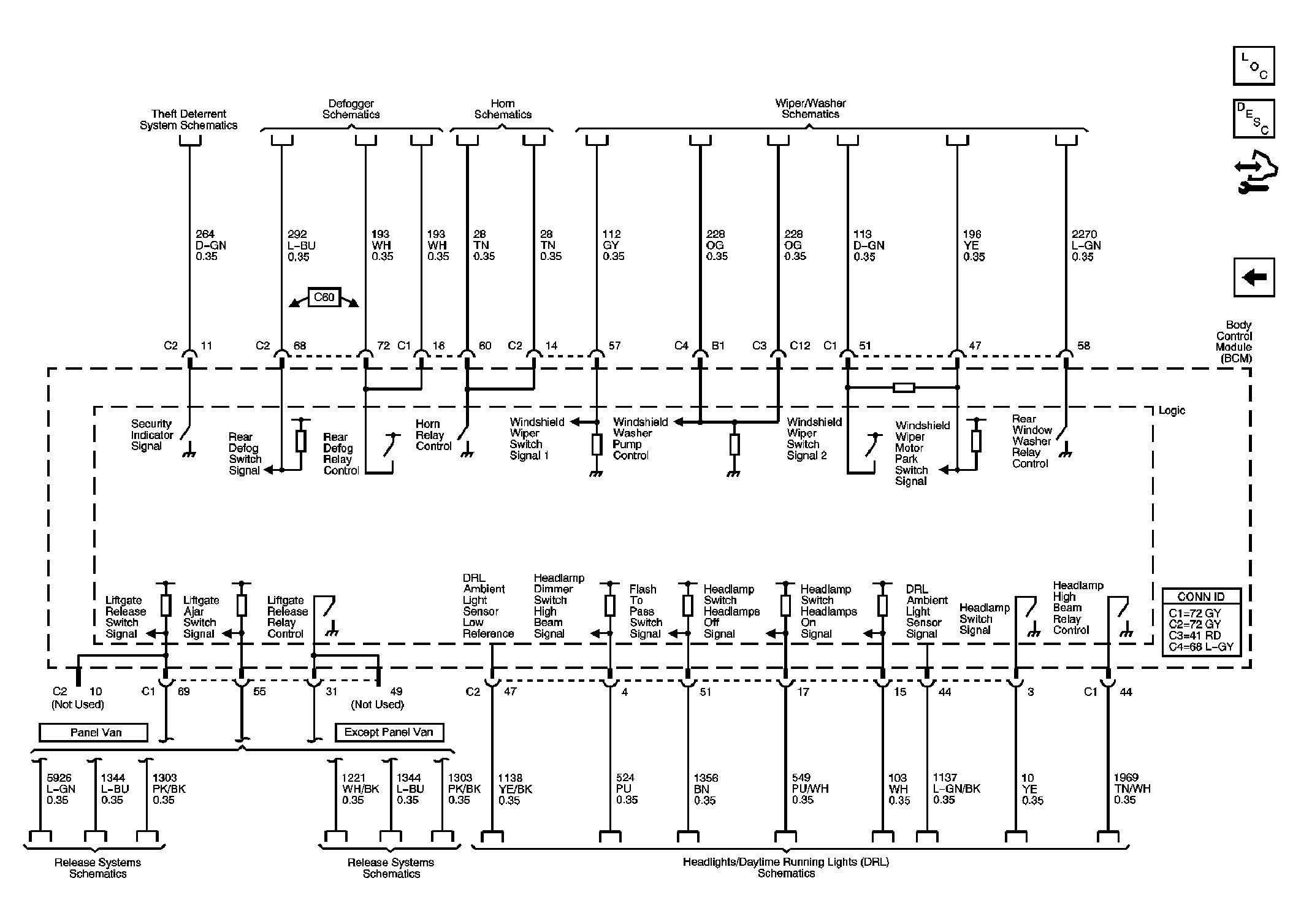

Fig 5: Body Rear End, Defogger, Headlights, DRL, Horns, and Wiper/Washer References
GM1769543Courtesy of GENERAL MOTORS CORP.
