Seat Belt Component Views

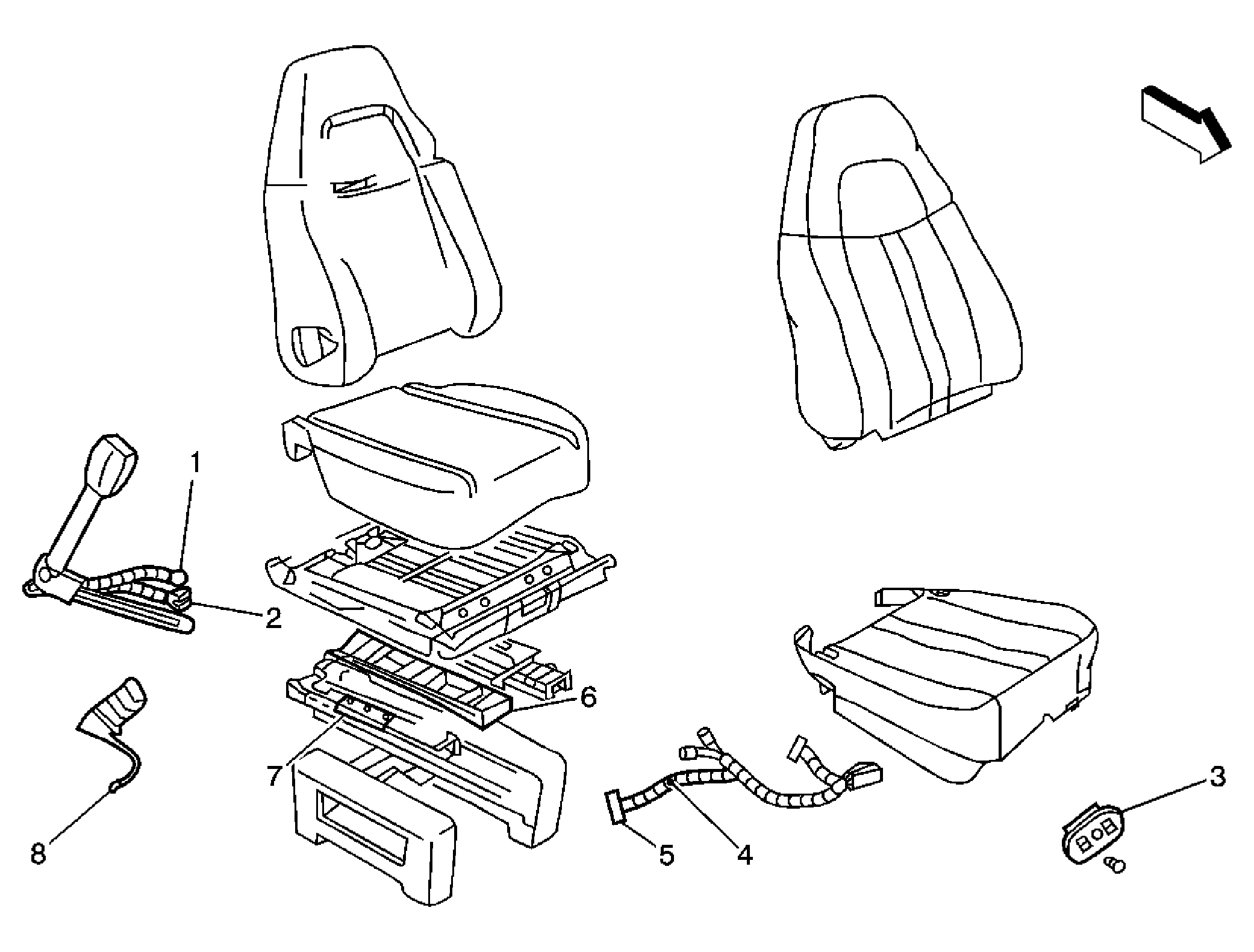

Fig 1: Driver Seat

GM1609204

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Buckle Driver - C1 (Light Duty)
2	Seat Belt Buckle Driver - C2 (Light Duty)
3	Seat Adjuster Switch - Driver (AG1)
4	S304 (AG1)
5	C307
6	Seat Motors - Driver (AG1)
7	Inflatable Restraint Seat Position Sensor (SPS) - Left (Light Duty)
8	Seat Belt Buckle Connector - Driver (Heavy Duty)

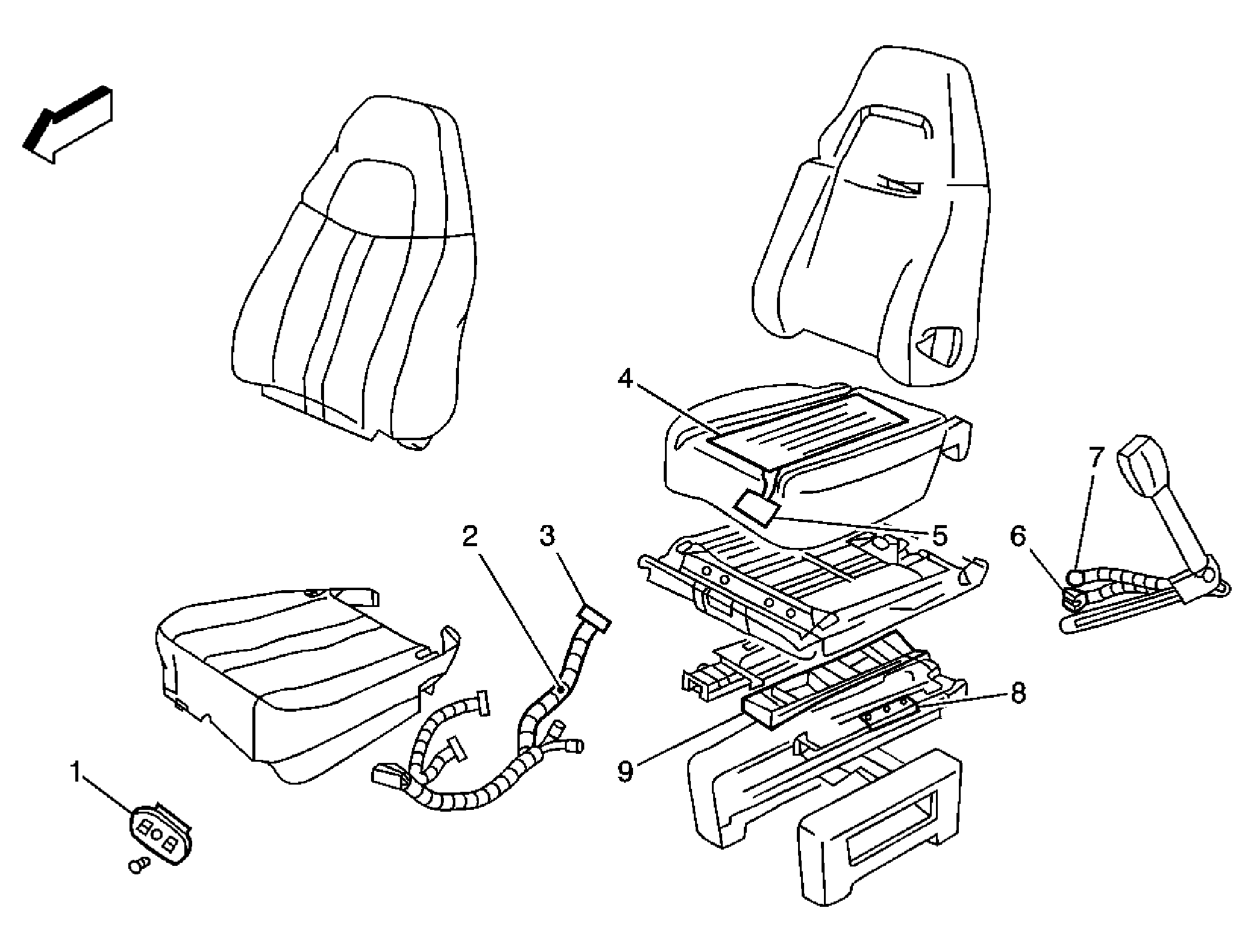

Fig 2: Passenger Seat

GM1609206

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Switch - Passenger (AG2)
2	S317 (Light Duty w/AG2)
3	C306
4	Inflatable Restraint Passenger Presence System (PPS) Sensor (Light Duty w/o YF7)
5	Inflatable Restraint Passenger Presence System (PPS) Module (Light Duty w/o YF7)
6	Seat Belt Buckle Passenger - C2 (Light Duty)
7	Seat Belt Buckle Passenger - C1 (Light Duty)
8	Inflatable Restraint Seat Position Sensor (SPS) - Right (Light Duty)
9	Seat Motors - Passenger (AG2)
