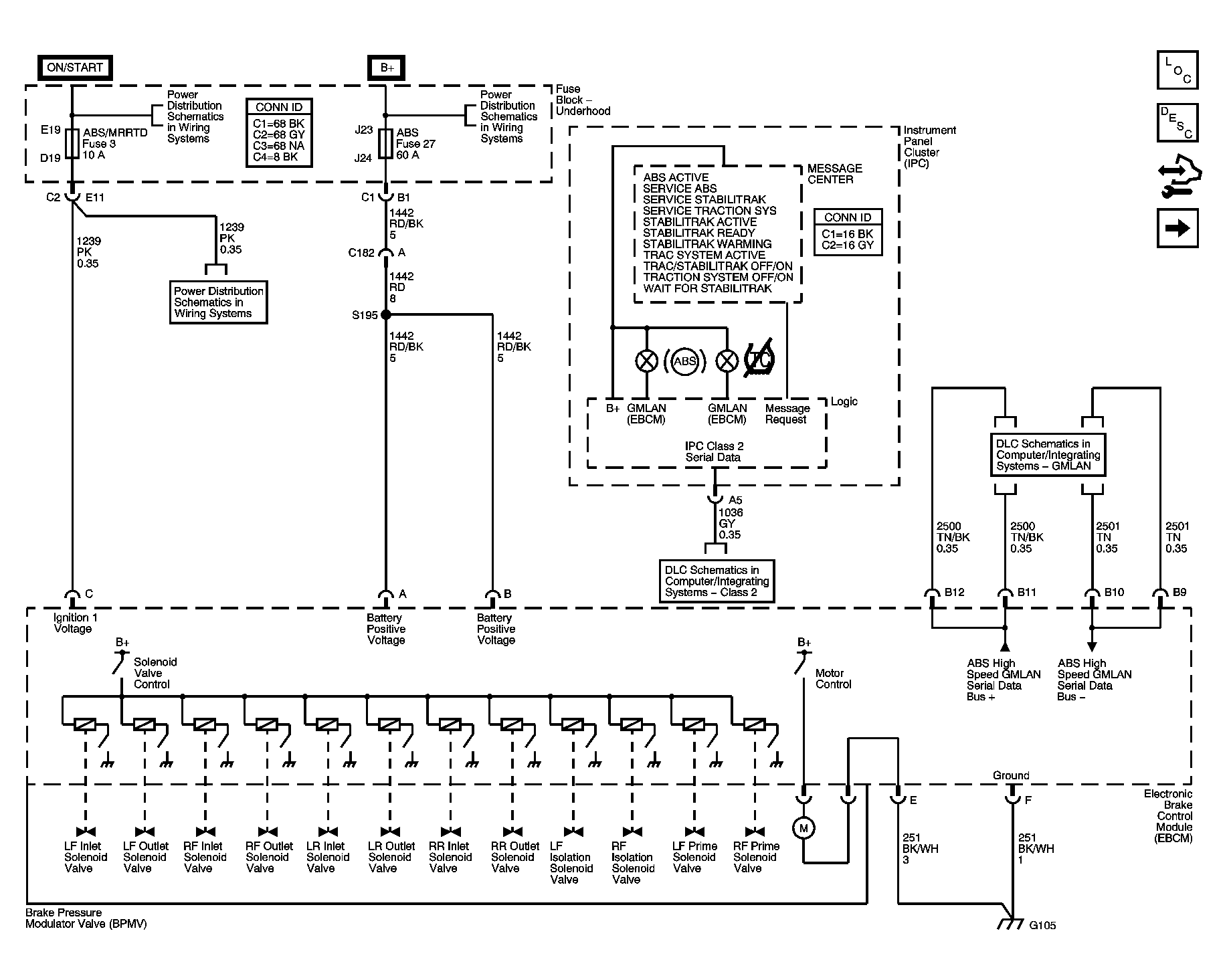

Fig 1: Ground, Indicators, Messages and Power - Wiring Diagram
Courtesy of GENERAL MOTORS CORP.

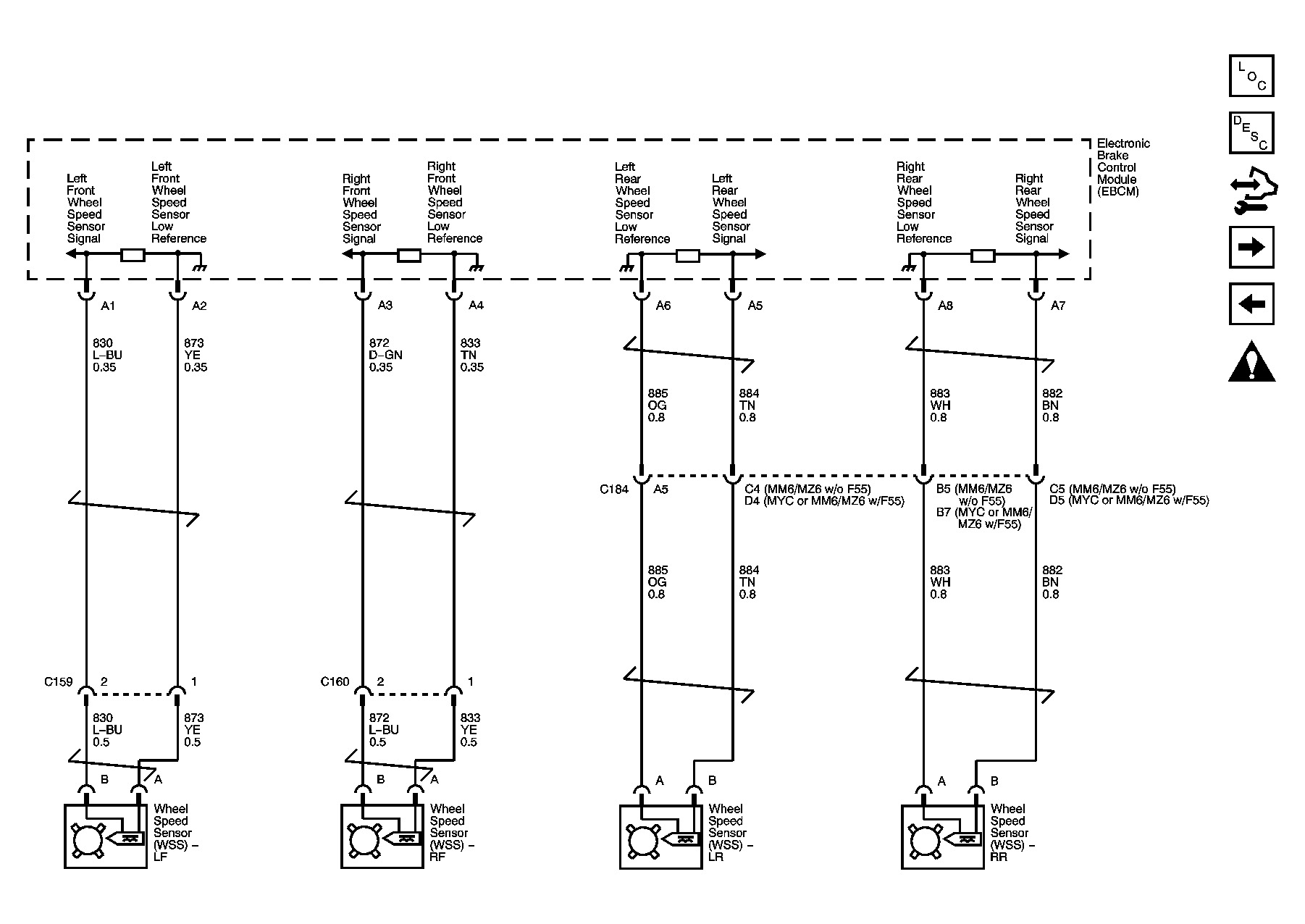

Fig 2: Wheel Speed Sensors - Wiring Diagram
Courtesy of GENERAL MOTORS CORP.

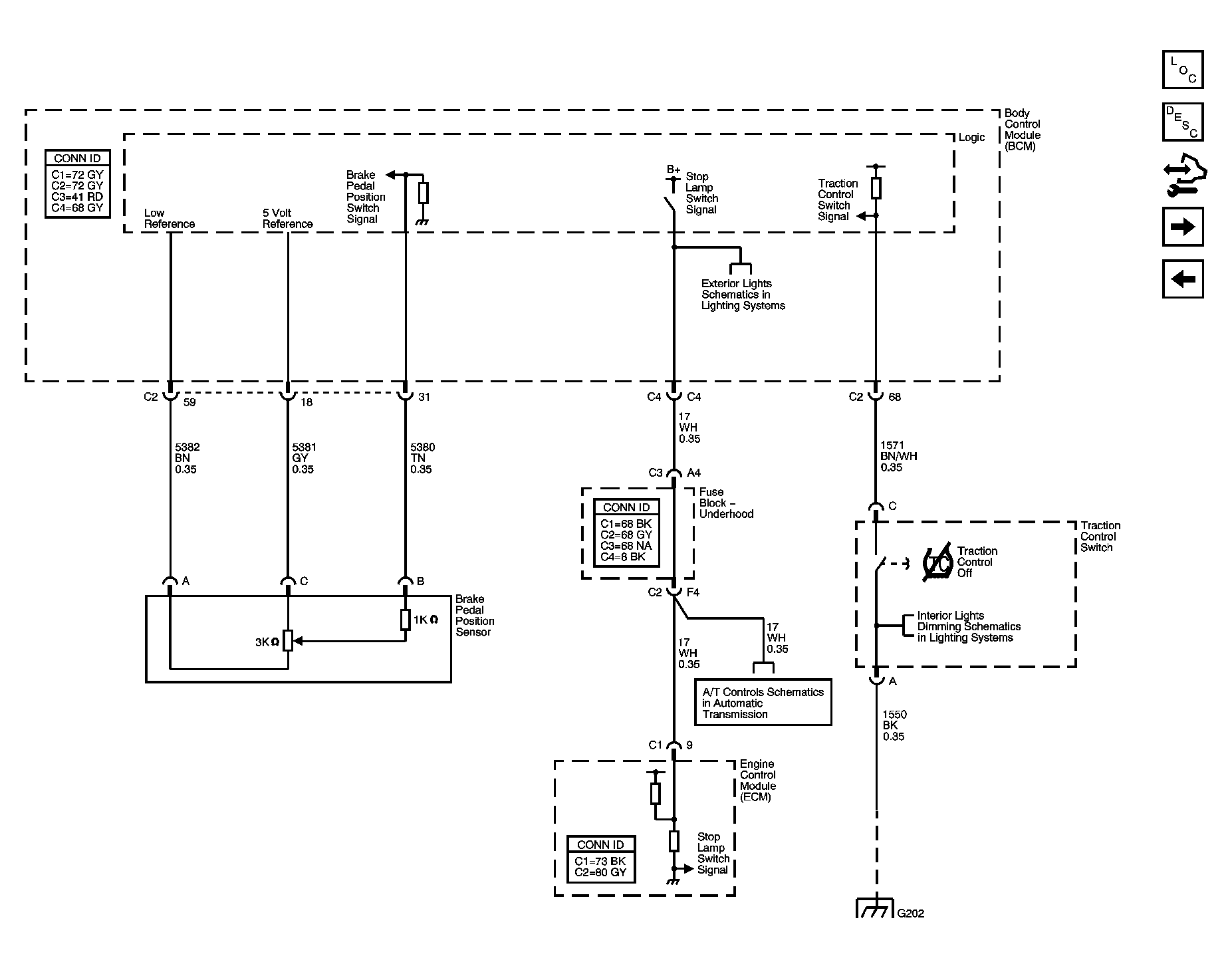

Fig 3: Brake Pedal Signal and Traction Control Switch - Wiring Diagram
