Disabling Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
  2. Place the ignition in the OFF position.
    3. Fig 1: Kick-Up Panel, I/P Fuse Block & Cover
    GM1246577Courtesy of GENERAL MOTORS CORP.
  3. Remove the kick-up panel (2) to expose the instrument panel (I/P) fuse block.
  4. Remove the I/P fuse block cover (1).
    Fig 2: Identifying SDM Fuse
    GM1246574Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: With the SDM fuse removed and the ignition in the ON position, the AIR BAG warning indicator illuminates. This is normal operation, and does not indicate an SIR system malfunction.
  5. Locate the SDM fuse within the I/P fuse block.
  6. Remove the SDM fuse from the I/P fuse block.

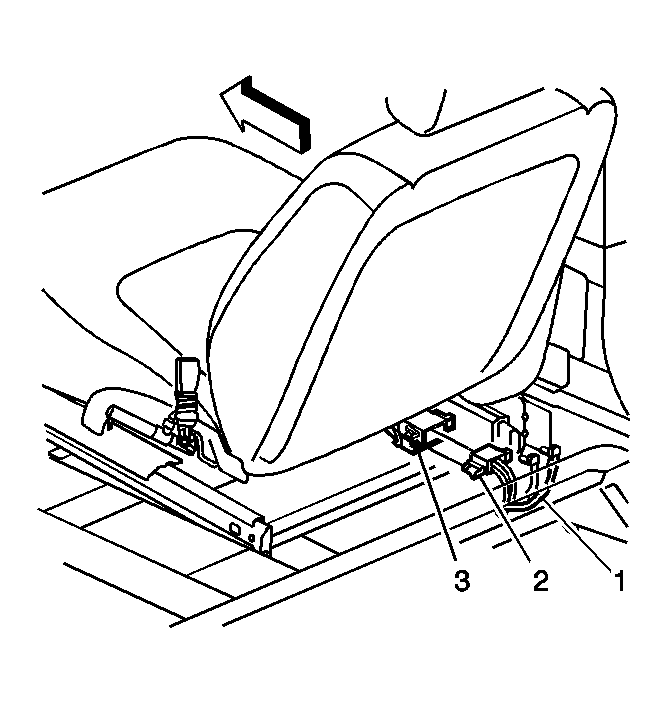

    7. Fig 3: View of Connector Position Assurance & Pretensioner Yellow Connector
    GM854383Courtesy of GENERAL MOTORS CORP.
  7. Remove both Connector Position Assurance (CPA) (1) from the RF/passenger side impact module and seat belt pretensioner yellow connector (3) which is located under the passenger seat.
  8. Disconnect the vehicle harness yellow connector (2) from the RF side impact module and pretensioner yellow connector (3).
