Power Folding Top Switch Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

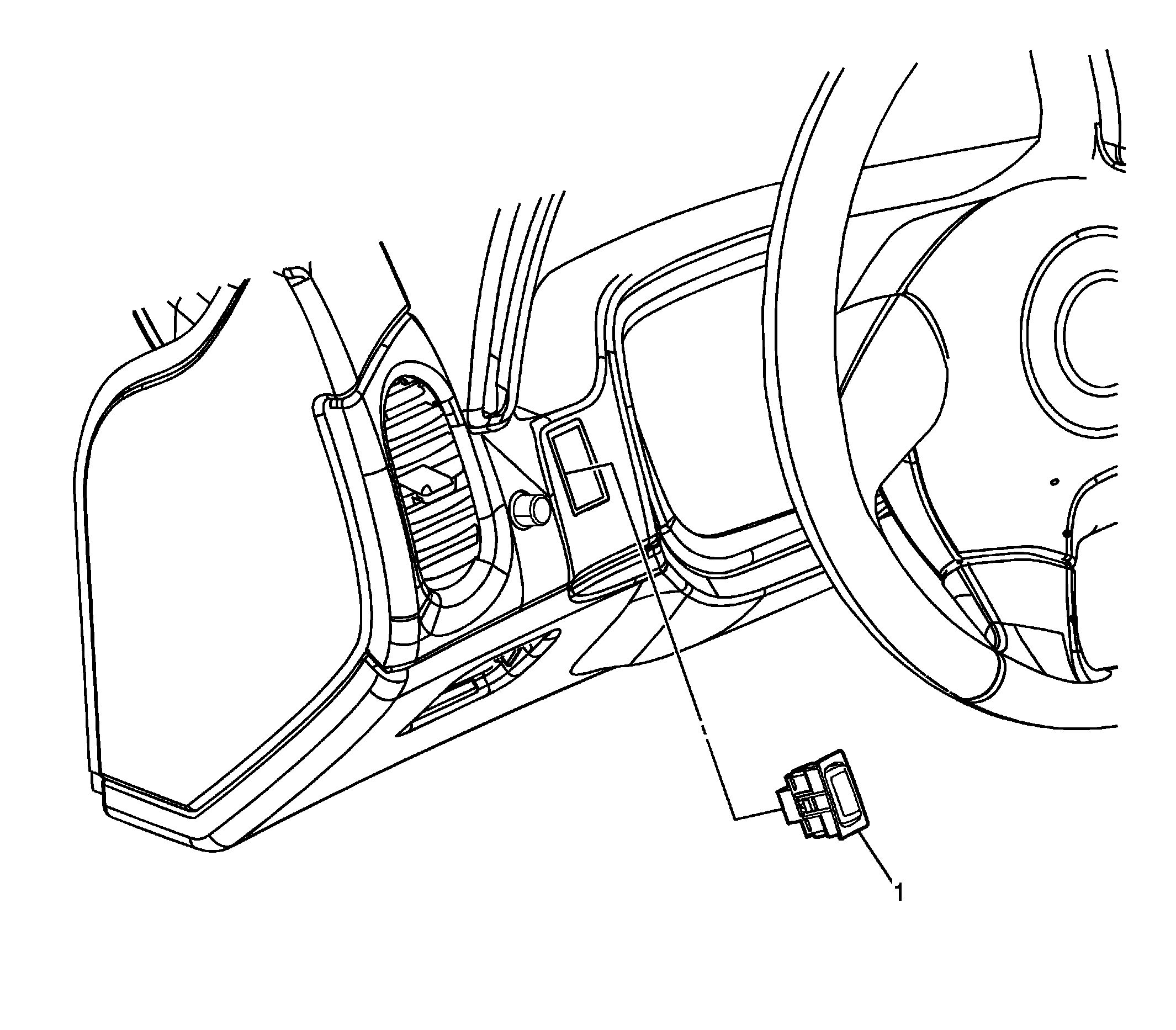

Fig 1: Replacing Power Folding Top Switch
GM1480502Courtesy of GENERAL MOTORS CORP.
Power Folding Top Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Switch, Power Folding Top
Tip:
  1. Use a flat bladed tool in order to release the switch from the instrument panel cluster trim plate.
  2. Disconnect the electrical connection.
