Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (6.0L)  or Battery Negative Cable Disconnection and Connection (7.0L) .
  2. Disconnect the positive battery cable from the battery.
  3. Remove the rear compartment carpet. Refer to Rear Compartment Floor Panel Carpet Replacement (Convertible) or Rear Compartment Floor Panel Carpet Replacement (Coupe) .
  4. Remove the passenger rear compartment front side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
  5. Remove the right door sill plate. Refer to Door Sill Plate Replacement .
  6. Lift up the carpet to access the battery cables.

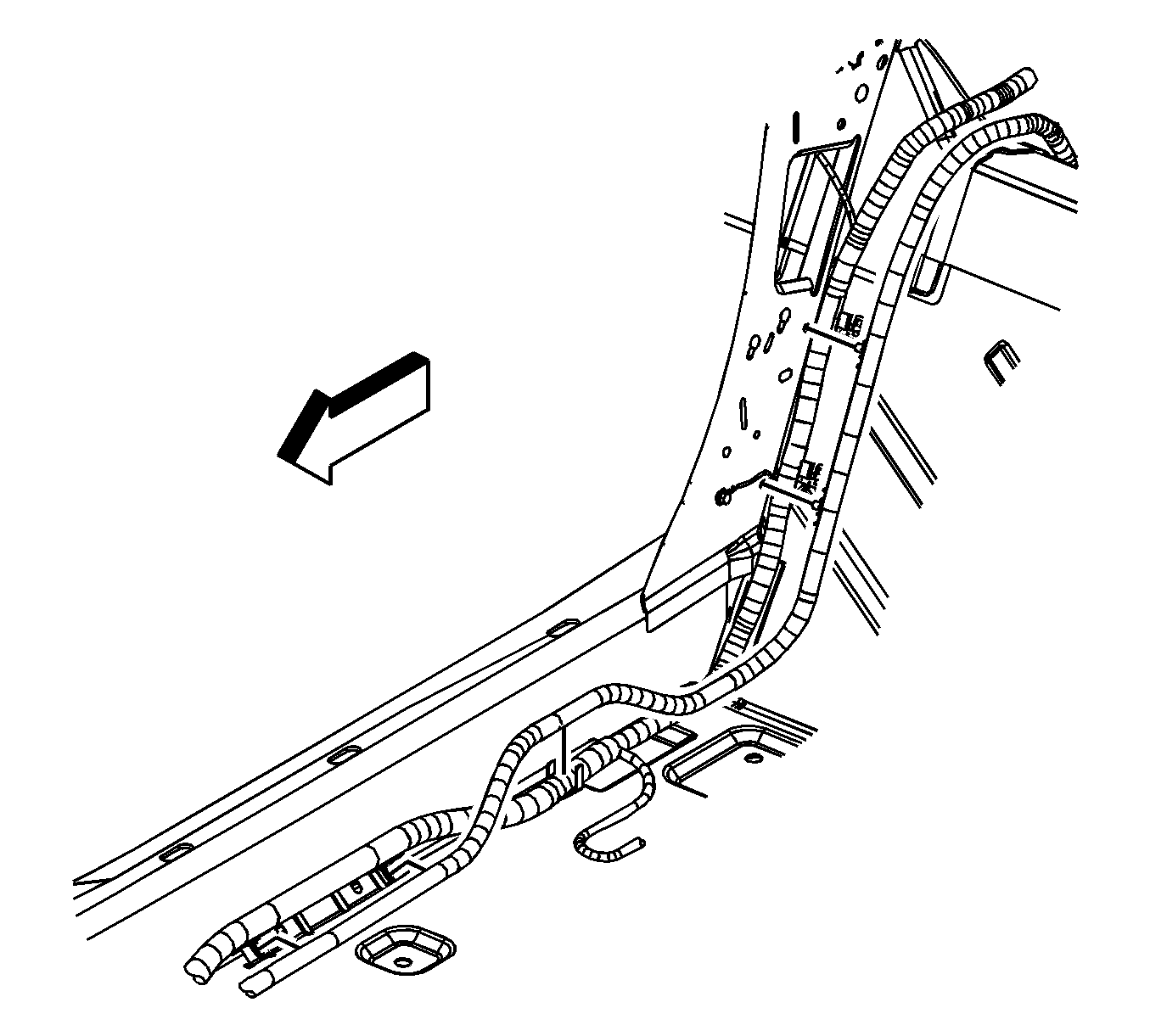

    7. Fig 1: View Of Positive Battery Cable Retainers
    GM1672703Courtesy of GENERAL MOTORS CORP.
  7. Remove the positive battery cable retainers.

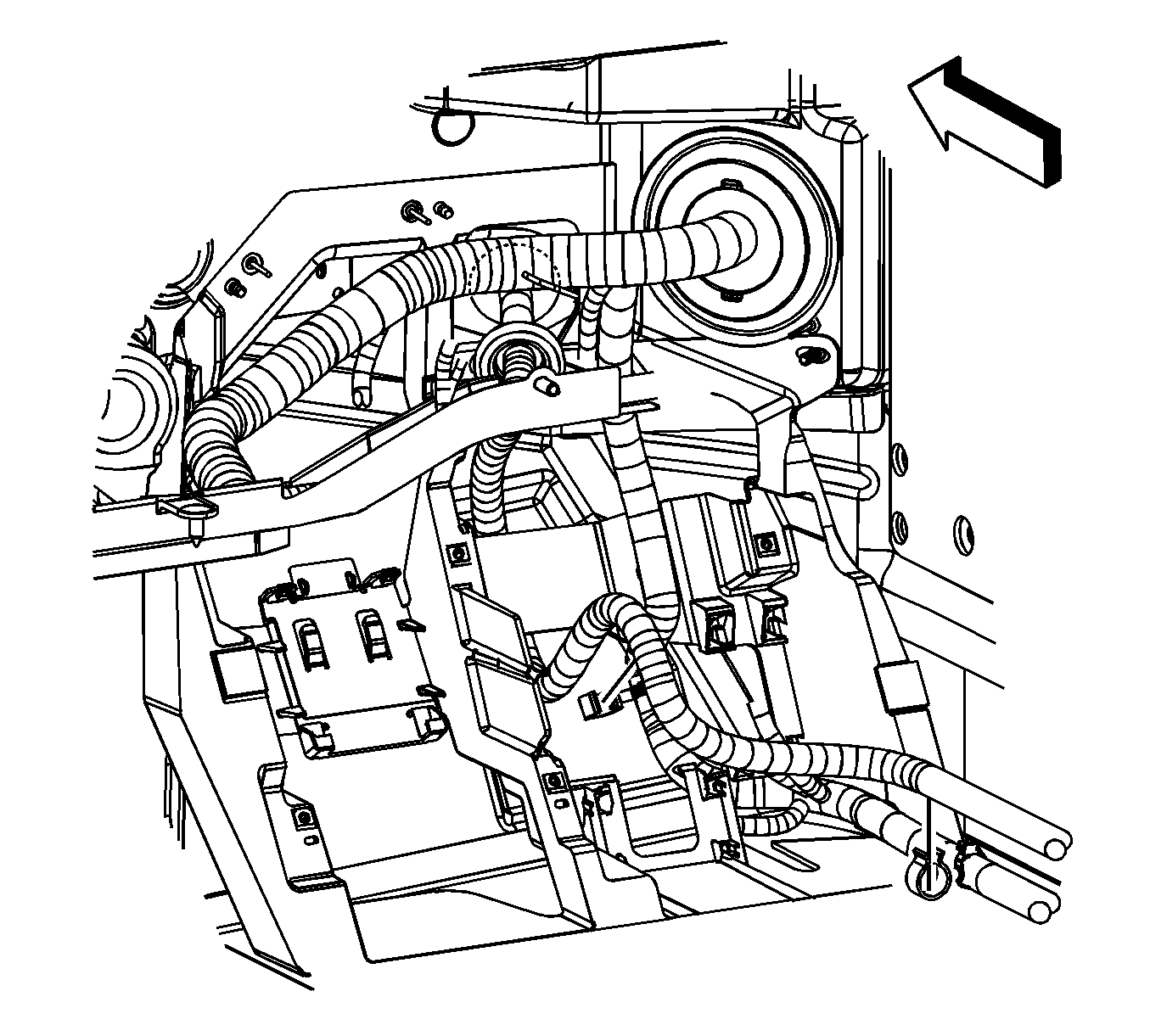

    8. Fig 2: View Of Positive Cable & Grommet
    GM1672702Courtesy of GENERAL MOTORS CORP.
  8. Open the carpet on the fuse/relay center.

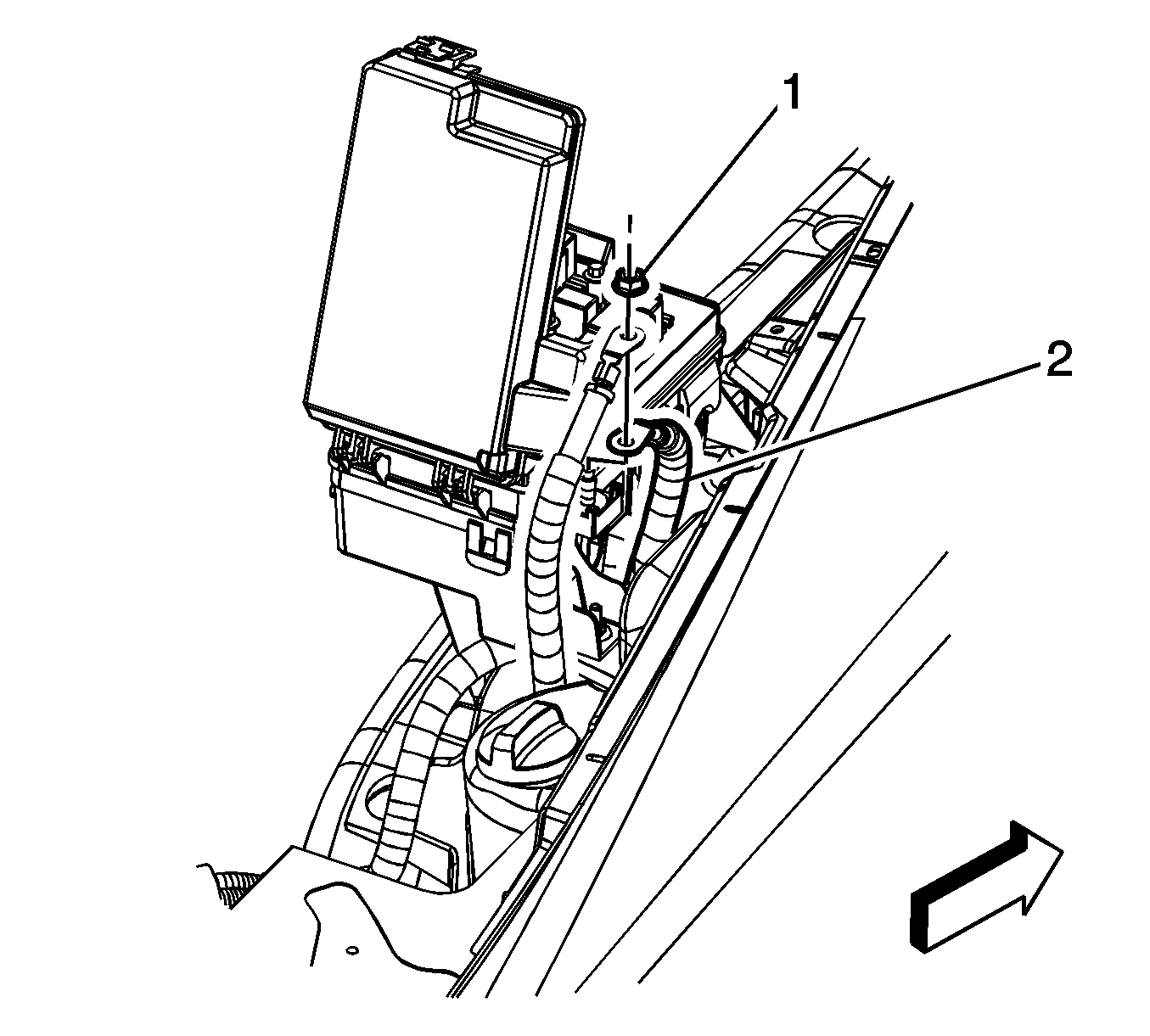

    9. Fig 3: View Of Positive Battery Cable Lead & Nut
    GM1704615Courtesy of GENERAL MOTORS CORP.
  9. Remove the positive battery cable nut (1) from the fuse/relay center stud.
  10. Remove the positive battery cable lead (2) from the fuse/relay center stud.
  11. Remove the positive battery cable grommet from the dash panel.
  12. Pull the positive cable through the dash panel.
  13. Remove the positive battery cable.
