Entertainment/Communication Component Views

Fig 1: Component View - RR Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Antenna
2	Lower Cowl

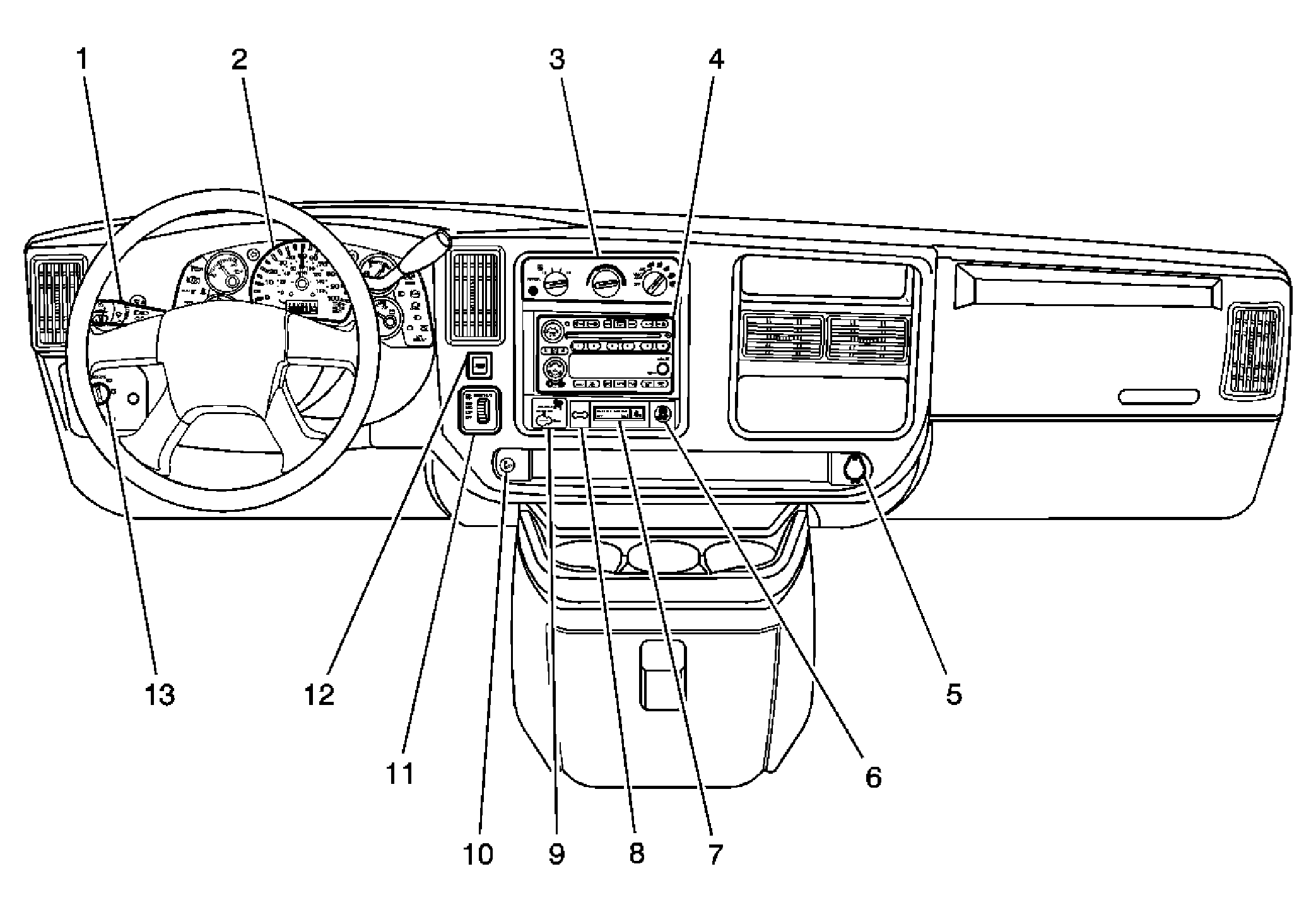

Fig 2: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Instrument Panel Cluster (IPC)
3	HVAC Control Assembly
4	Radio
5	Auxiliary Power Outlet 2
6	Traction Control Switch (JL4)
7	Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator (Light Duty w/o YF7)
8	High Idle Switch (UF3)
9	Inflatable Restraint I/P Disable Switch (Heavy Duty)
10	Cigar Lighter (DT4)/Auxiliary Power Outlet 1 (w/o DT4)
11	Blower Motor Switch - Auxiliary (C36)
12	Tow/Haul Switch
13	Headlamp and Panel Dimmer Switch

Fig 3: Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Driver
2	Window Switch - Driver (A31)
3	Outside Rearview Mirror - Driver
4	Outside Rearview Mirror Switch (DE5/DE7)
5	Window Motor - Driver (A31)
6	Speaker - LF Door
7	Door Lock Switch - Driver (AU3)

Fig 4: Front Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Front Passenger (A31)
2	Outside Rearview Mirror - Passenger
3	Door Latch Assembly - Passenger
4	Door Lock Switch - Front Passenger (AU3)
5	Speaker - RF Door
6	Window Motor - Passenger (A31)

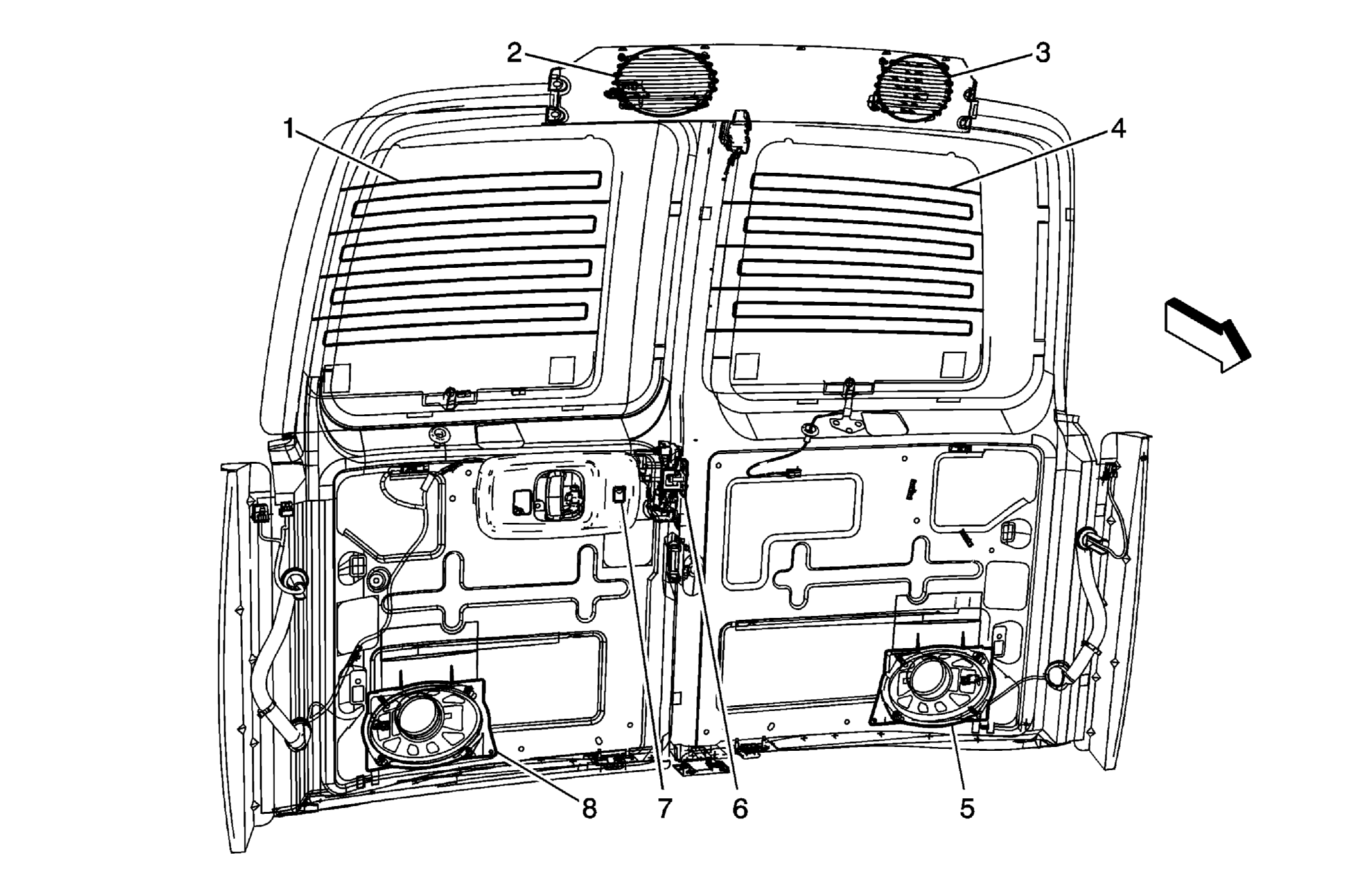

Fig 5: Rear Doors (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid - Right (C49)
2	Speaker - RR
3	Speaker - LR
4	Rear Window Defogger Grid - Left (C49)
5	Speaker - LR Door (UB1/UC6)
6	Door Latch Assembly - Cargo
7	Door Lock Switch - Rear Cargo (AU3)
8	Speaker - RR Door (UB1/UC6)
