Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Fuse Block - Underhood
Courtesy of GENERAL MOTORS CORP.
Fig 2: Fuse Block - Body
Courtesy of GENERAL MOTORS CORP.
Fig 3: Fuse Block - Rear
Courtesy of GENERAL MOTORS CORP.

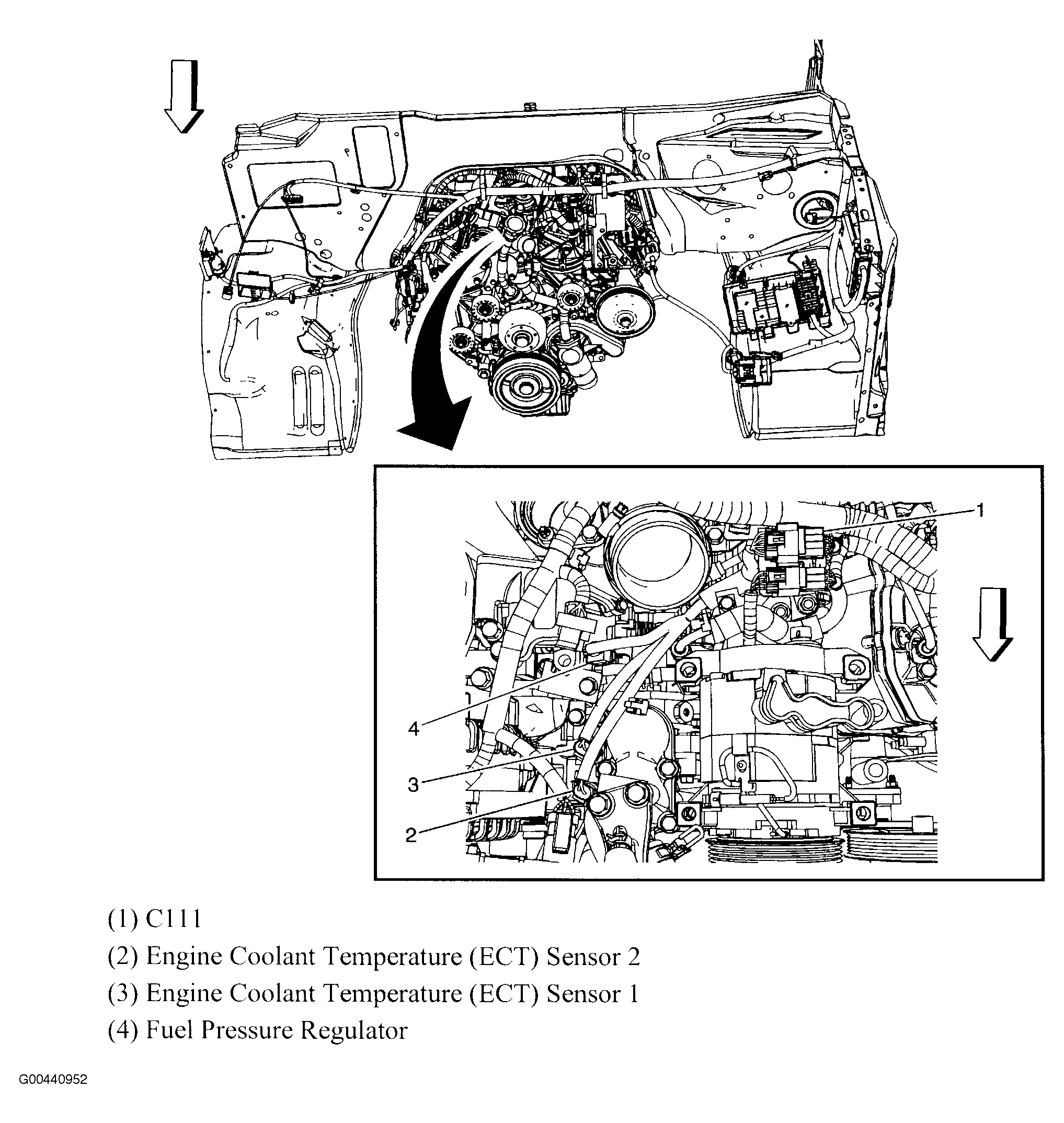

Fig 4: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 5: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 6: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 7: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 8: Lower Right Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 9: Rear Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Rear Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.

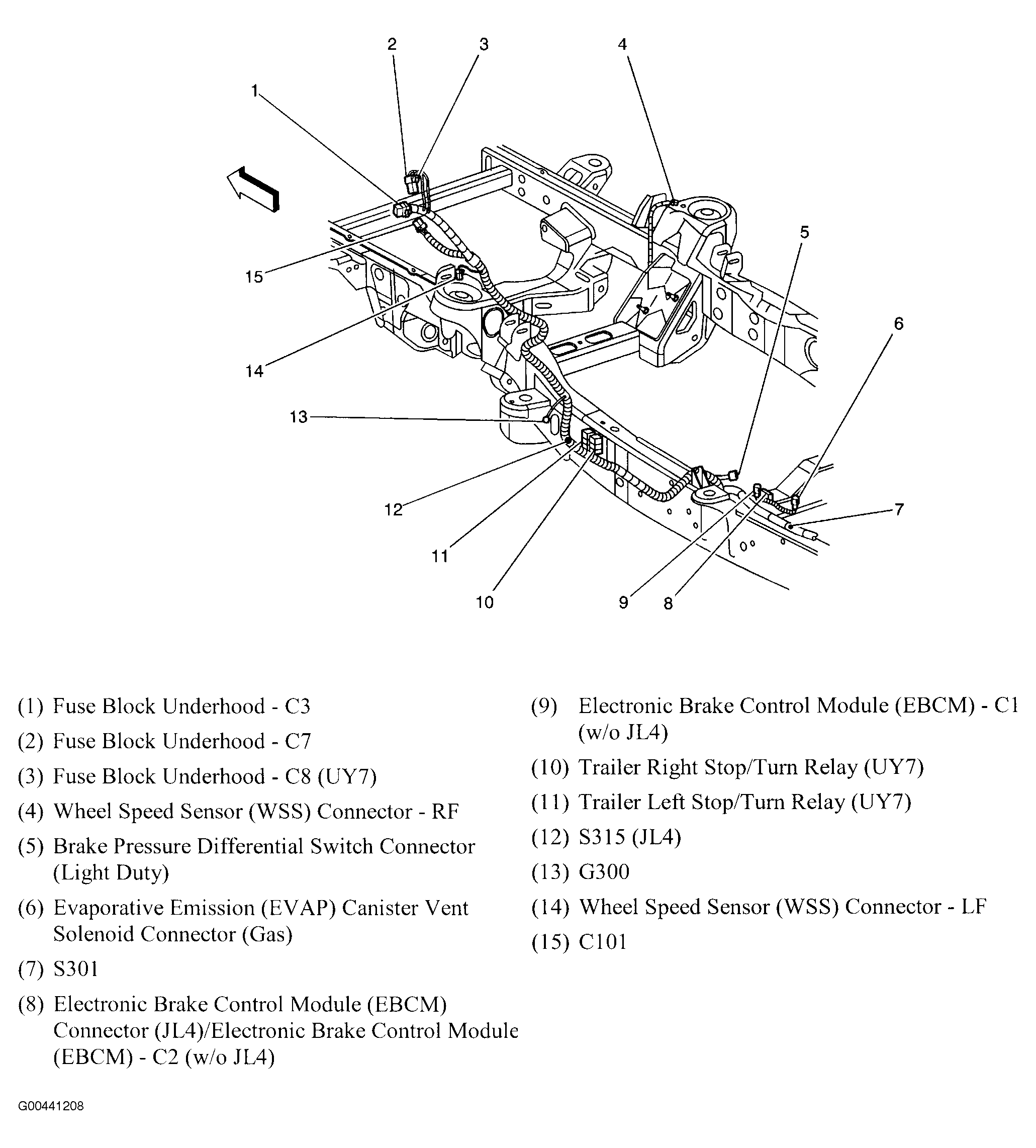

Fig 11: Front Chassis (Passenger/Cargo)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 13: Upper Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.

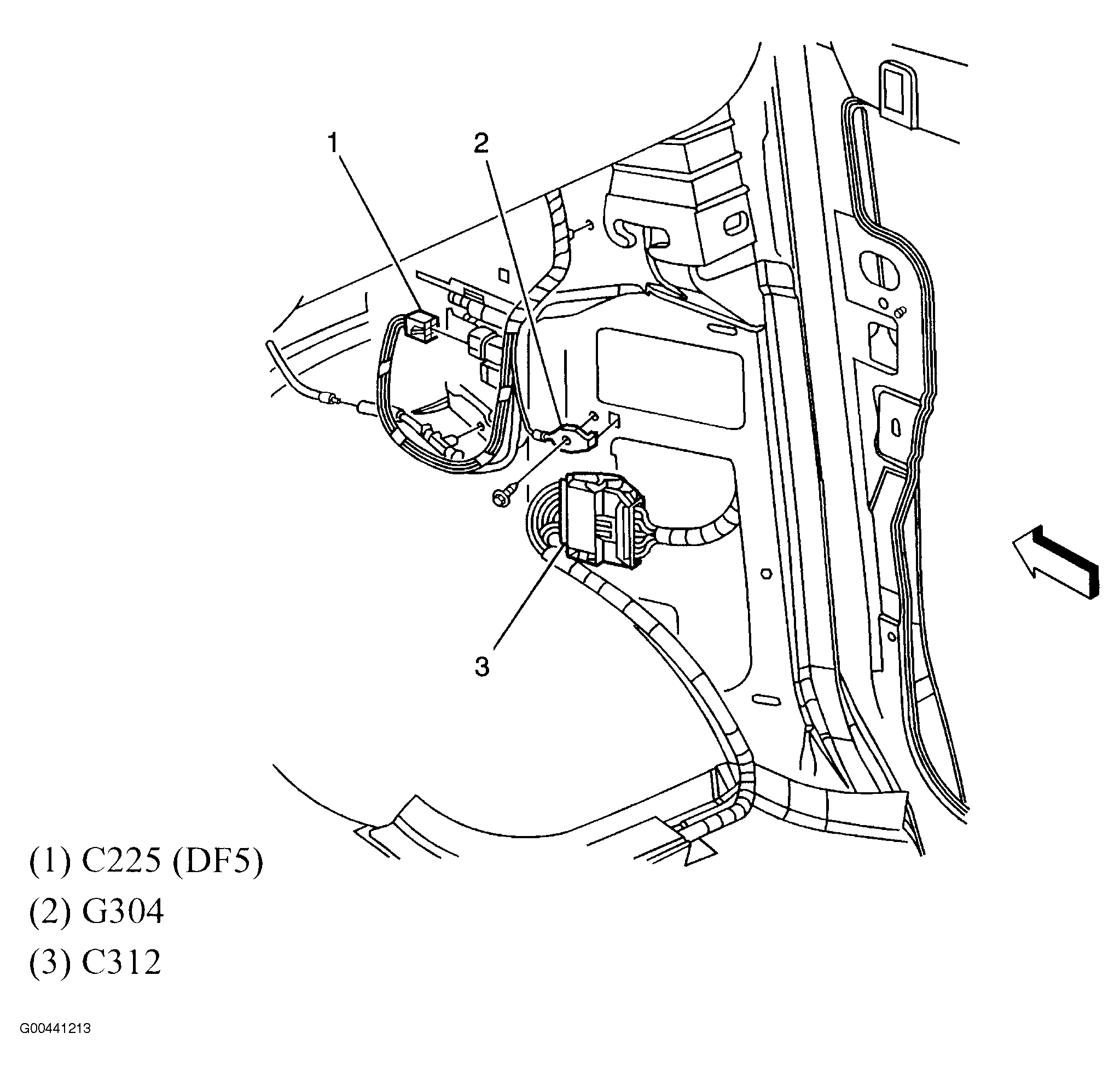

Fig 15: Left "B" Pillar (Passenger/Cargo)
Courtesy of GENERAL MOTORS CORP.

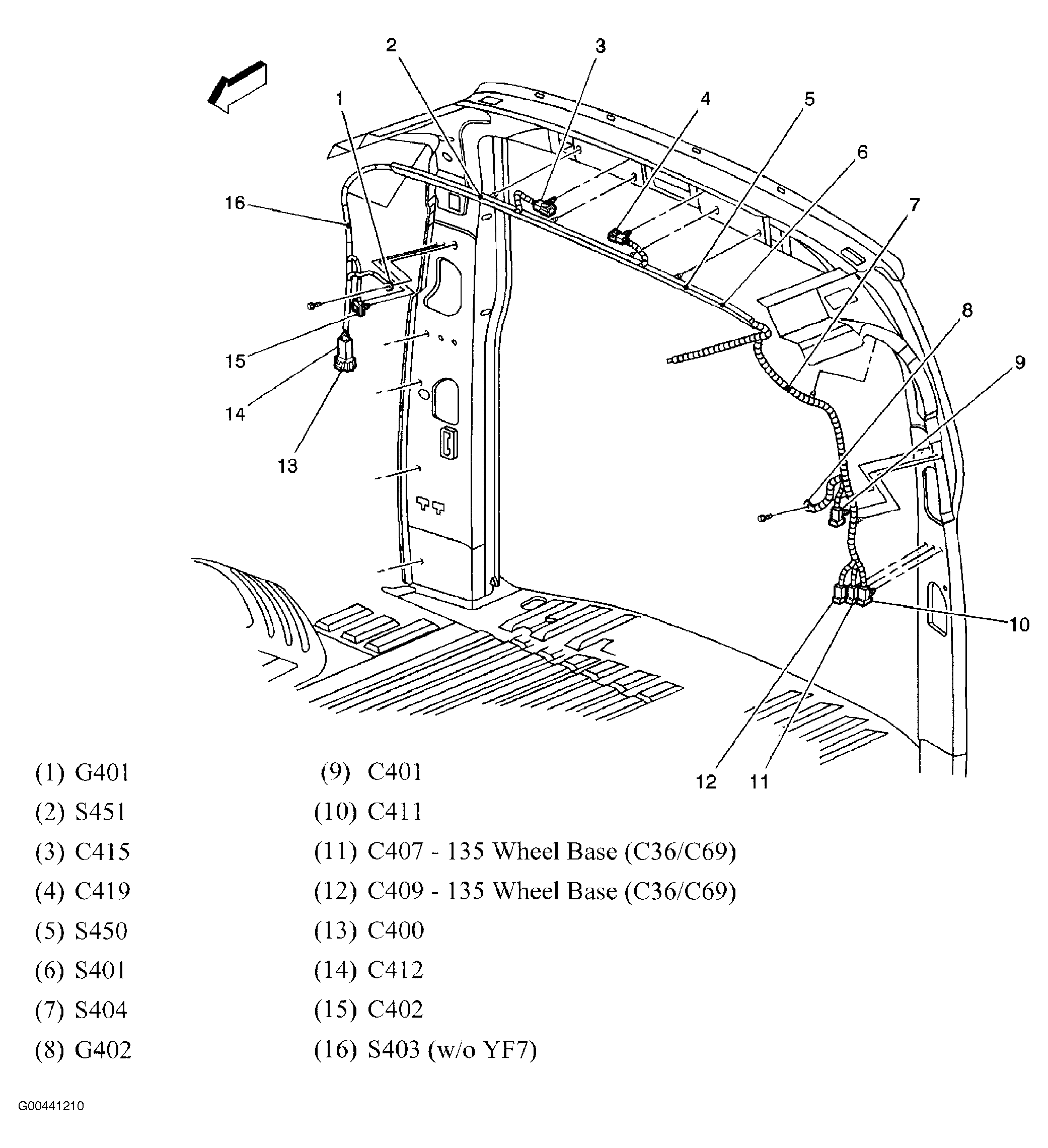

Fig 16: Rear Of Passenger Compartment (Passenger/Cargo)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 18: Rear Chassis (Cutaway)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Front Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Left Rear Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Right Side Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

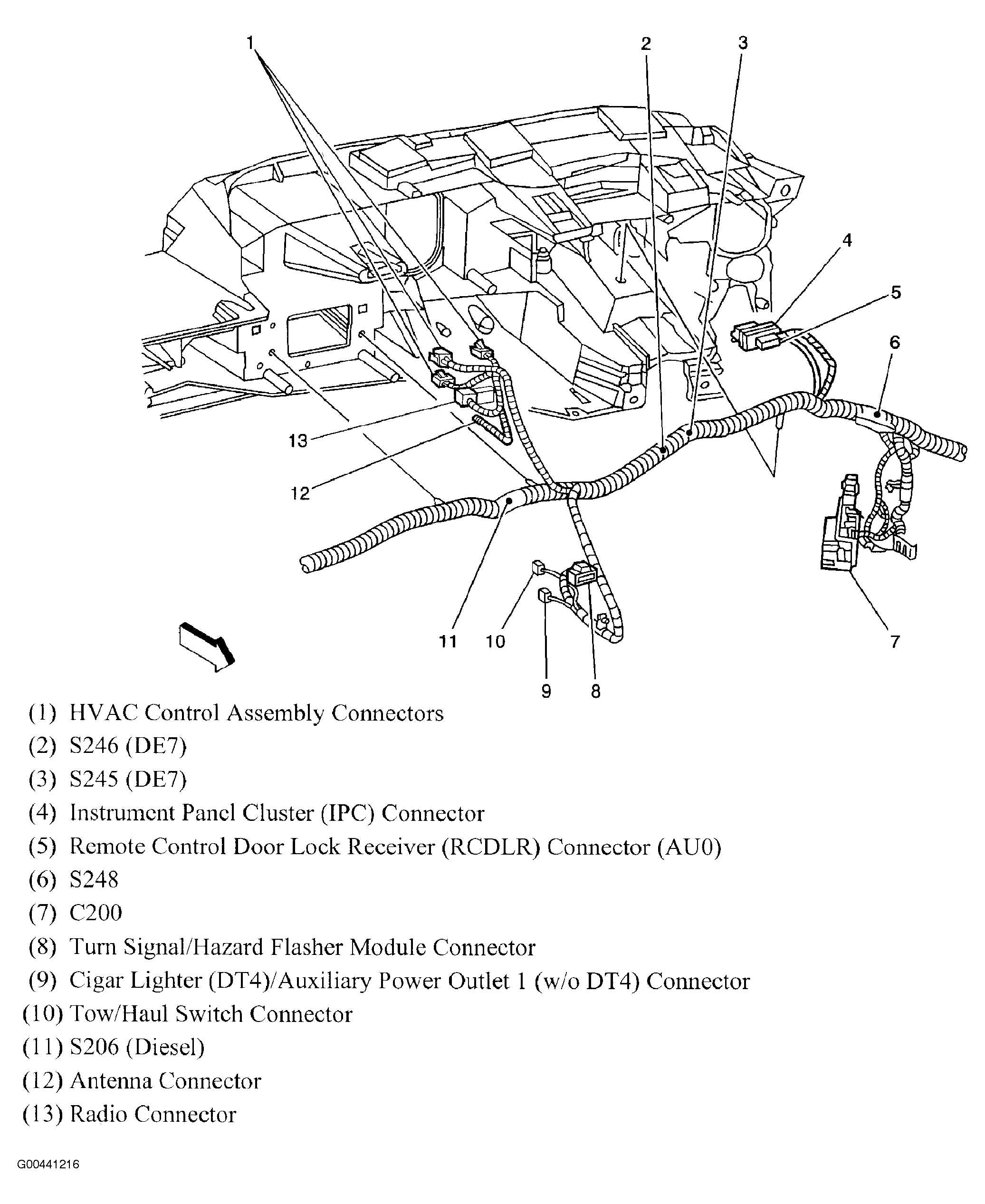

Fig 23: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 24: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 25: Front Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 26: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 27: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 28: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 29: Left Front Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 30: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 31: Right "B" Pillar & Floor
Courtesy of GENERAL MOTORS CORP.
Fig 32: Right Side Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.

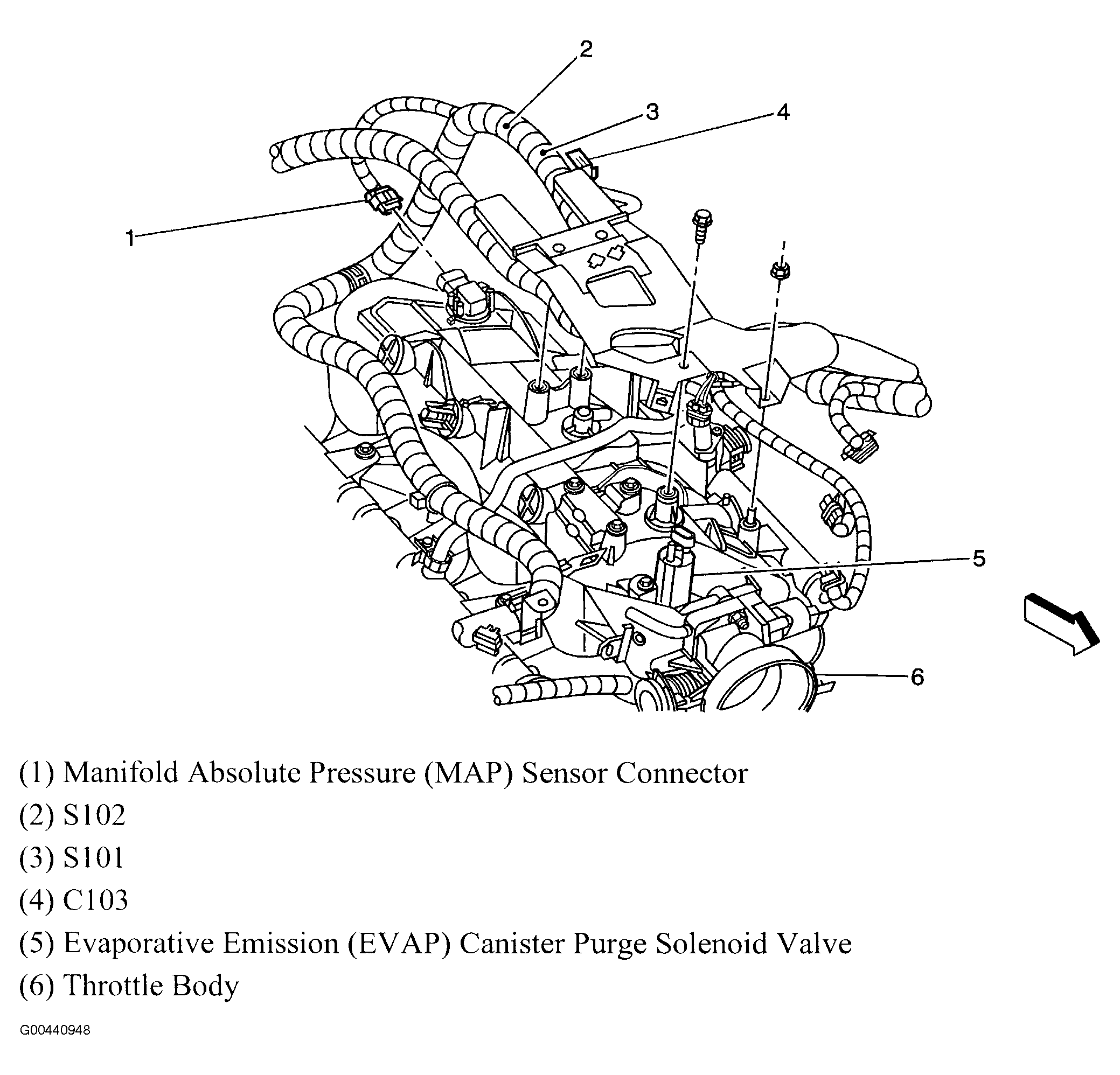

Fig 33: Top Front Side Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 35: Rear Of Transmission (4.3L & 5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Fuel Tank (Except 57 Gal Fuel Tank)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Upper Left Side Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 38: Upper Right Side Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 39: Top Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Top Center Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 42: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 43: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 44: Center Of Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 45: Steering Column
Courtesy of GENERAL MOTORS CORP.

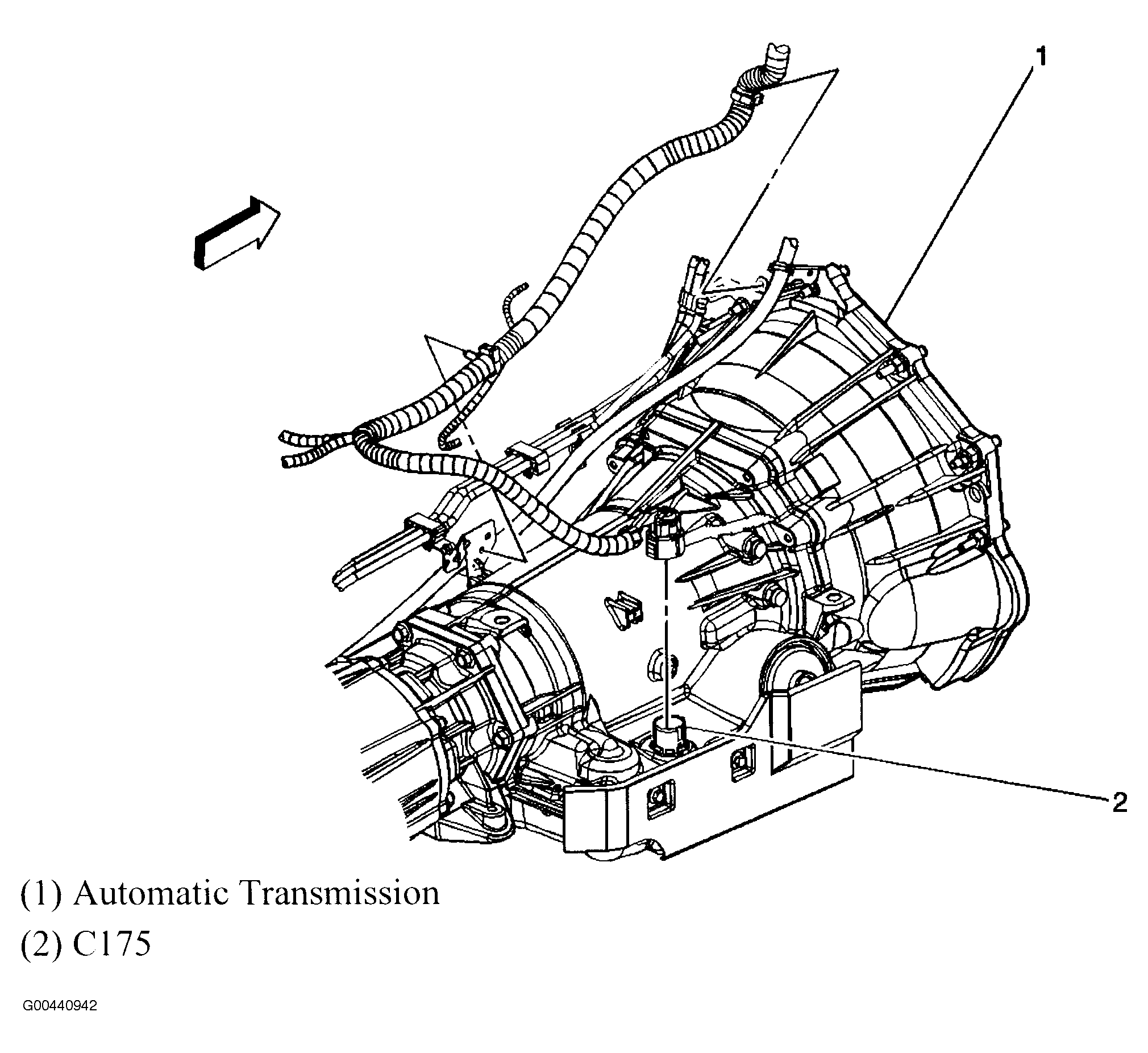

Fig 46: Automatic Transmission (4L60-E/4L65-E/4L70-E)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Left Side Of Transmission (4L60-E/4L65-E/4L70-E)
Courtesy of GENERAL MOTORS CORP.
Fig 48: Rear Of Transfer Case (4L60-E/4L65-E/4L70-E)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Automatic Transmission Control Valve Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 50: Automatic Transmission (4L80-E/4L85-E)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Power Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 52: SIR Components
Courtesy of GENERAL MOTORS CORP.
Fig 53: Power Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right "A" Pillar & Roof
Courtesy of GENERAL MOTORS CORP.
Fig 55: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 56: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 57: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 58: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 59: Right Rear Door (Passenger/Cargo)
Courtesy of GENERAL MOTORS CORP.
Fig 60: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 61: Rear Of Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 62: Rear Of Front Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 63: Left Side Door (Hinged)
Courtesy of GENERAL MOTORS CORP.
Fig 64: Right Side Door (Hinged)
Courtesy of GENERAL MOTORS CORP.
Fig 65: Right Side Door (Sliding)
Courtesy of GENERAL MOTORS CORP.
Fig 66: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 67: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 68: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 69: Top Left Front Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.

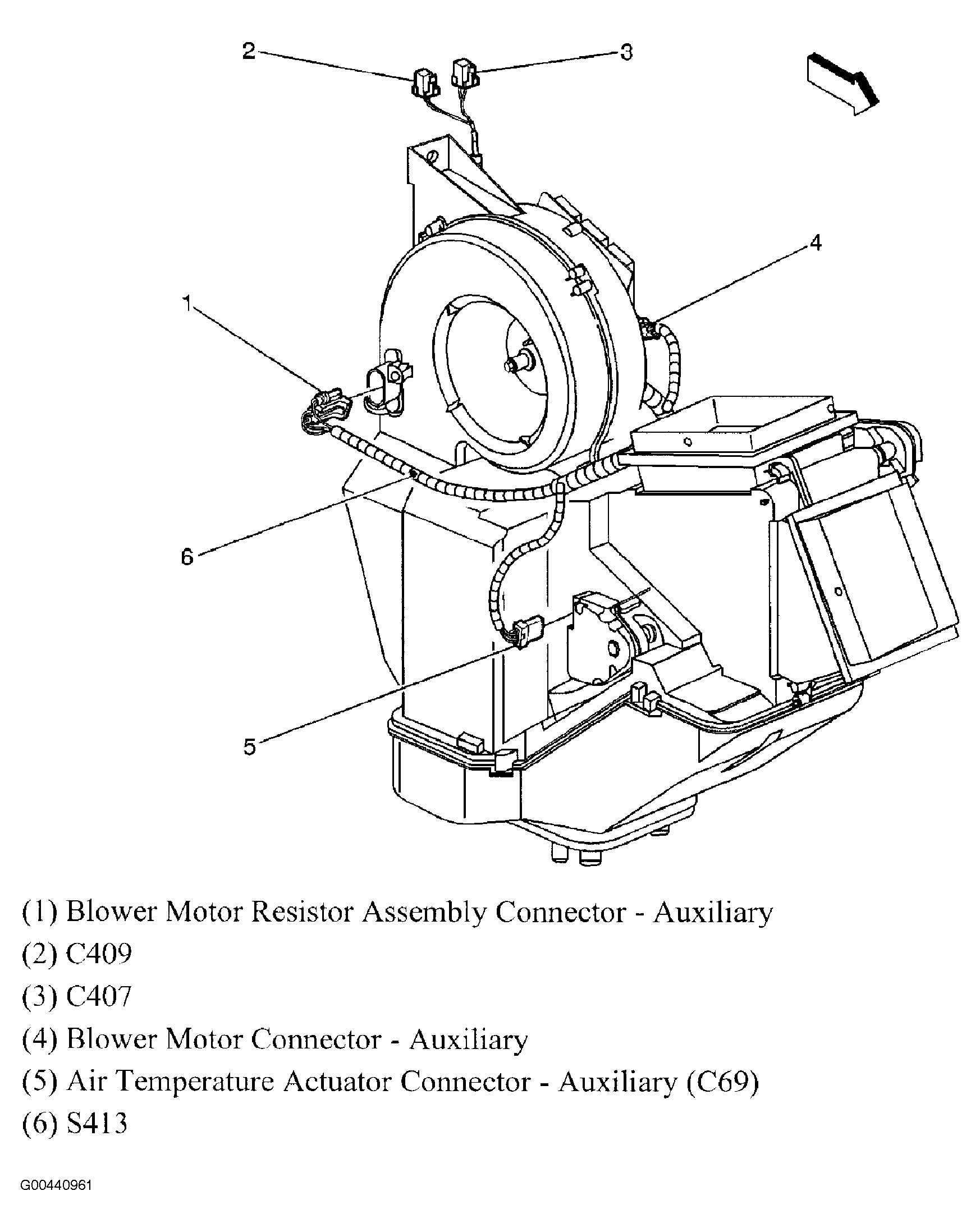

Fig 70: Rear Of Auxiliary Heater & A/C
Courtesy of GENERAL MOTORS CORP.
Fig 71: Rear Of Transmission (4L60-E/4L65-E/4L70-E)
Courtesy of GENERAL MOTORS CORP.
Fig 72: Rear Of Engine & Transmission (4.8L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 73: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 74: Front Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 75: Rear Frame (W/JL4)
Courtesy of GENERAL MOTORS CORP.
Fig 76: Left Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 77: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 78: Left Front Of Engine Compartment (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 79: Left Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 80: Right Side Of Engine (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 81: Left Side Of Engine (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 82: Top Of Engine (6.6L Turbo)
Courtesy of GENERAL MOTORS CORP.
Fig 83: Right Front Of Engine Compartment (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 84: Left Frame Rail (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 85: Under Center Of Vehicle (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 86: Left Side Of Engine Compartment (6.6L)
Courtesy of GENERAL MOTORS CORP.

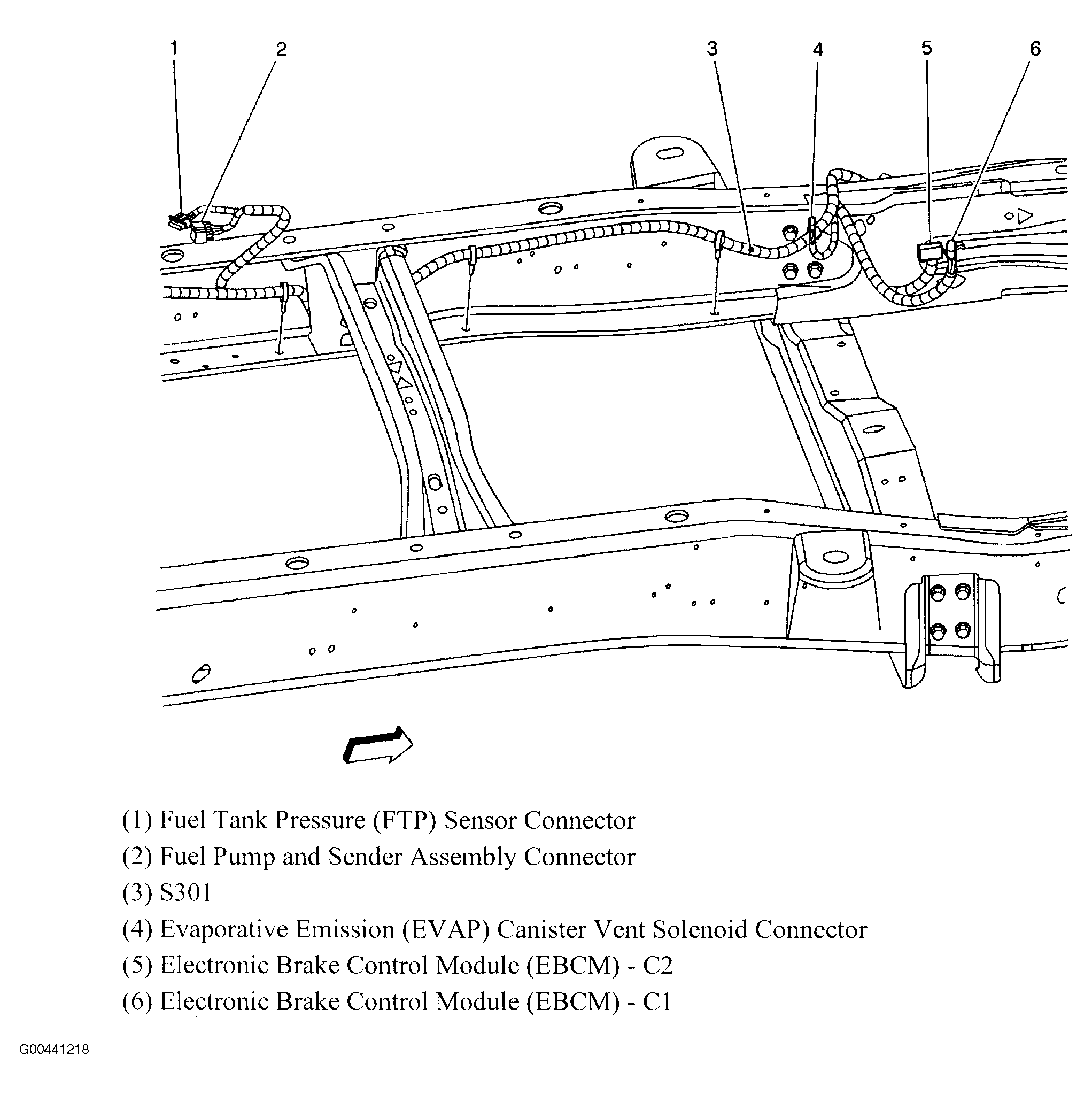

Fig 87: Frame & Underbody
Courtesy of GENERAL MOTORS CORP.
Fig 88: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 89: Left Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 90: Fuel Tank (57 Gal Fuel Tank)
Courtesy of GENERAL MOTORS CORP.
Fig 91: Top Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.

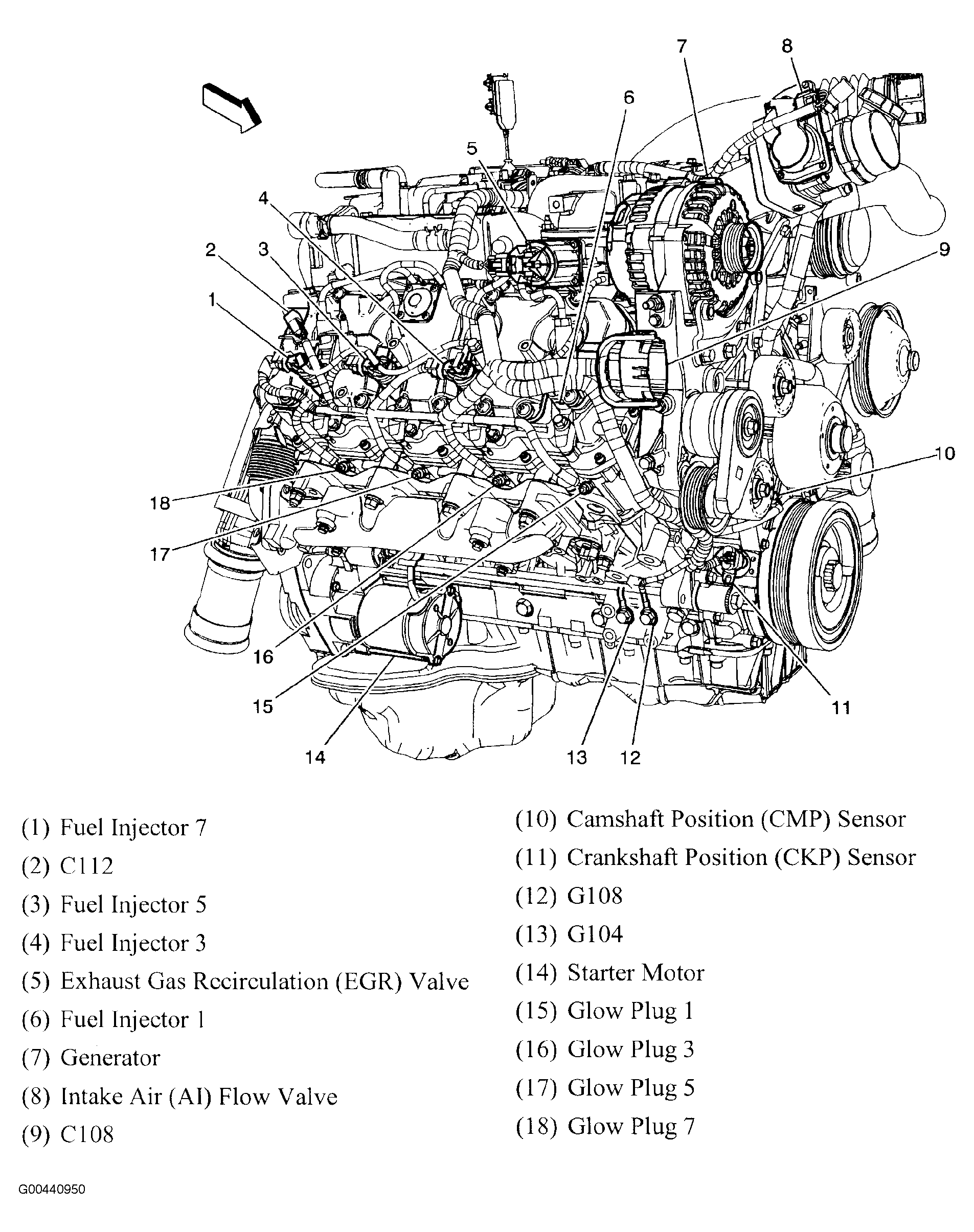

Fig 92: Right Side Of Engine (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 93: Left Side Of Engine (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 94: Top Of Engine (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 95: Top Of Engine (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 96: Right Side Frame
Courtesy of GENERAL MOTORS CORP.
Fig 97: Right Front Of Engine Compartment (6.6L)
Courtesy of GENERAL MOTORS CORP.

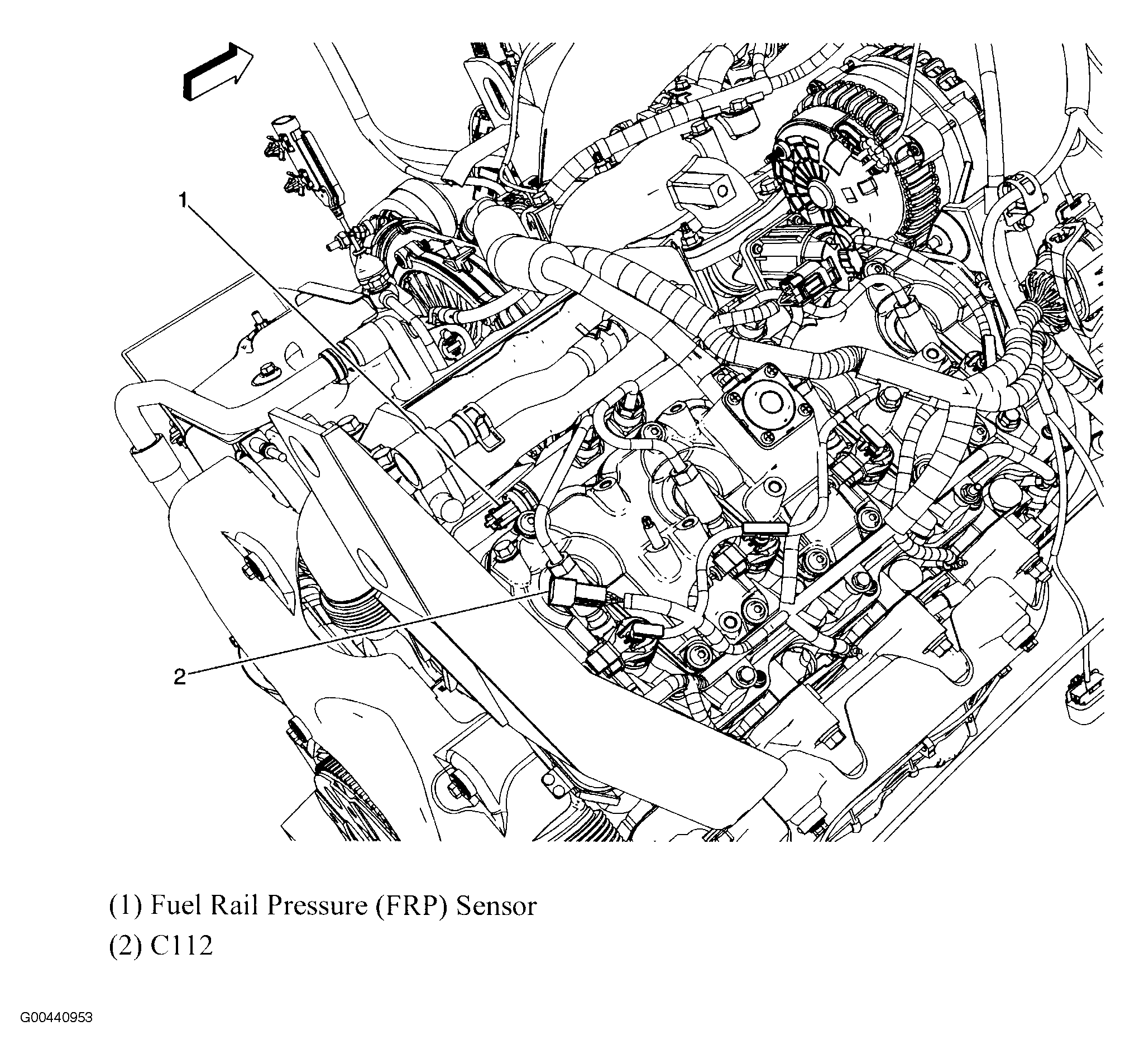

Fig 98: Top Front Of Engine (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 99: Coolant Heater
Courtesy of GENERAL MOTORS CORP.
Fig 100: Behind Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

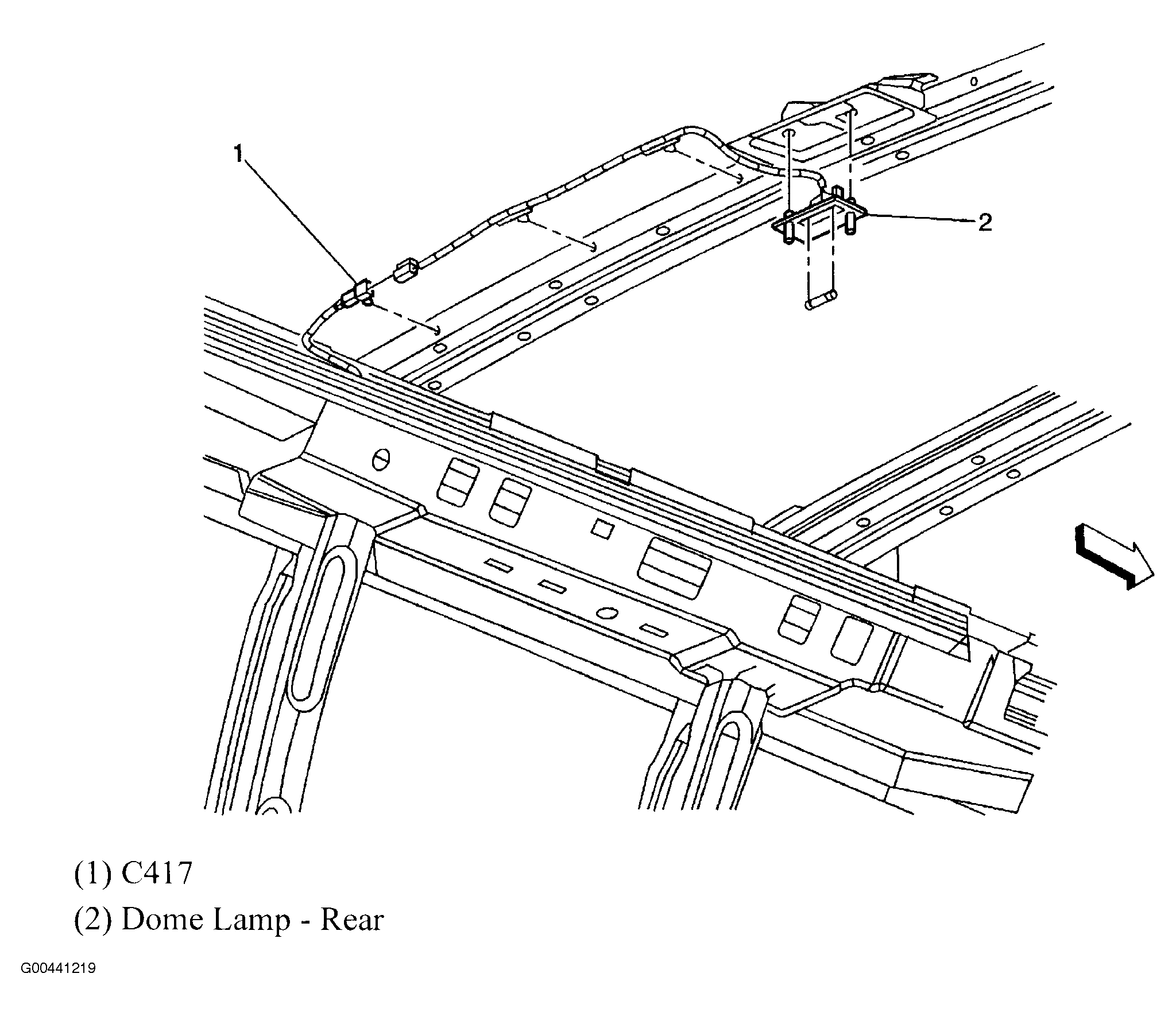

Fig 101: Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 102: Front Of Auxiliary Heater & A/C
Courtesy of GENERAL MOTORS CORP.
Fig 103: Steering Wheel
Courtesy of GENERAL MOTORS CORP.

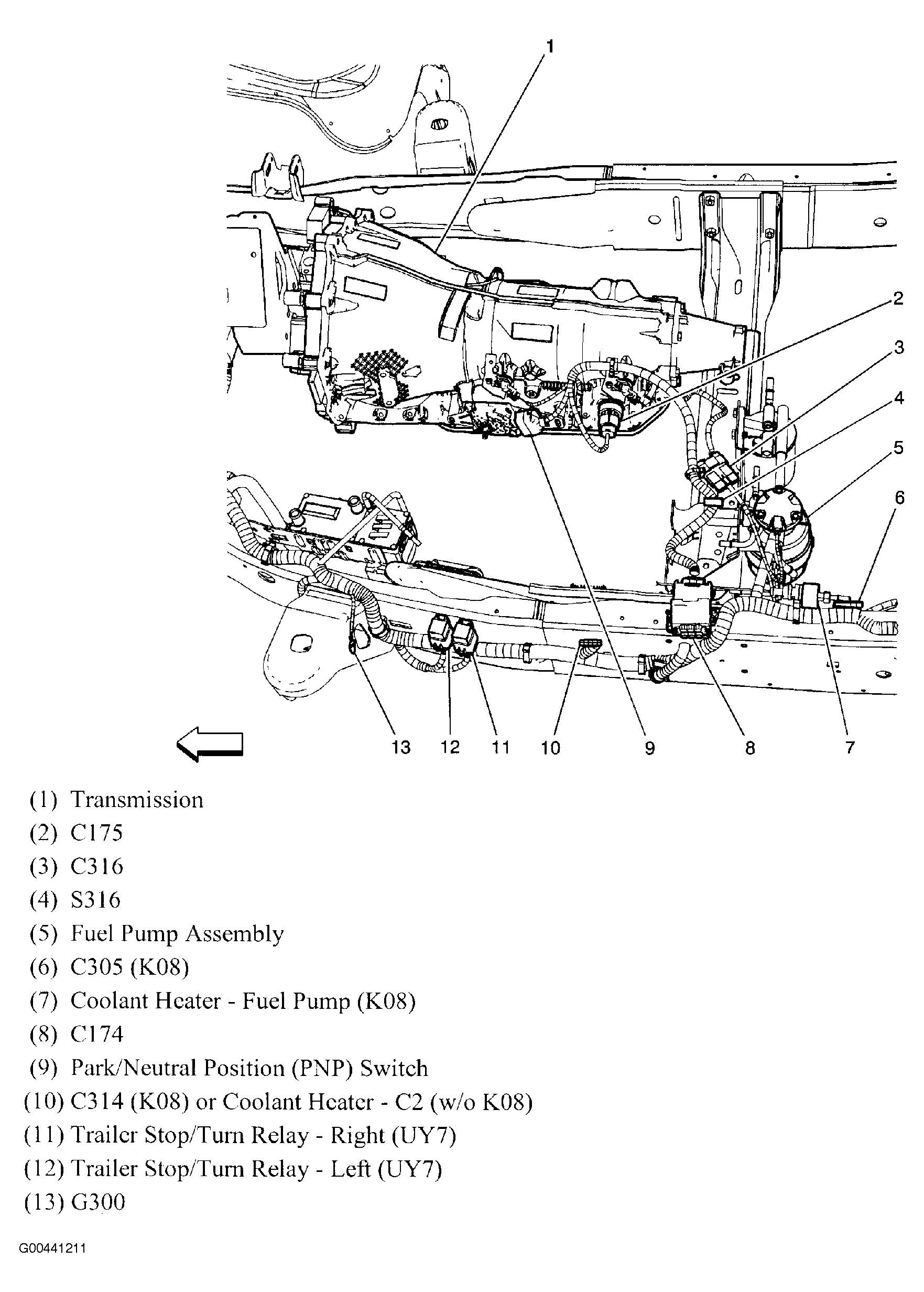

Fig 104: Under Center Of Vehicle (6.6L)
Courtesy of GENERAL MOTORS CORP.

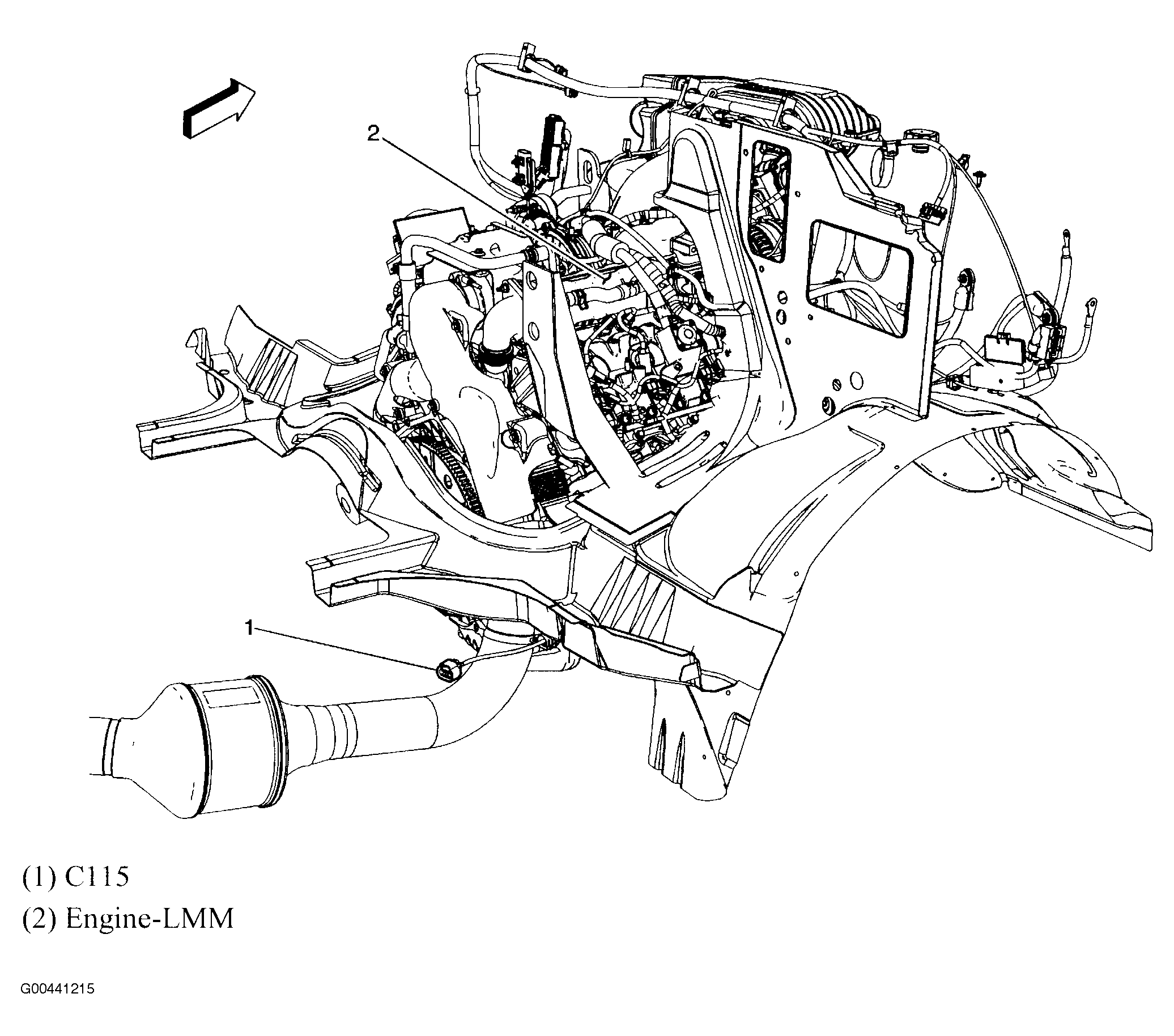

Fig 105: Engine Compartment (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 106: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

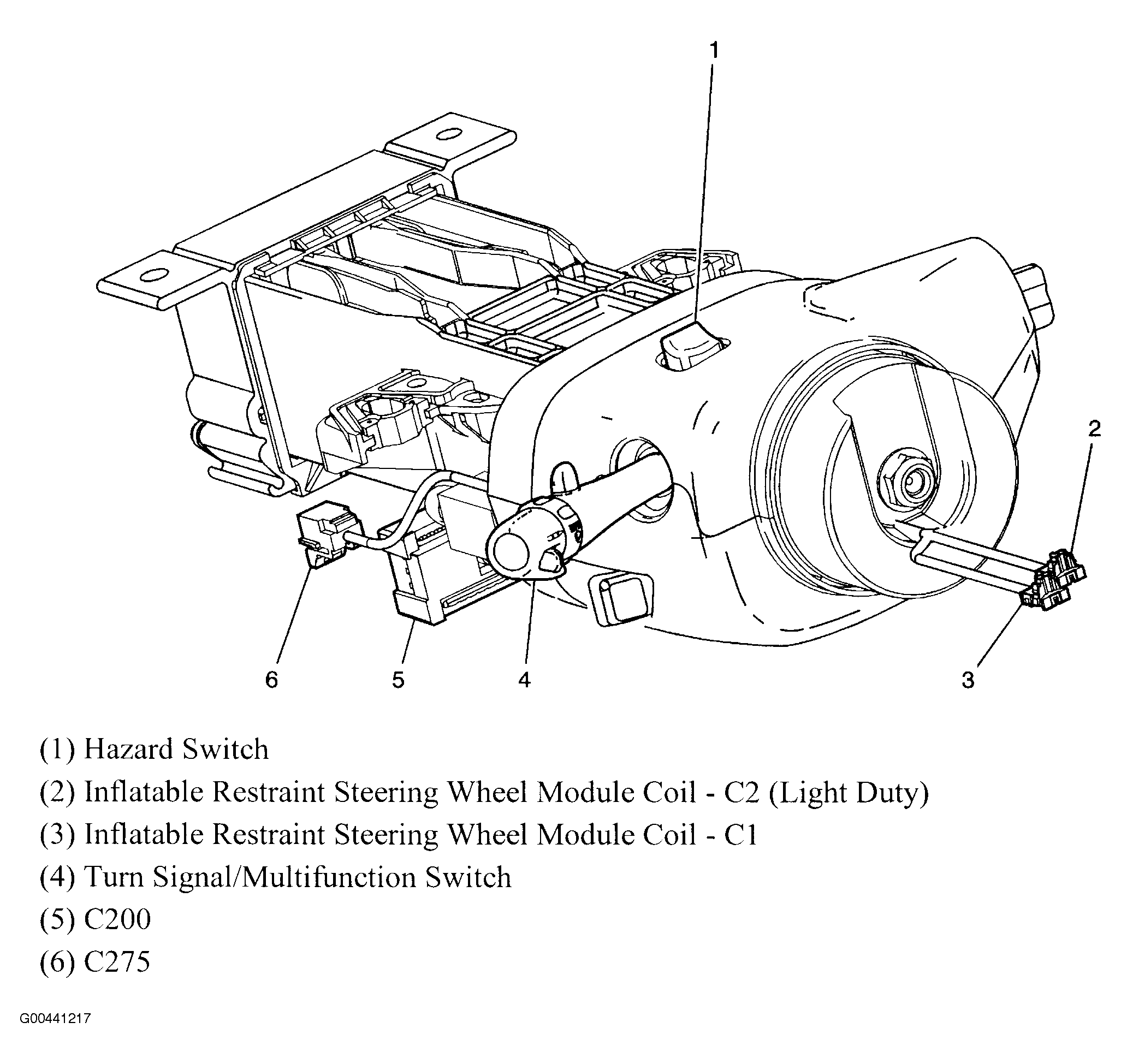

Fig 107: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 108: Inner Center Frame (Cutaway)
Courtesy of GENERAL MOTORS CORP.
Fig 109: Top Of Left "C" Pillar (Cargo)
Courtesy of GENERAL MOTORS CORP.

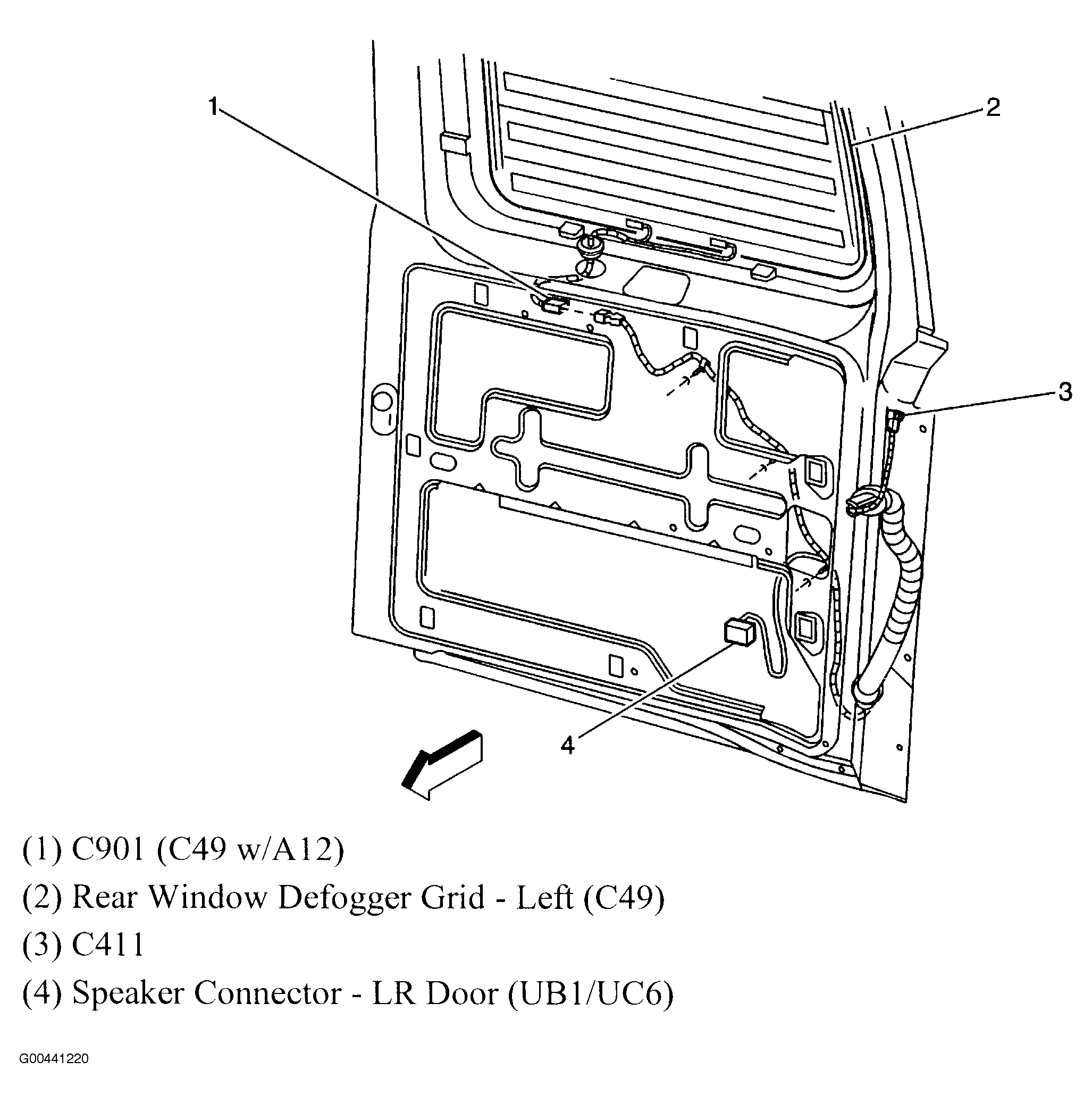

Fig 110: Left Rear Cargo Door
Courtesy of GENERAL MOTORS CORP.

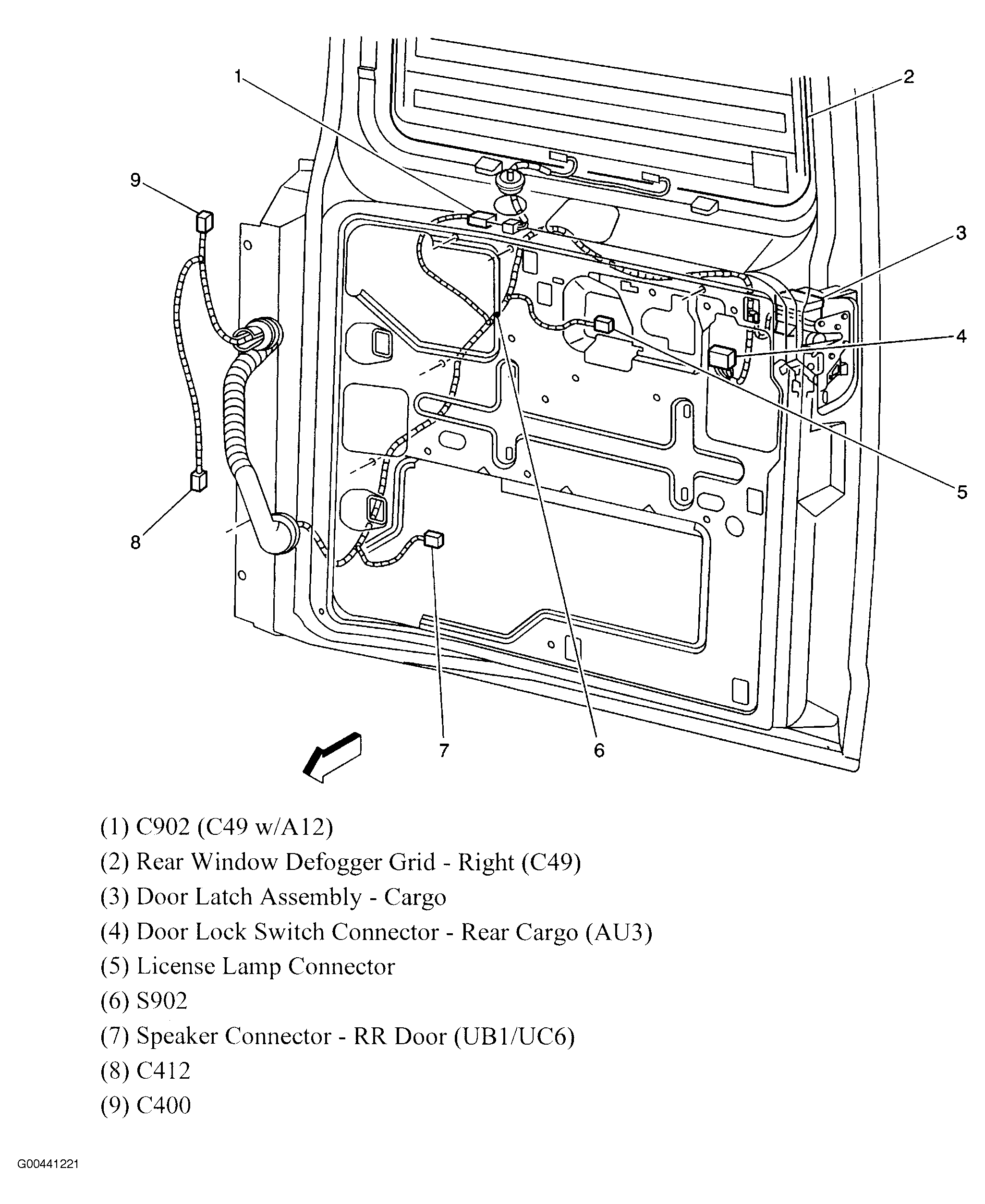

Fig 111: Right Rear Cargo Door
Courtesy of GENERAL MOTORS CORP.
