Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

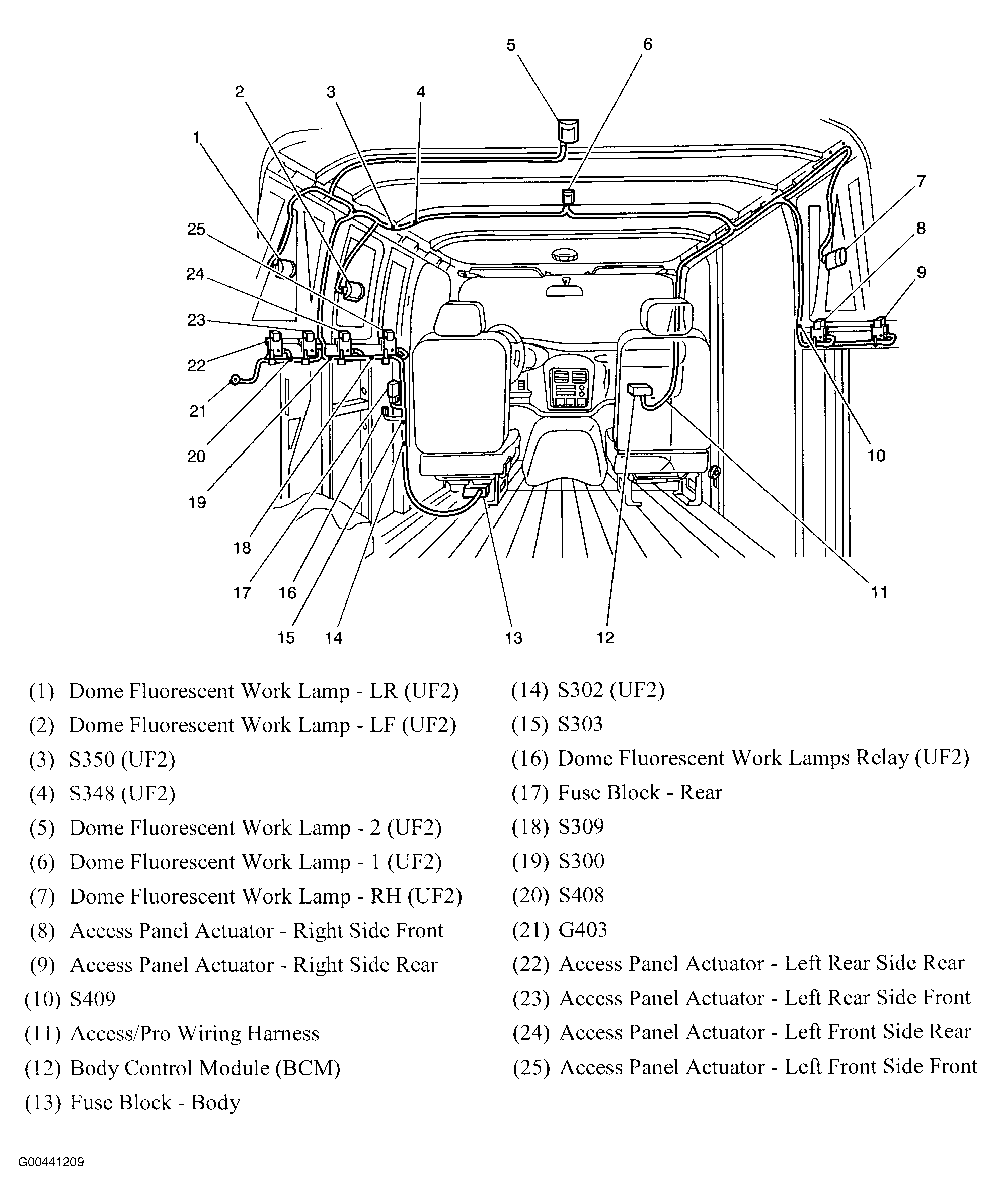

Fuse Block - Body Under left front seat. See Figure.
Fuse Block - Rear On left "B" pillar. See Figure.
Fuse Block - Underhood On left side of engine compartment. See Figure.
