Mirror Component Views

Fig 1: Inside Rearview Mirror

GM309865

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror Connector (DF5/UE1)
2	Inside Rearview Mirror

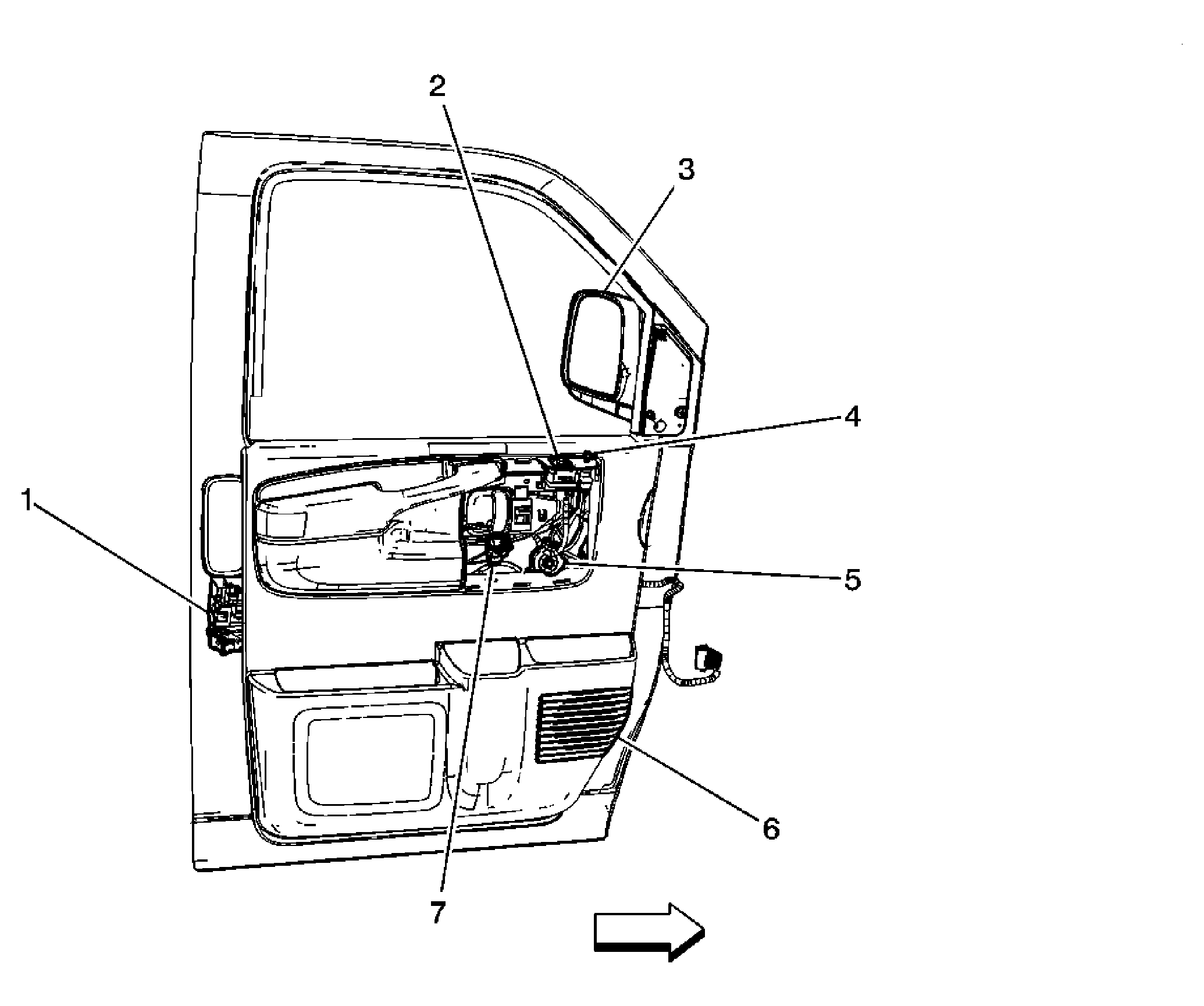

Fig 2: Driver Door

GM1696885

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Driver
2	Window Switch - Driver (A31)
3	Outside Rearview Mirror - Driver
4	Outside Rearview Mirror Switch (DE5/DE7)
5	Window Motor - Driver (A31)
6	Speaker - LF Door
7	Door Lock Switch - Driver (AU3)

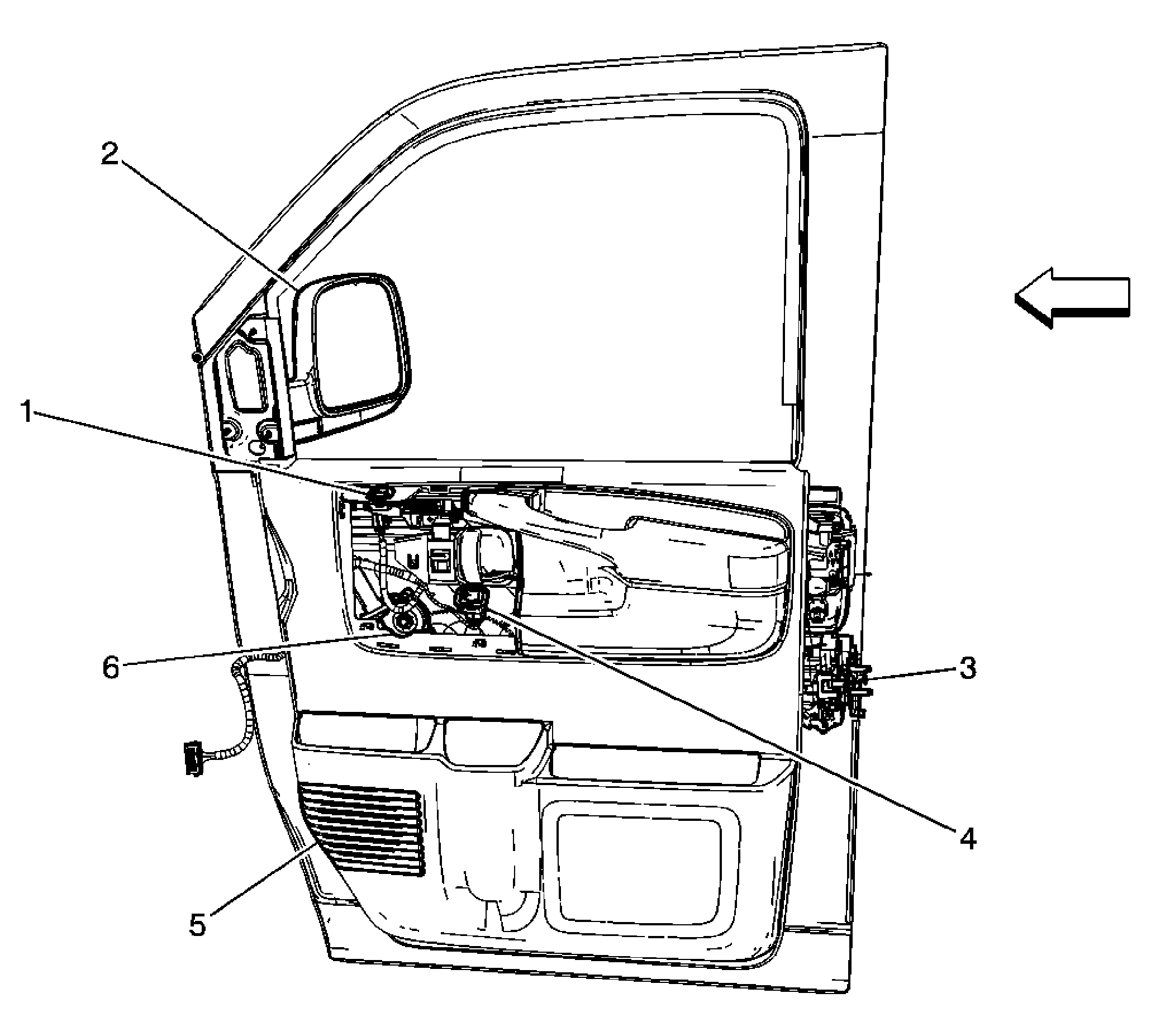

Fig 3: Front Passenger Door

GM1696886

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Front Passenger (A31)
2	Outside Rearview Mirror - Passenger
3	Door Latch Assembly - Passenger
4	Door Lock Switch - Front Passenger (AU3)
5	Speaker - RF Door
6	Window Motor - Passenger (A31)
