Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

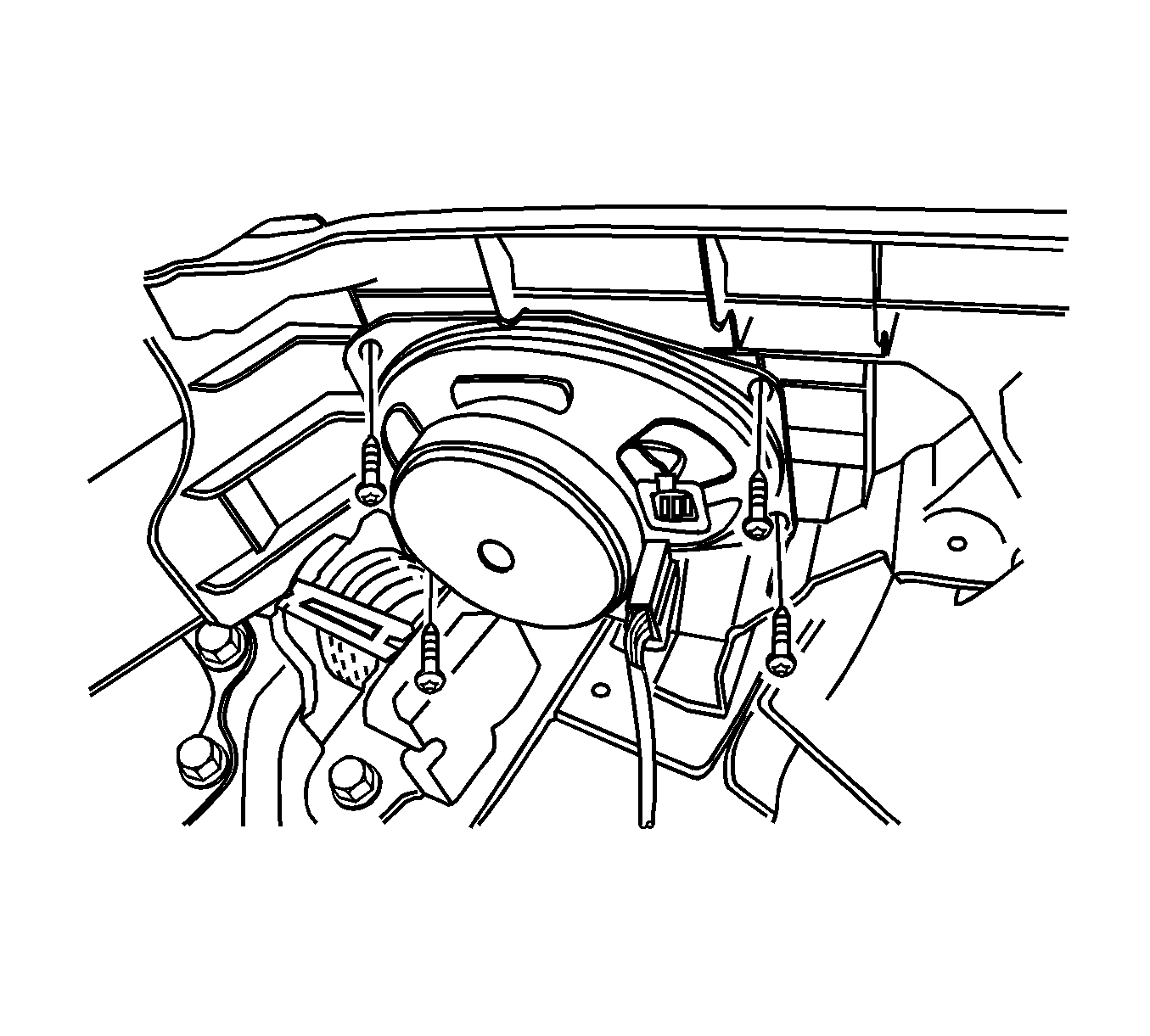

Fig 1: View of Rear Speakers and Screws (Hatchback)

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the rear speaker with the screws.
Tighten: Tighten the rear speaker screws to 3 N.m (27 lb in).
Connect the electrical connector.
Install the rear cargo area side trim panel. Refer to Cargo Area Side Trim Panel Replacement (Hatchback) .
Connect the negative battery cable.
