UNDERHOOD Fuse Block: Notes

NOTE: Underhood fuse block is located in the left front of the engine compartment, near the battery. See Fig 1.

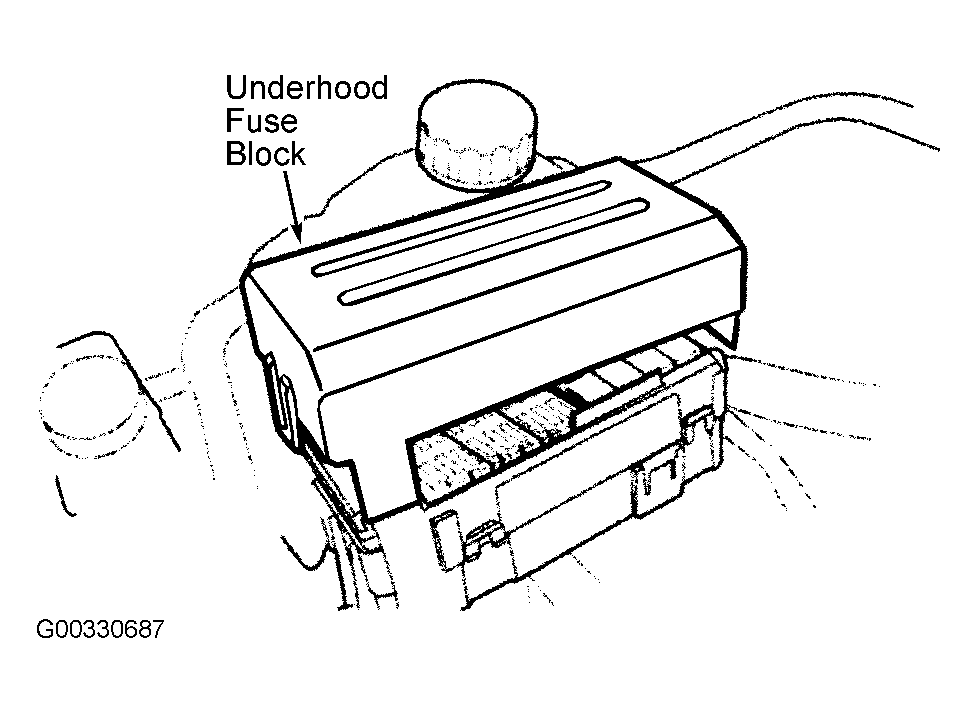

Fig 1: Locating Underhood Fuse Block
G00330687Courtesy of GENERAL MOTORS CORP.
