Instrument Panel Fuse Block: Notes

NOTE: Instrument panel fuse block is located on the driver side of the I/P, in the door opening. See Fig 1.

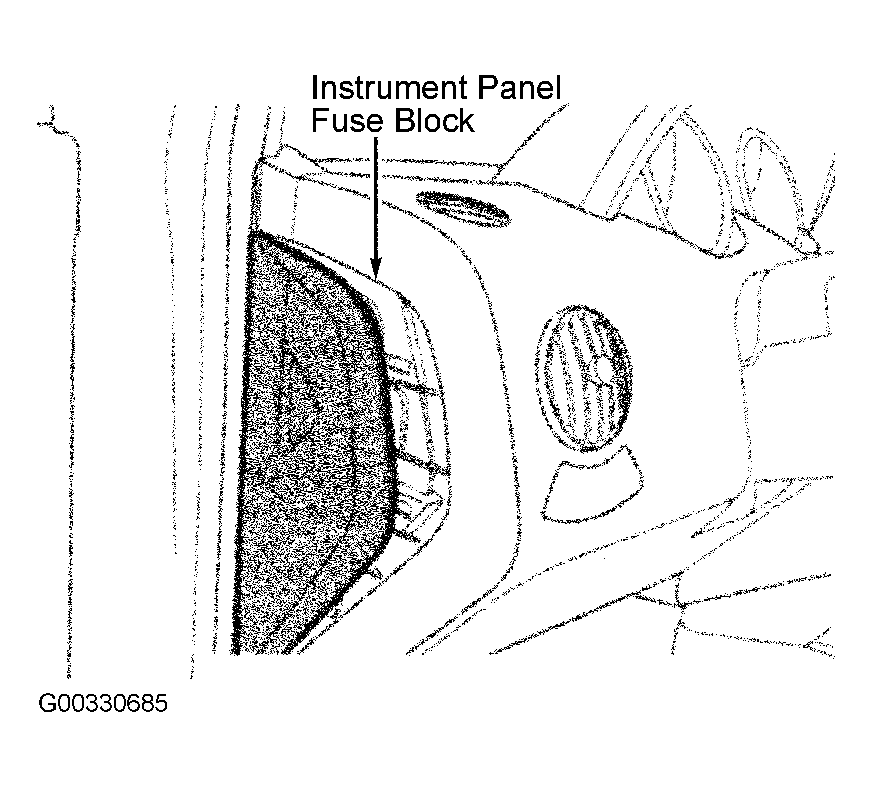

Fig 1: Locating Instrument Panel Fuse Block
G00330685Courtesy of GENERAL MOTORS CORP.
