Instrument Panel Fuse Block (Notchback)

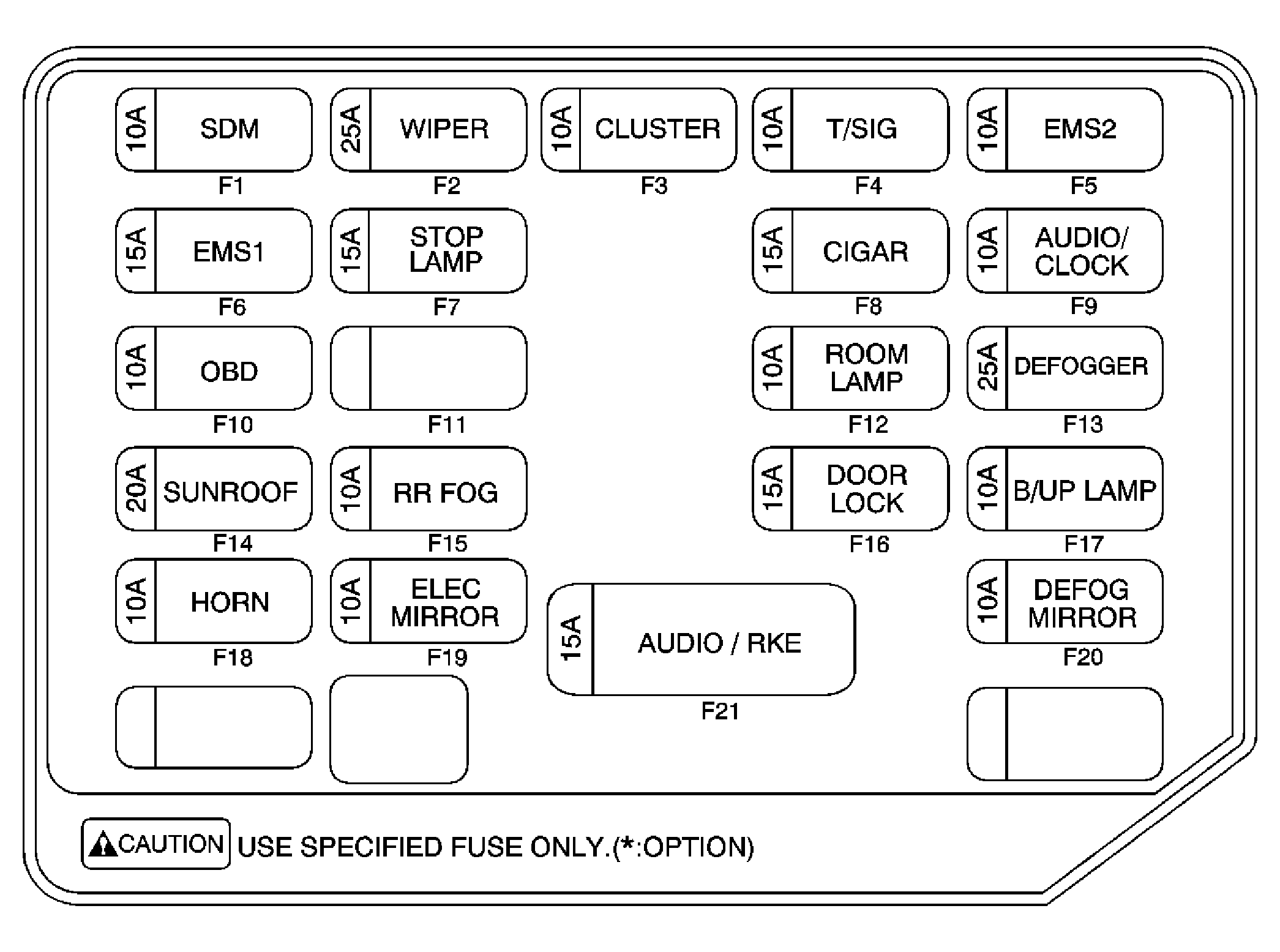

FUSE BLOCK - I/P FUSE IDENTIFICATION LEGEND (NOTCHBACK)
| Device | Rating | Description |
|---|---|---|
| F1 | 10A | SDM |
| F2 | 25A | Wiper |
| F3 | 10A | Cluster |
| F4 | 10A | T/SIG |
| F5 | 10A | EMS2 |
| F6 | 15A | EMS1 |
| F7 | 15A | Stop Lamp |
| F8 | 15A | Cigar |
| F9 | 10A | Audio/Clock |
| F10 | 10A | OBD |
| F11 | - | Not Used |
| F12 | 10A | Room Lamp |
| F13 | 25A | Defogger |
| F14 | 20A | Sunroof |
| F15 | 10A | RR Fog |
| F16 | 15A | Door Lock |
| F17 | 10A | B/UP Lamp |
| F18 | 10A | Horn |
| F19 | 10A | Elec Mirror |
| F20 | 10A | Defog Mirror |
| F21 | 15A | Audio/RKE |
