Installation Procedure

    Fig 1: View Of Insulator Brackets
    GM357447Courtesy of GENERAL MOTORS CORP.
  1. Install stabilizer shaft going in through left side of vehicle.
  2. Install the left and right stabilizer shaft insulators and brackets. Refer to Stabilizer Shaft Insulator Replacement .

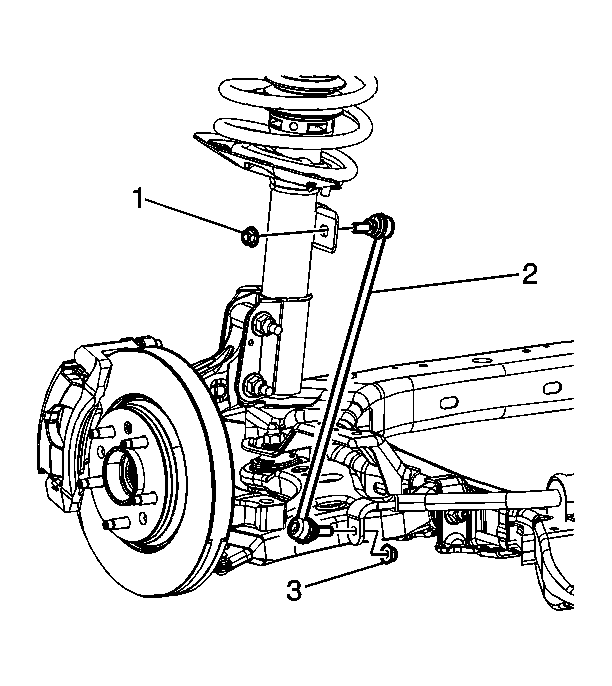

    3. Fig 2: Identifying Stabilizer Shaft Components
    GM1544893Courtesy of GENERAL MOTORS CORP.
  3. Install the left and right stabilizer shaft links to the stabilizer shaft.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the stabilizer shaft link lower nut (3).

    Tighten:  Tighten the nut to 23 N.m (17 lb ft).

  5. Install the left front tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  6. Lower the vehicle.
