Installation Procedure

    Fig 1: Installing Outer Tie Rod Assembly To Inner Tie Rod Assembly
    GM297355Courtesy of GENERAL MOTORS CORP.
  1. Install the outer tie rod (3) to the inner tie rod (1). Do not tighten the tie rod jam nut (2).
    2. Fig 2: View Of Outer Tie Rod & Steering Knuckle
    GM297628Courtesy of GENERAL MOTORS CORP.
  2. Install the outer tie rod (2) to the steering knuckle (1).

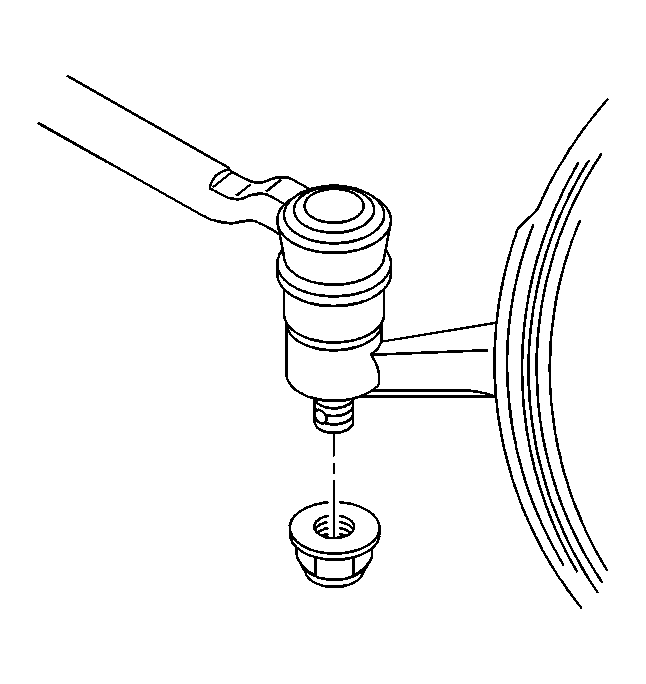

    3. Fig 3: Removing/Installing Torque Prevailing Nut From Outer Tie Rod Stud
    GM417924Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: This is a prevailing torque type fastener. You may reuse this fastener ONLY under the following conditions:
    • The fastener and its counterpart are clean and free from rust.
    • The fastener develops 2 N.m (18 lb in) of torque/drag against its counterpart prior to the fastener seating.

    If the fastener does not meet these criteria, REPLACE the fastener.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
    IMPORTANT: Ensure that 2.5-4.5 tie rod end threads are visible beyond the tie rod nut nylon.
  3. Install the tie rod ball stud nut.

    Tighten:  Tighten the tie rod ball stud nut to 30 N.m (22 lb ft) + 120 degrees.

  4. Inspect and adjust the toe as necessary. Refer to Front Toe Adjustment in Wheel Alignment.
