Installation Procedure

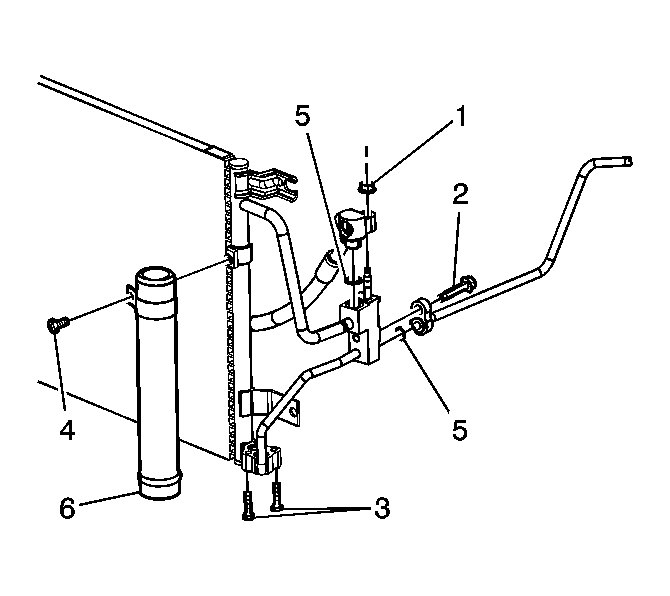

    Fig 1: Identifying Receiver Dehydrator
    GM1547626Courtesy of GENERAL MOTORS CORP.
  1. If replacing the receiver dehydrator, add the specified amount of PAG oil directly to the receiver dehydrator. Refer to Refrigerant System Capacities .
  2. Remove the cap or tape from the condenser lower openings.
  3. Install NEW lower receiver dehydrator sealing washers.
  4. Install the receiver dehydrator.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the receiver dehydrator lower bolts (3).

    Tighten:  Tighten the bolts to 16 N.m (12 lb ft).

  6. Install the receiver dehydrator upper bracket screw (4).

    Tighten:  Tighten the bolt to 16 N.m (12 lb ft).

  7. Remove the caps or tape from the open A/C lines.
  8. Install the A/C condenser. Refer to Condenser Replacement .
