Installation Procedure

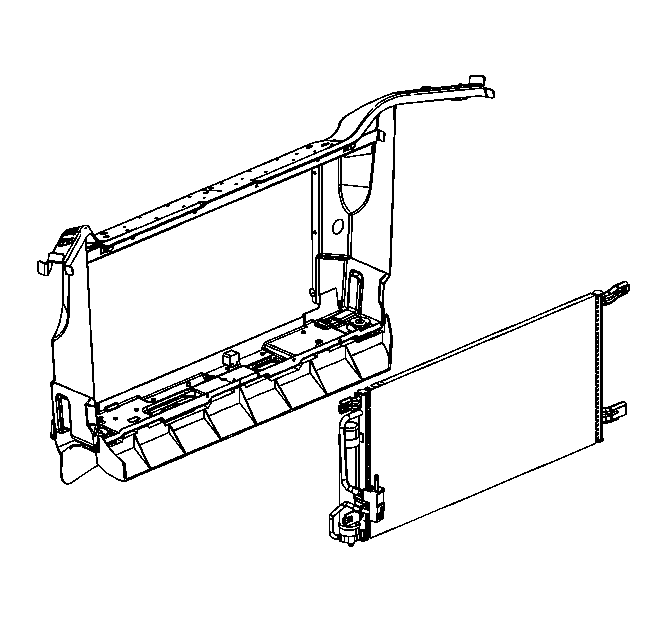

    Fig 1: View Of Condenser
    GM1547631Courtesy of GENERAL MOTORS CORP.
  1. Install the receiver dehydrator, if necessary. Refer to Receiver Dehydrator Replacement .
  2. If replacing the condenser add the specified amount of polyalkylene glycol (PAG) oil directly to the condenser. Refer to Refrigerant System Capacities .
  3. Install the A/C condenser.
  4. Install the radiator. Refer to Radiator Replacement .
  5. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  6. Leak test the fittings using the J 39400-A  .
