Installation Procedure

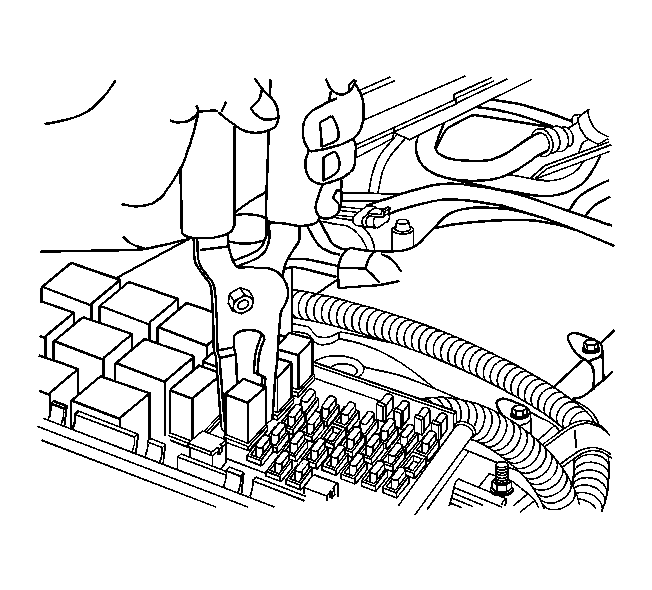

    Fig 1: Identifying Compressor Relay
    GM1547624Courtesy of GENERAL MOTORS CORP.
  1. Install the compressor relay in the same position as removed.
  2. Install the electrical center cover.
