Transfer Case Identification (Isuzu T150)

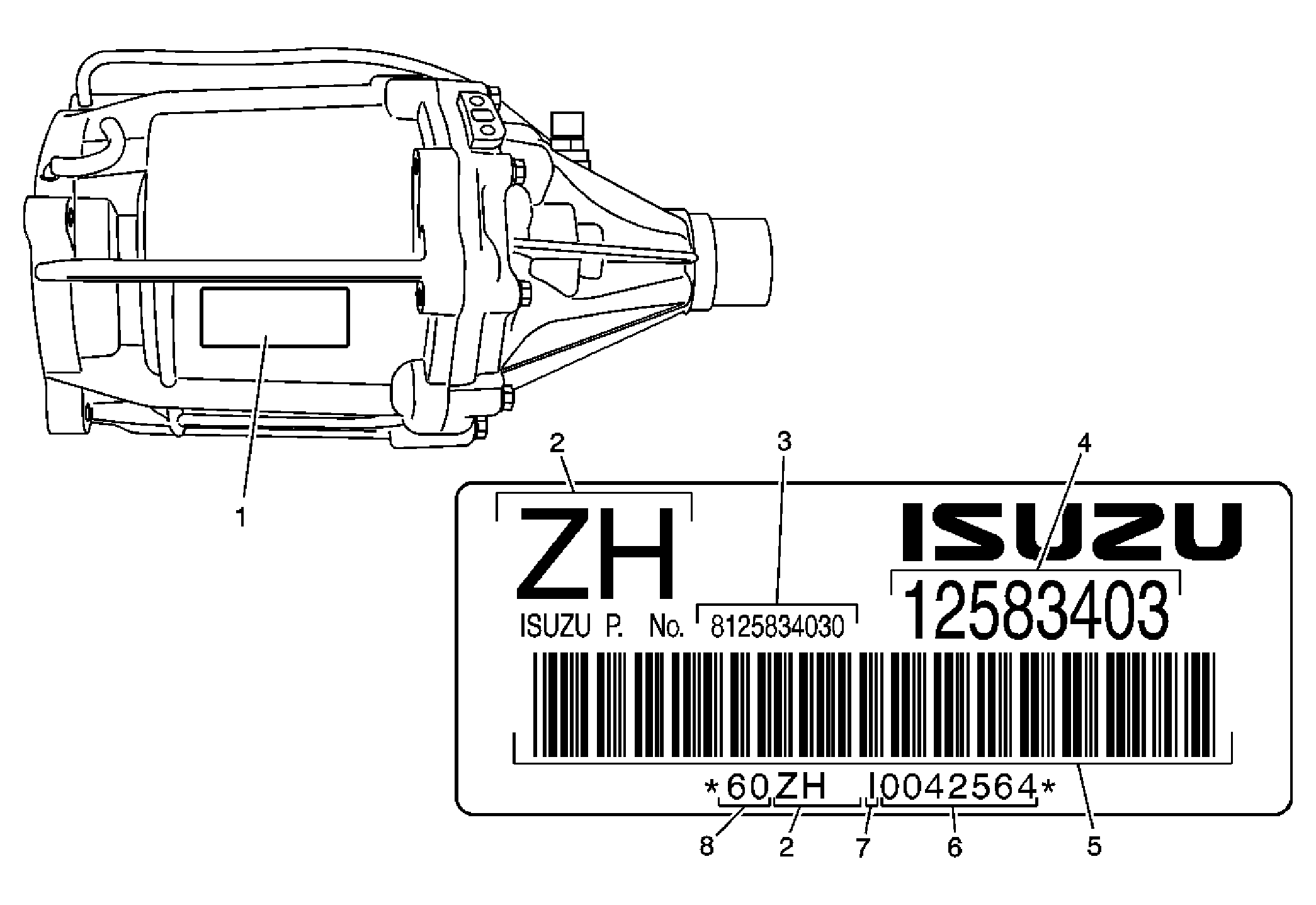

Fig 1: Locating Transfer Case Identification Tag (Isuzu T150)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bar Code Location
2	Broadcast Code
2	Broadcast Code
3	Isuzu Transfer Part Number
4	G/M Transfer Part Number
5	Bar Code
6	Product Serial Number
7	Supplier Code
8	Product Code
