Power Steering Pulley Replacement (LS4)

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

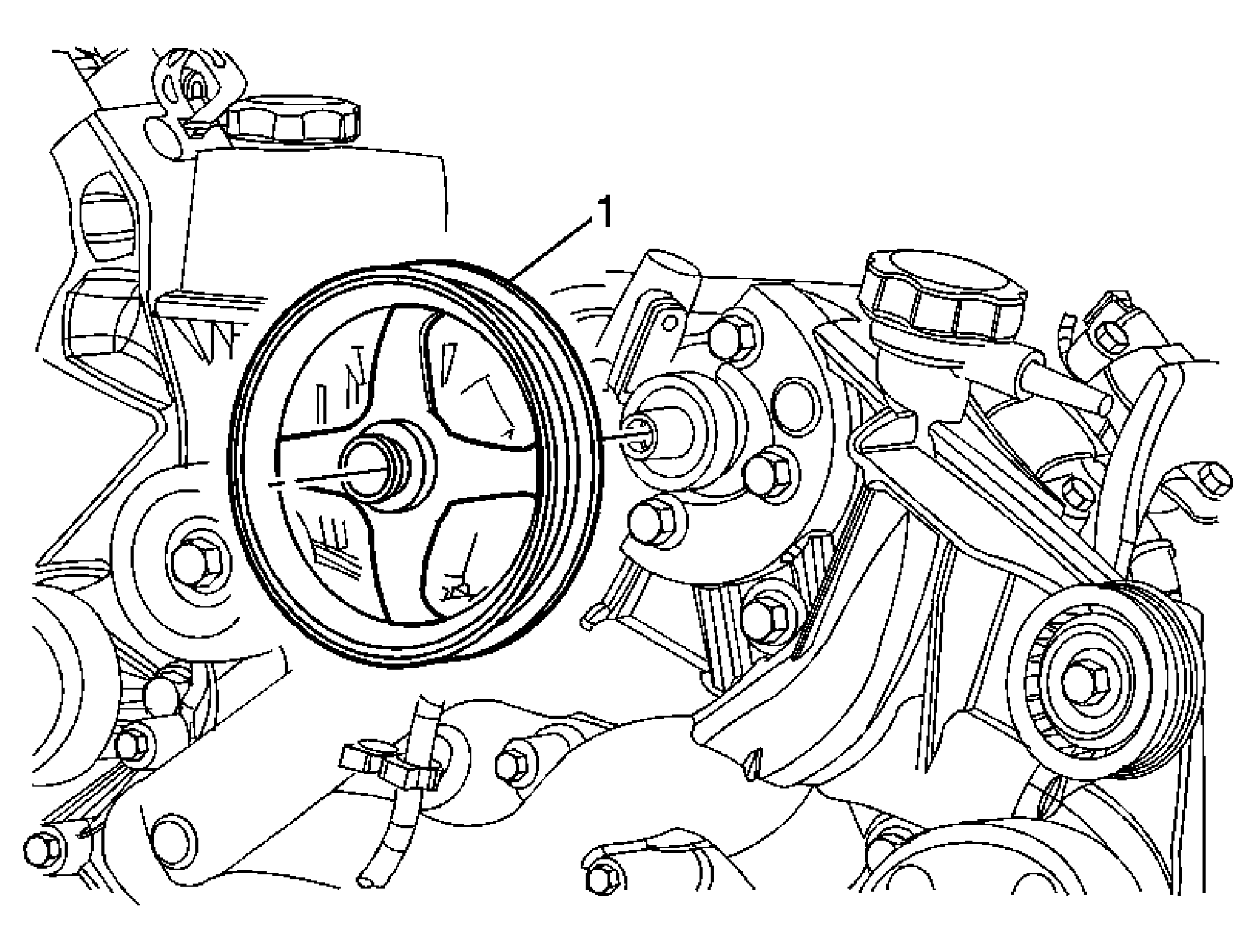

Fig 1: Identifying Power Steering Pulley

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Tools Required J 25034-C Pulley Remover. See Special Tools . J 25033-C Power Steering Pump Pulley Installer. See Special Tools . Preliminary Procedure: Remove the drive belt. Refer to Drive Belt Replacement - Accessory for the 5.3L engine.
1	Pulley, Power Steering Pump Tip: Use the J 25034-C pulley remover to remove the pulley from the pump. See Special Tools . Use the J 25033-C power steering pump pulley installer to install the pulley to the pump. See Special Tools .

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Tools Required

J 25034-C Pulley Remover. See Special Tools .
J 25033-C Power Steering Pump Pulley Installer. See Special Tools .

Preliminary Procedure:
Remove the drive belt. Refer to Drive Belt Replacement - Accessory for the 5.3L engine.

Pulley, Power Steering Pump
Tip:

Use the J 25034-C pulley remover to remove the pulley from the pump. See Special Tools .
Use the J 25033-C power steering pump pulley installer to install the pulley to the pump. See Special Tools .
