Front Brake Caliper Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

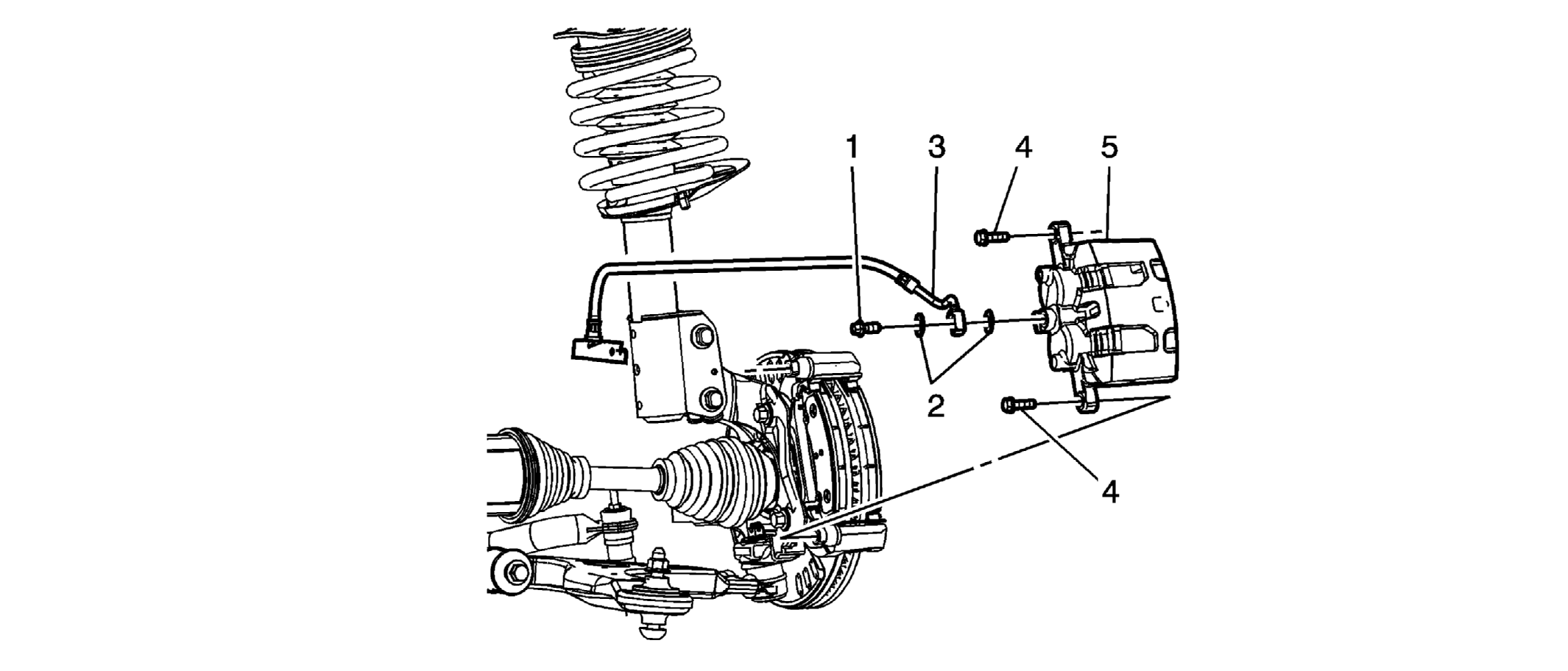

Fig 1: Replacing Front Brake Caliper

Courtesy of GENERAL MOTORS CORP.

Brake Caliper Replacement - Front

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . CAUTION: Refer to Brake Fluid Irritant Caution . CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Notice . NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1	Brake Hose Bolt Tightening Specification: Tighten to 54 N.m (40 lb ft).
2	Brake Hose Washer (Qty: 2) Tip: DO NOT reuse the brake hose washers, Use NEW ONLY.
3	Brake Hose Tip: Cap or plug the brake hose to ensure that the Brake System DOES NOT become contaminated and to prevent leaks. Relocate the brake hose to the side. Secure the brake Hose with the fitting facing UP at the highest point without damaging the brake hose.
4	Brake Caliper Bolts (Qty: 2) Tightening Specifications: Tighten to 36 N.m (40 lb ft).
5	Brake Caliper Tip: If removing the brake caliper to service the brake system, it is NOT necessary to remove the brake hose from the brake caliper. Reposition the brake caliper to the side and support the caliper mechanics wire or equivalent. Bleed the brakes. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
