Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

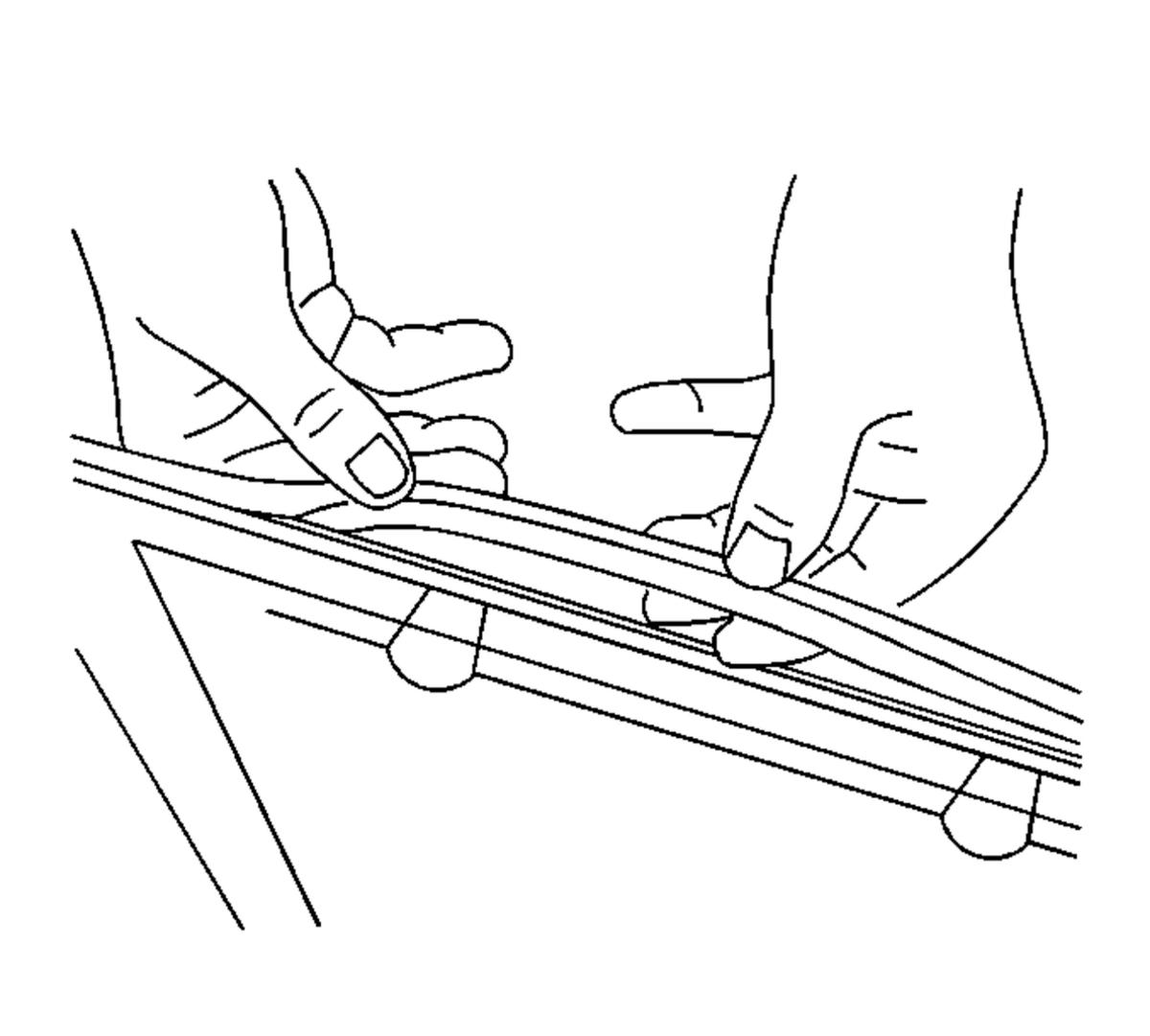

    Fig 1: Sunroof Window Weatherstrip
    GM548064Courtesy of GENERAL MOTORS CORP.
  1. Position the sunroof window seal into the gutter of the sunroof window frame.
    IMPORTANT: Ensure that the sunroof window seal is properly seated around the entire perimeter of the sunroof window frame.
  2. Firmly press the sunroof window seal into place.
  3. Install the sunroof window. Refer to Sunroof Window Replacement .
