HVAC Control Assembly Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

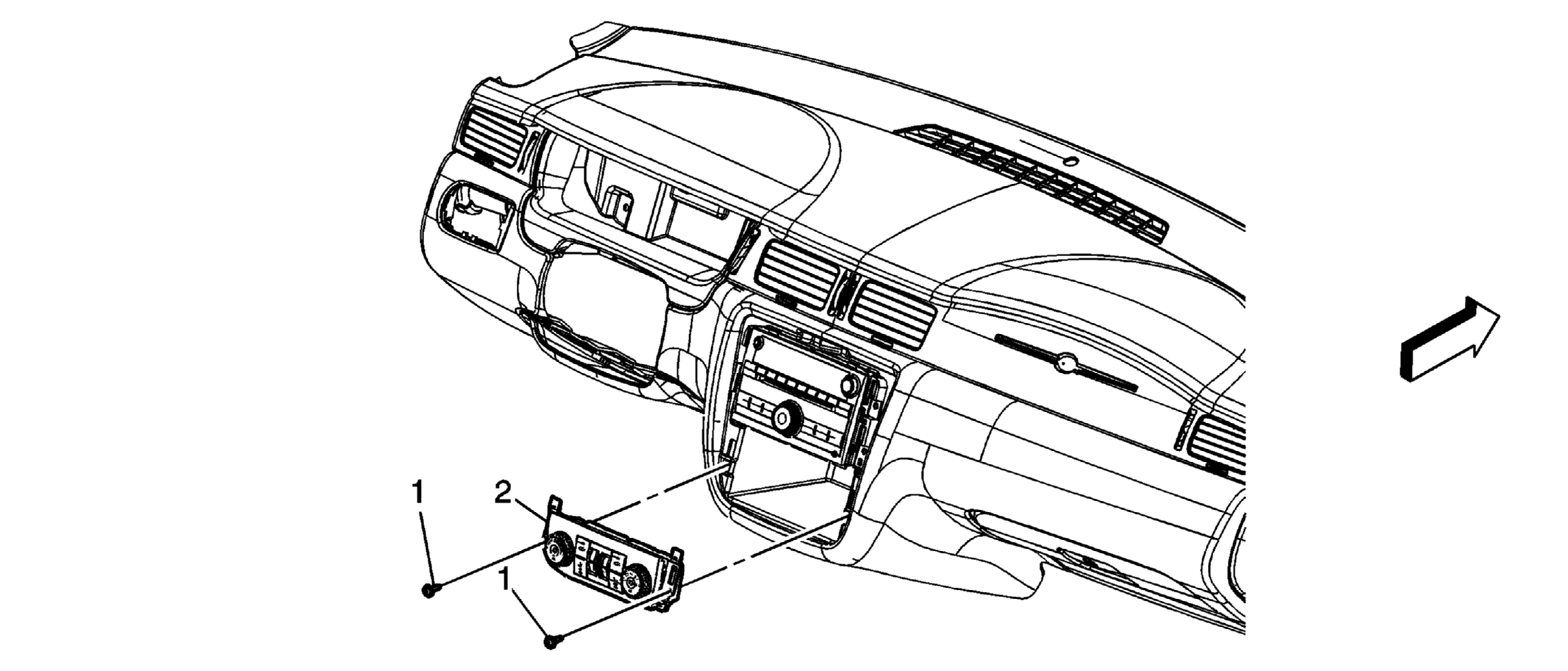

Fig 1: Replacing HVAC Control Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory (Impala) or Trim Plate Replacement - Instrument Panel (I/P) Accessory (Monte Carlo) .
1	Screw, Heater and A/C Control Assembly (Qty: 2) Tip: Disconnect the HVAC control assembly electrical connector. Tighten: 1.5 N.m (13 lb in)
2	Control Assembly, Heater and Air Conditioning
