Installation Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

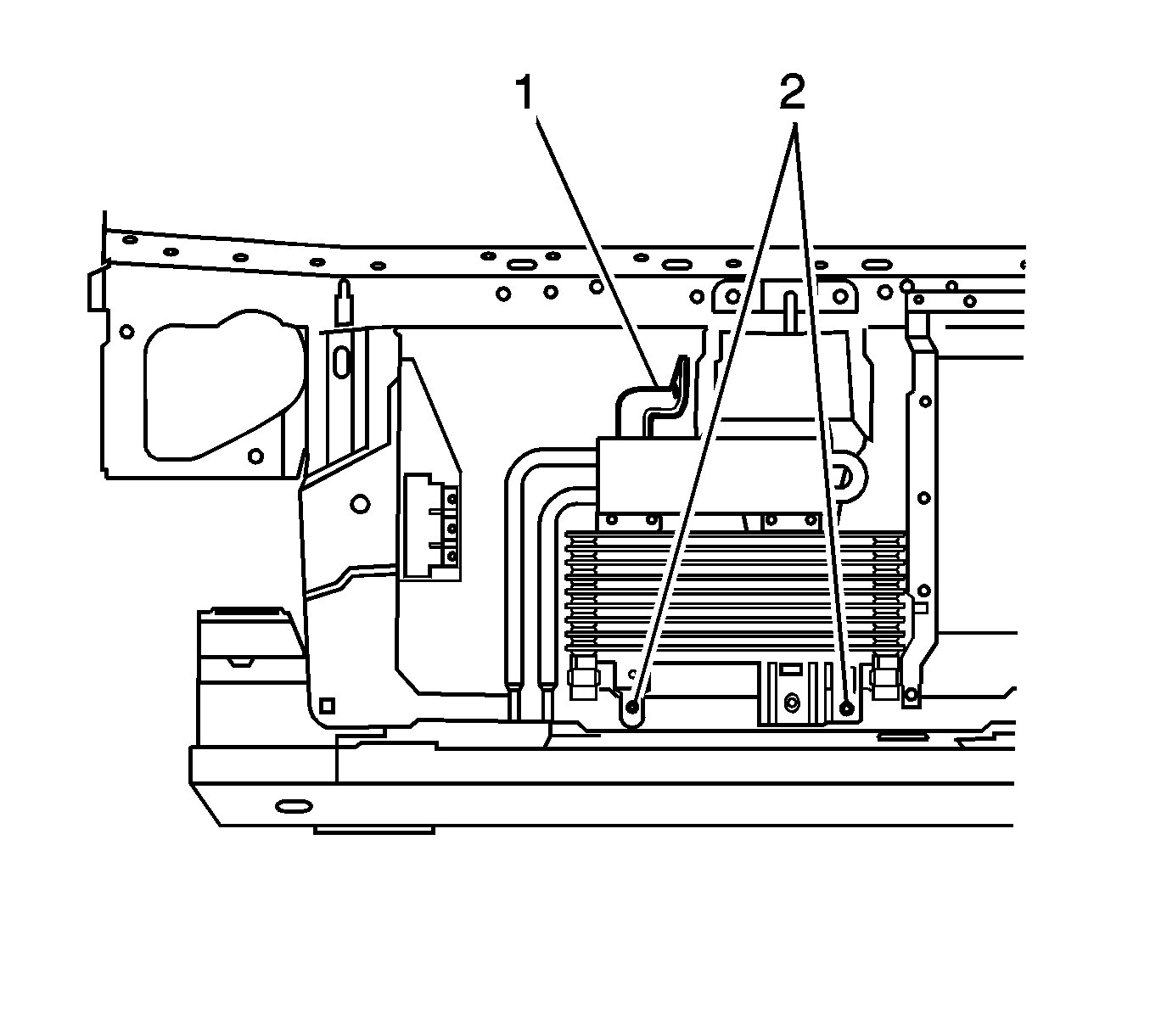

    Fig 1: Locating Engine Oil Cooler/Power Steering Cooler Bolts
    GM1247672Courtesy of GENERAL MOTORS CORP.
  1. Install the engine oil cooler/power steering cooler to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the upper bolt (1) to the engine oil cooler/power steering cooler bracket.

    Tighten:  Tighten the bolt to 2 N.m (18 lb in).

  3. Install the lower bolts (2) to the engine oil cooler/power steering cooler bracket.

    Tighten:  Tighten the bolts to 2 N.m (18 lb in).

  4. Install the engine oil cooler lines to the engine oil cooler. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .
  5. Install the power steering oil cooler lines to the power steering cooler.
  6. Reposition the hose clamps on the power steering cooler lines.
  7. Install the support clip to the engine oil cooler lines.
  8. Install the right engine splash shield. Refer to Splash Shield Replacement - Engine - Right .
  9. Install the lower air baffle. Refer to Radiator Air Baffle and Deflector Replacement - Lower .
  10. Install the upper air baffle. Refer to Radiator Air Baffle and Deflector Replacement - Upper .
  11. Add the proper amount of engine oil and power steering fluid.
