Wiper Blade Element Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

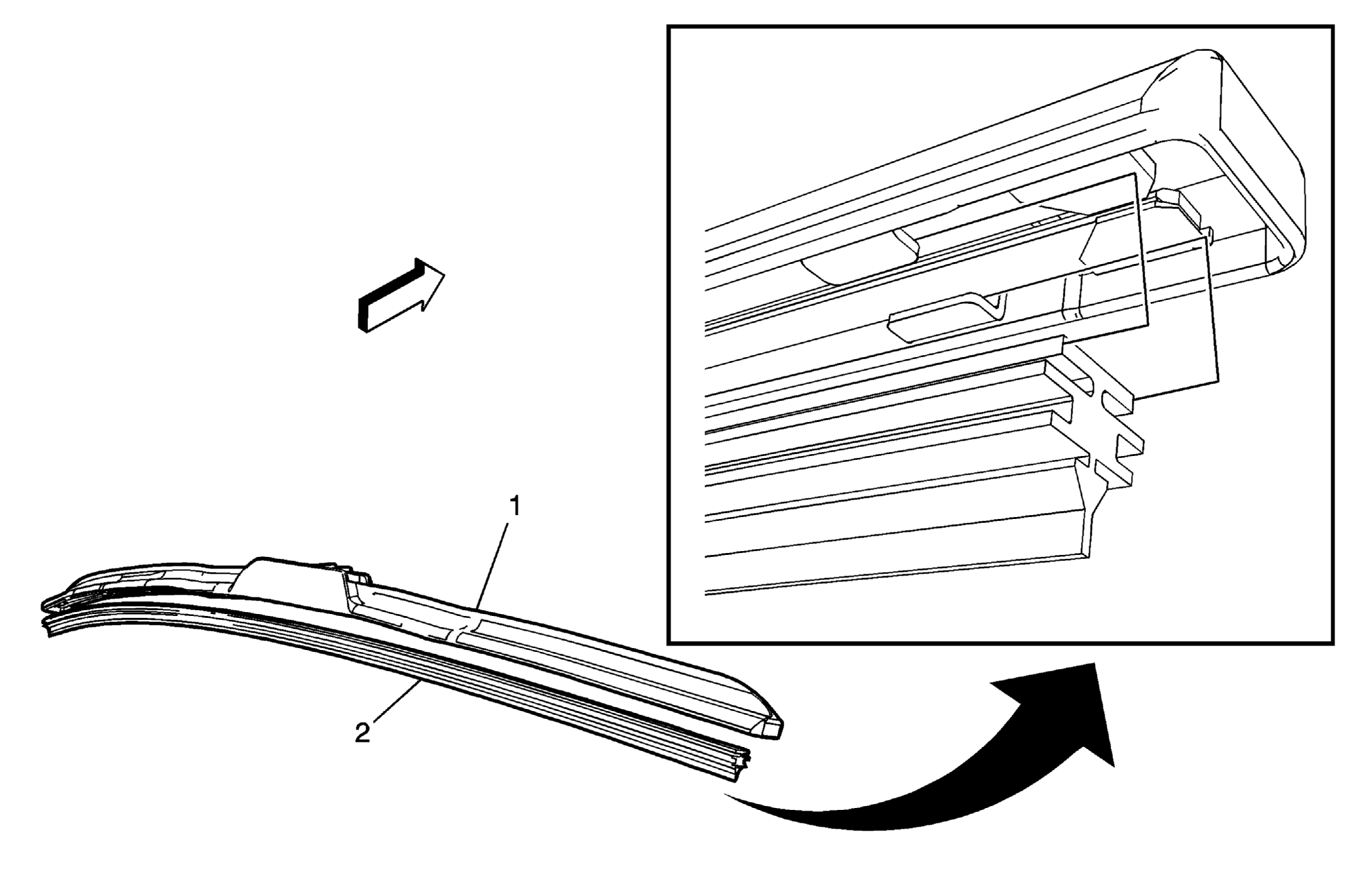

Fig 1: Replacing Wiper Blade Element

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Position the wiper blade at a mid-wipe on the windshield. Cycle the ignition key to the OFF position. Raise the wiper blade off the glass.
1	Blade Assembly, Windshield Washer
2	Element Assembly, Windshield Washer Tip: With a small pair of needle-nose pliers, secure the end of the wiper element and pull outward from the wiper blade claws in order to remove the element.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Position the wiper blade at a mid-wipe on the windshield.
Cycle the ignition key to the OFF position.
Raise the wiper blade off the glass.

Blade Assembly, Windshield Washer

Element Assembly, Windshield Washer
Tip: With a small pair of needle-nose pliers, secure the end of the wiper element and pull outward from the wiper blade claws in order to remove the element.
