Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

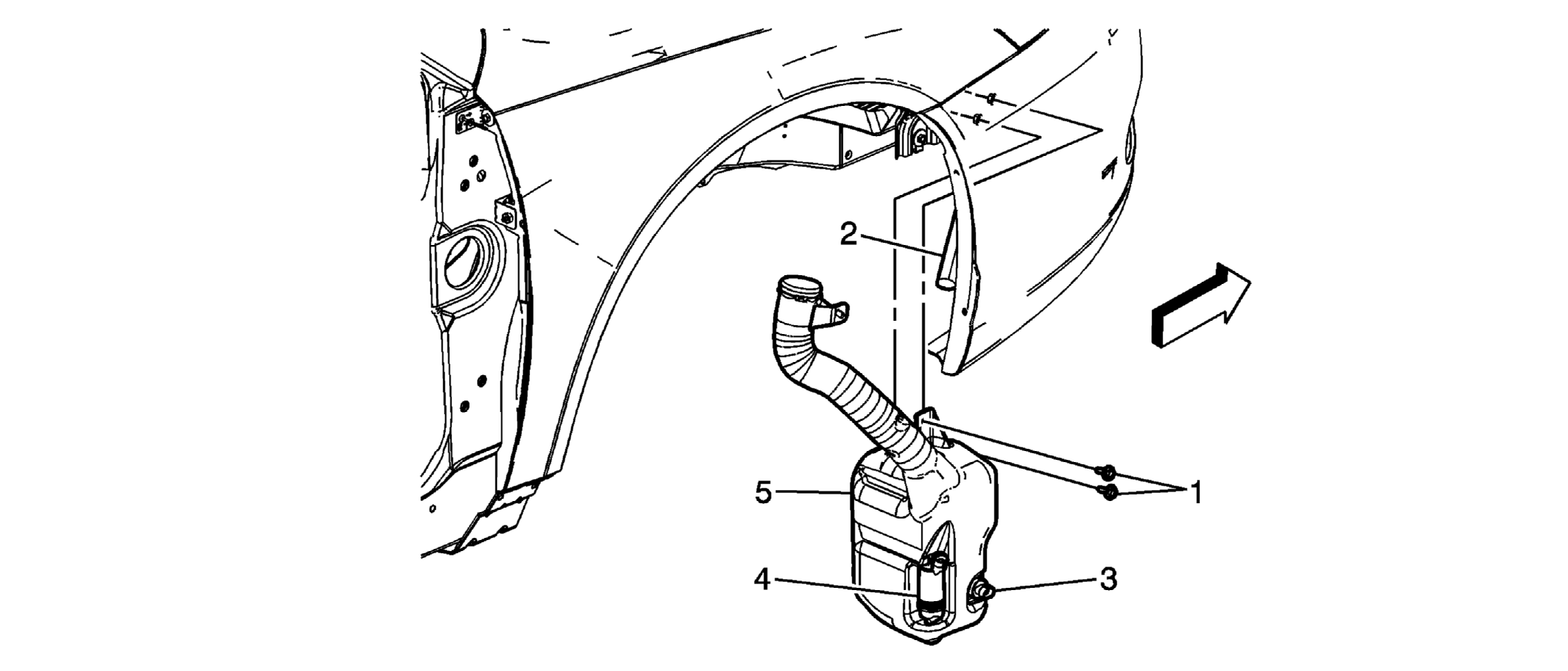

Fig 1: Replacing Washer Solvent Container

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the right front wheelhouse panel liner. Refer to Front Fender Liner Replacement . Disconnect the electrical connector from the windshield washer solvent level sensor switch. Disconnect the electrical connector at the windshield washer pump. Lower the vehicle. Remove the push pin for the filler neck from the RF fender flange. Remove the washer solvent container filler cap.
1	Windshield Washer Solvent Container Bolts (Qty: 2) Tighten: 6 N.m (53 lb in) Tip: Transfer the cap and lower mounting bracket on the container to the new washer solvent container.
2	Windshield Washer Pump Hose Assembly Tip: Disconnect the hose from the windshield washer pump spout and drain washer solvent into a suitable clean container.
3	Windshield Washer Level Sensor Switch
4	Windshield Washer Pump Tip: Discard old grommet and replace with a new grommet. Transfer the old pump to the new container.
5	Windshield Washer Container Assembly Tip: Lower the windshield washer container from RH chassis rail in between the RF fender bracket and bumper fascia.
