Washer Pump Replacement
WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP. Washer Pump Replacement

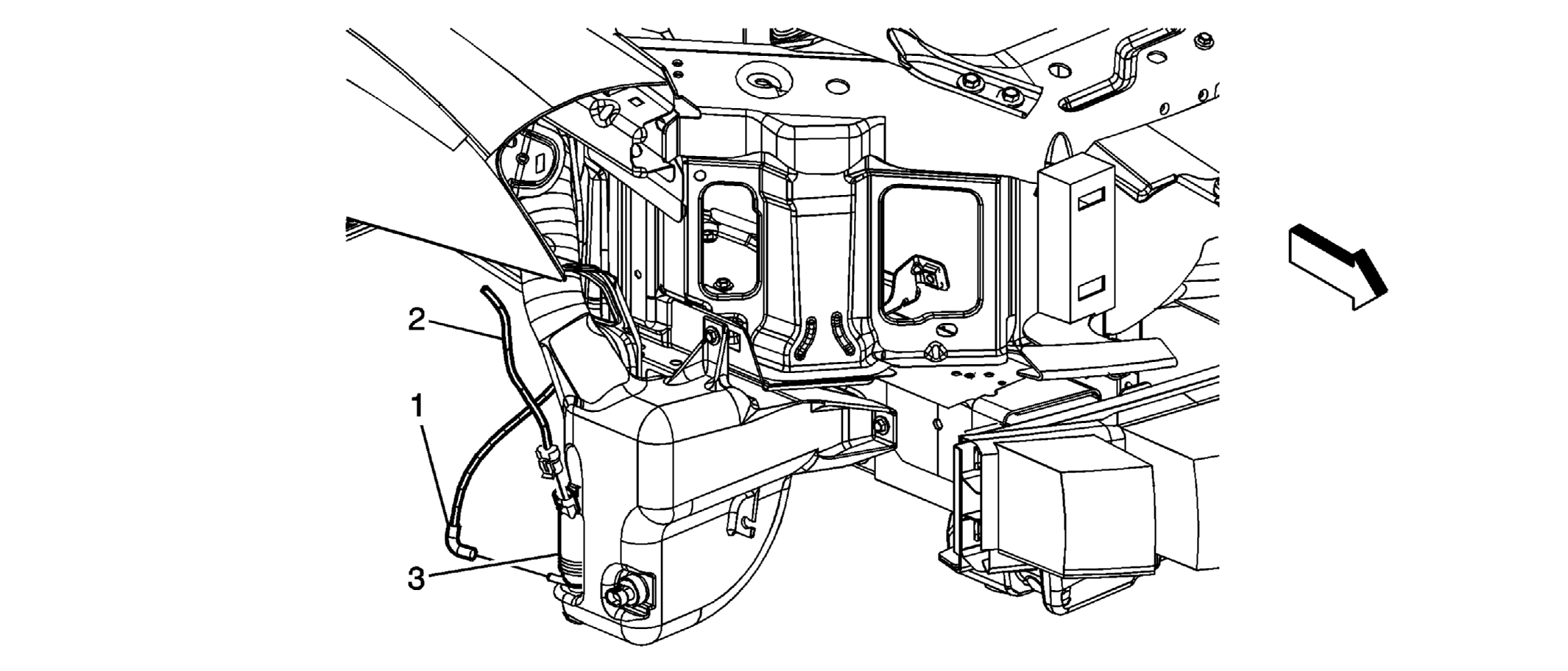

| Callout |
Component Name |
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedures
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Remove the right front wheelhouse panel liner. Refer to Front Fender Liner Replacement
.
- Drain the washer solvent into a suitable clean container.
|
| 1 |
Hose, Windshield Washer Pump |
| 2 |
Connector, Washer Pump Electrical
Tip:
Disconnect and position out of the way. |
| 3 |
Pump, Windshield Washer Tip
- Use two flat-bladed tools and pry upward in order to release the washer pump from the washer solvent container grommet.
- Discard the old washer pump grommet.
- Install a new grommet into the washer solvent container prior to installing the new washer pump.
- Lubricate the new grommet with straight washer fluid.
- Secure the new pump to the washer solvent container.
|
