Front Seat Back Panel Replacement (Impala)
WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

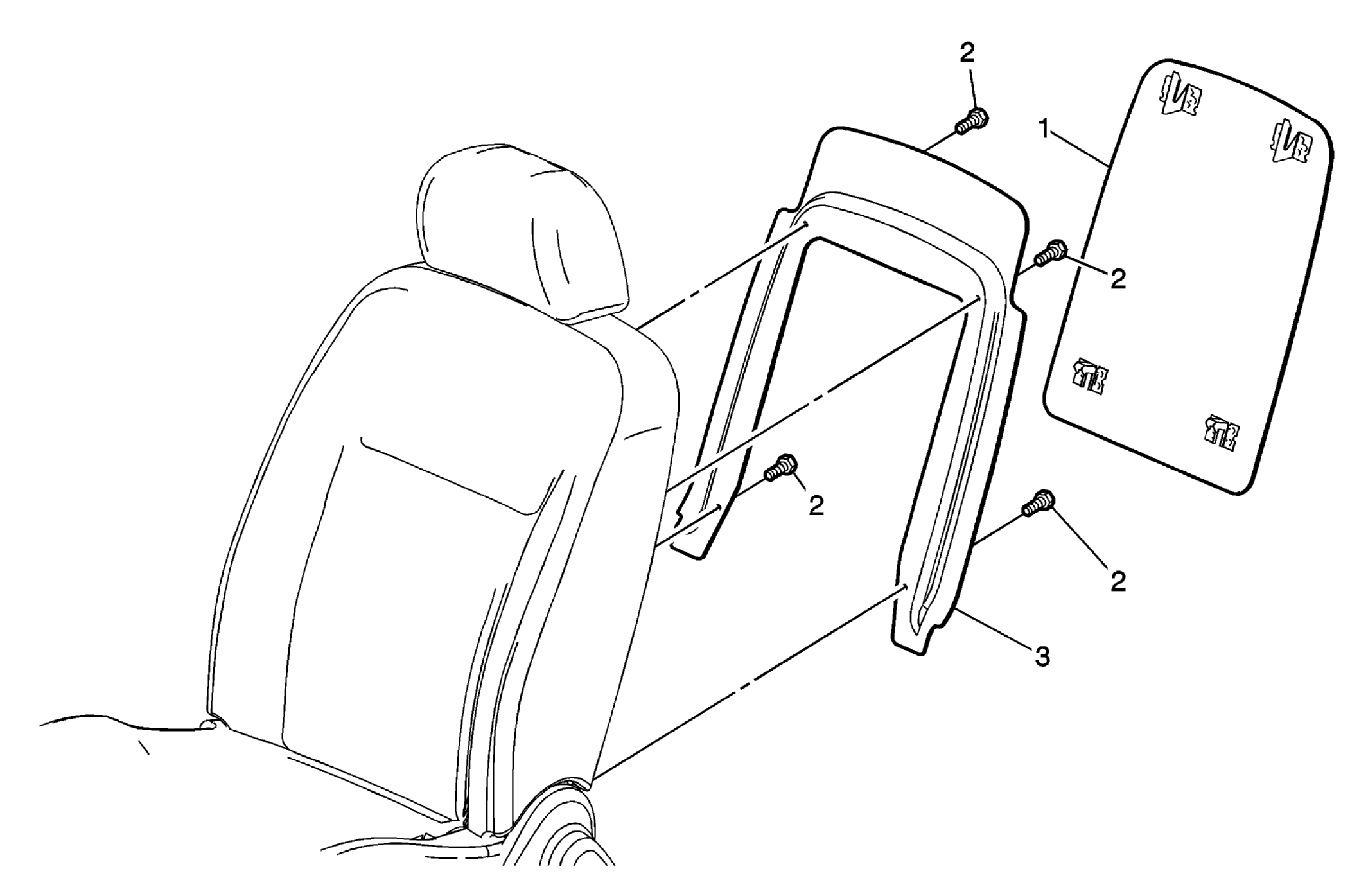

Seat Back Panel Replacement - Front (Impala)
| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Panel, Seat Back Cushion Finish Tip: Push upward and pull back at the bottom edge of the seat back panel to release the lower edge and then pull down to remove. |
| 2 | Retainer, Seat Back Cushion Rear Finish (Qty: 4) |
| 3 | Panel, Seat Back Cushion Rear Finish |
