Front Heated Seat Control Module Replacement (Monte Carlo)

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

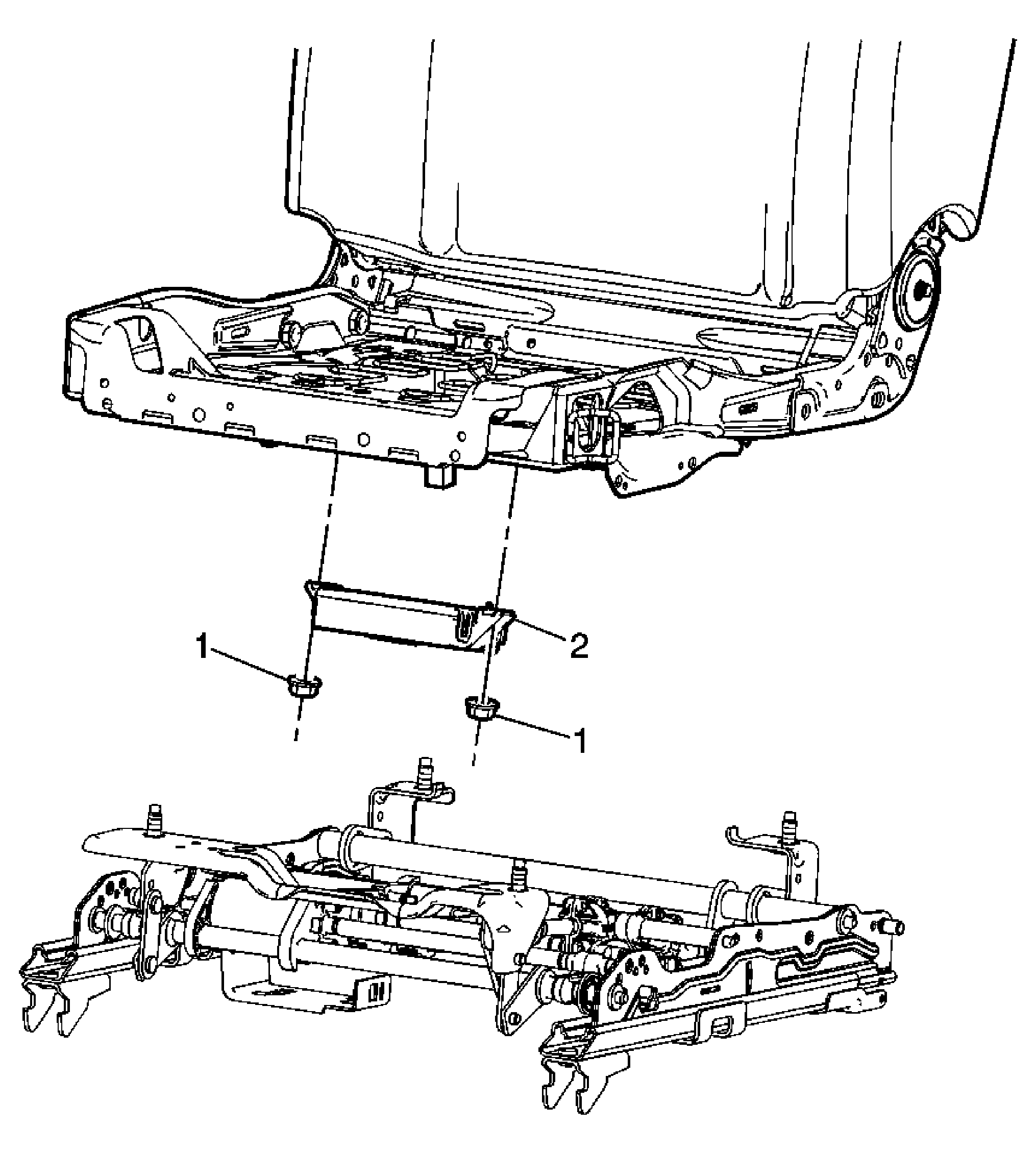

Fig 1: Replacing Front Heated Seat Control Module

Courtesy of GENERAL MOTORS CORP.

Heated Seat Control Module Replacement - Front (Monte Carlo)

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR system if working on the passenger seat. Refer to SIR Disabling and Enabling Zone 7 and SIR Disabling and Enabling Zone 9 (Monte Carlo) or SIR Disabling and Enabling Zone 9 (Impala) . Remove the front seat. Refer to Seat Replacement - Front Bucket (Impala) or Seat Replacement - Front Bucket (Monte Carlo) . Remove the front seat adjuster. Refer to Seat Adjuster Replacement - Front (Impala) or Seat Adjuster Replacement - Front (Monte Carlo) .
1	Nut, Front Seat Heater Control Module (Qty: 2) Tighten: 3 N.m (25 lb in)
2	Module, Front Seat Heater Control Tip: Disconnect the electrical connector.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Disable the SIR system if working on the passenger seat. Refer to SIR Disabling and Enabling Zone 7 and SIR Disabling and Enabling Zone 9 (Monte Carlo) or SIR Disabling and Enabling Zone 9 (Impala) .
Remove the front seat. Refer to Seat Replacement - Front Bucket (Impala) or Seat Replacement - Front Bucket (Monte Carlo) .
Remove the front seat adjuster. Refer to Seat Adjuster Replacement - Front (Impala) or Seat Adjuster Replacement - Front (Monte Carlo) .

Nut, Front Seat Heater Control Module (Qty: 2)

Tighten: 3 N.m (25 lb in)

Module, Front Seat Heater Control
Tip: Disconnect the electrical connector.
