Lower Center Pillar Trim Panel Replacement

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

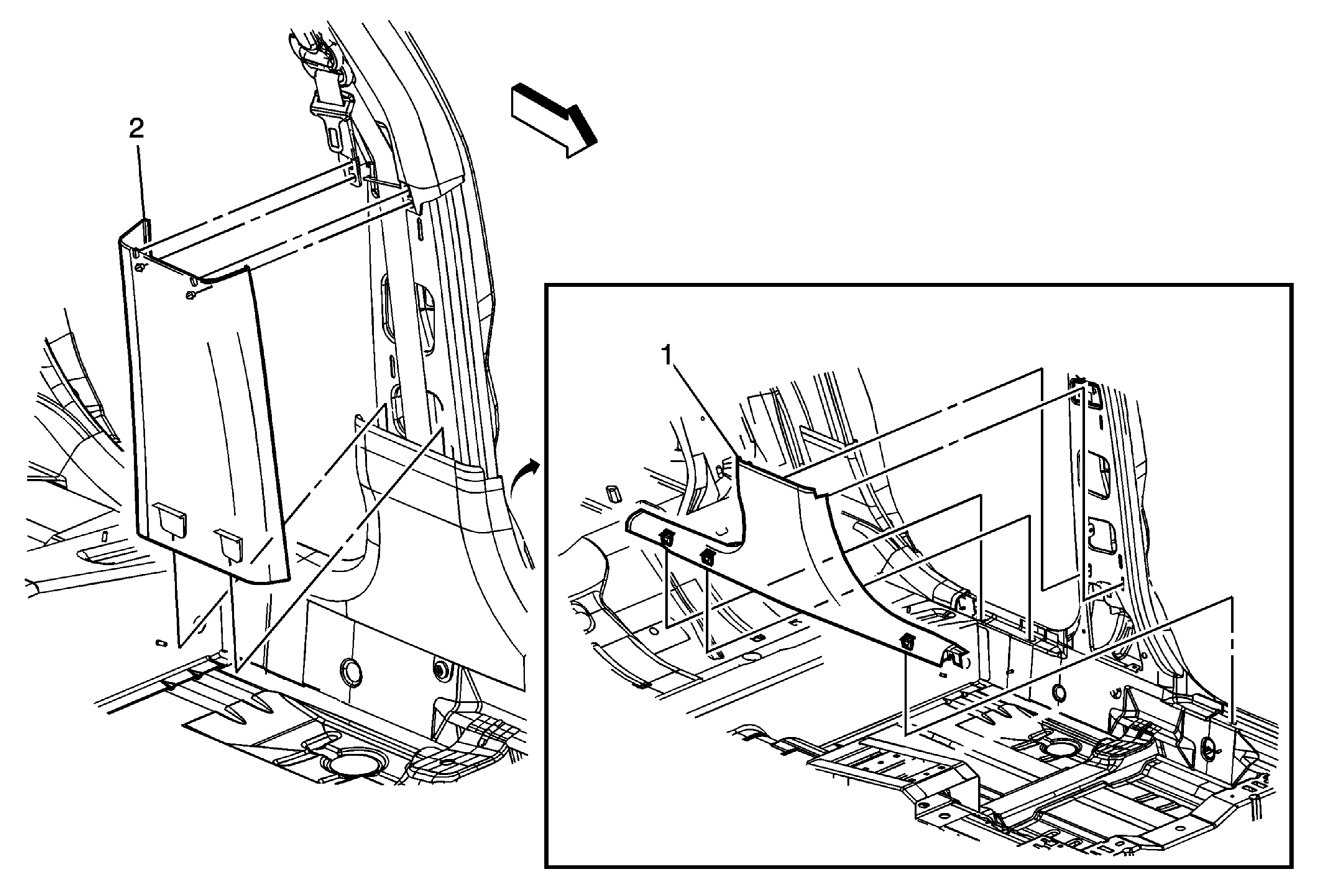

Fig 1: Replacing Lower Center Pillar Trim Panel

Courtesy of GENERAL MOTORS CORP.

Trim Panel Replacement - Lower Center Pillar

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front and Rear Side Door Floor Carpet Retainer
2	Center Pillar Upper Trim Panel
3	Center Pillar Trim Retainer Clip
